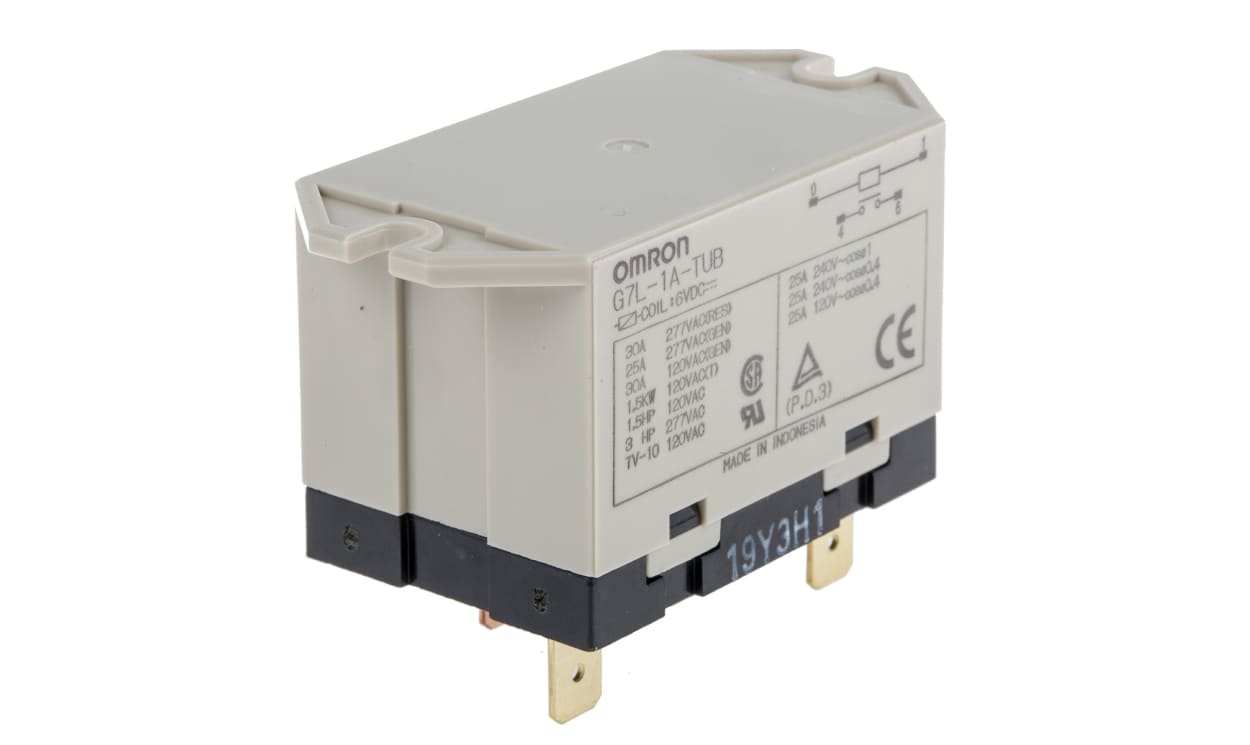

Name: Omron G7L-1A-TUB 6DC, Panel Mount Power Relay, 6V dc Coil, 30A Switching Current, SPST
Brand: OMRON
SKU: G7L-1A-TUB 6DC
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G7L-1A-TUB 6DC, Panel Mount Power Relay, 6V dc Coil, 30A Switching Current, SPST

Part Number : G7L-1A-TUB 6DC

Availability: Sold out

Detailed Description
Specifications

PCB Mounting & Plug-in - Power Relays - G7L Series

Relay compatible with momentary voltage drops up to 50% of rated voltage
High capacity and high dielectric strength
Flame-resistance UL94V-0 insulation material
Choice of connection types available - quick-connect or PCB terminals
Suitable DIN rail/surface socket (Front connecting socket) and relay mounting clip (E-bracket) available separately for use with quick-connect types G7L-1A-T and G7L-2A-T (not to be used with G7L-1A-TUB and G7L-2A-TUB upper bracket mount types)

Approvals

UL; CSA; TÜV

Brand	Omron
Coil Voltage	6V dc
Contact Configuration	SPST
Mounting Type	Panel Mount
Switching Current	30A
Number of Poles	1
Series	G7L
Latching	No
Terminal Type	Quick Connect
Length	68.5mm
Coil Resistance	18.9Ω
Height	47mm
Depth	33.5mm
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-25°C
Maximum Switching Power AC	6.6 kVA
Application	General Purpose
