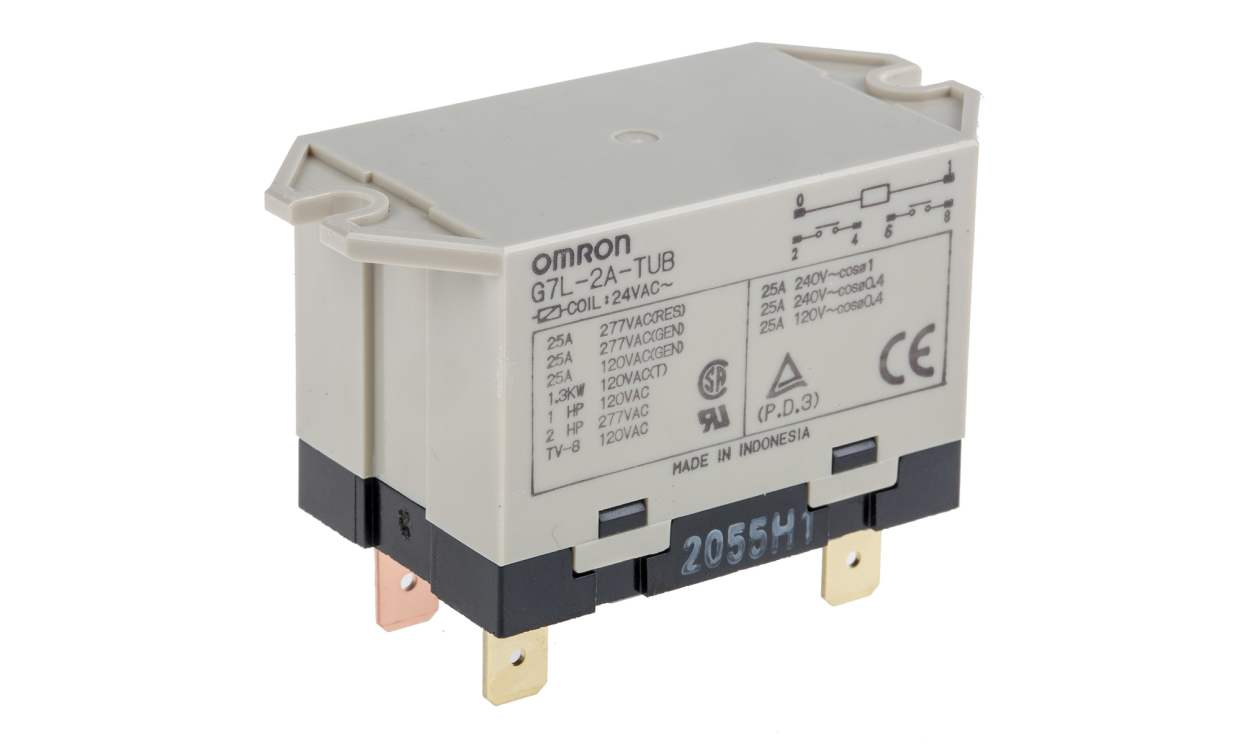

Omron G7L-2A-TUB AC24, Panel Mount Power Relay, 24V ac Coil, 25A Switching Current, DPST

Name: Omron G7L-2A-TUB AC24, Panel Mount Power Relay, 24V ac Coil, 25A Switching Current, DPST
Brand: OMRON
SKU: G7L-2A-TUB AC24
Availability: OutOfStock

Part Number : G7L-2A-TUB AC24

Availability: Sold out

Detailed Description
Specifications
Downloads

PCB Mounting & Plug-in - Power Relays - G7L Series

Relay compatible with momentary voltage drops up to 50% of rated voltage
High capacity and high dielectric strength
Flame-resistance UL94V-0 insulation material
Choice of connection types available - quick-connect or PCB terminals
Suitable DIN rail/surface socket (Front connecting socket) and relay mounting clip (E-bracket) available separately for use with quick-connect types G7L-1A-T and G7L-2A-T (not to be used with G7L-1A-TUB and G7L-2A-TUB upper bracket mount types)

Approvals

UL; CSA; TÜV

Brand	Omron
Coil Voltage	24V ac
Contact Configuration	DPST
Mounting Type	Panel Mount
Switching Current	25A
Number of Poles	2
Series	G7L
Latching	No
Terminal Type	Quick Connect
Length	68.5mm
Depth	33.5mm
Height	47mm
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-25°C
Maximum Switching Power AC	5.5 kVA
Application	General Purpose
