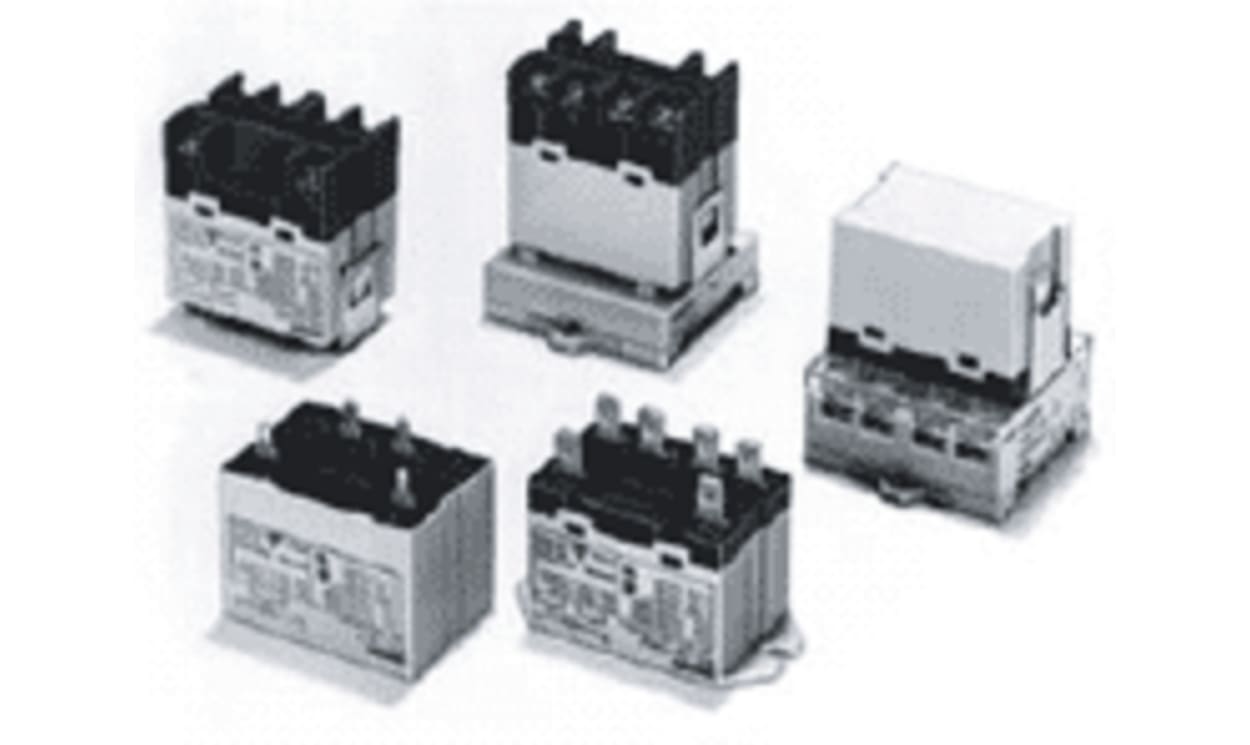

Omron G7L-2A-TUBJ DC12, Chassis Mount Power Relay, 12V dc Coil, DPST

Name: Omron G7L-2A-TUBJ DC12, Chassis Mount Power Relay, 12V dc Coil, DPST
Brand: OMRON
SKU: G7L-2A-TUBJ DC12
Availability: OutOfStock

Part Number : G7L-2A-TUBJ DC12

Availability: Sold out

Detailed Description
Specifications
Downloads

The Omron power relay is a high-capacIty, high-dielectric-strength relay compatible wIth momentary voltage drops. NO contact chattering for momentary voltage drops up to 50% of rated voltage.

Wide-range AC-activated coil that handles 100 to 120 or 200 to 240 VAC at either 50 or 60 Hz
Miniature size for maximum switching power, particularly for inductive loads
Flame-resistance materials (UL94V-0-qualifying) used for all insulation material
Quick-connect, screw, and PCB terminals, and DIN track mounting available
Conforms to UL, CSA, TUV and meets IEC950
Safety design with contact gap of 3 mm

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	DPST
Mounting Type	Chassis Mount
Number of Poles	1
Latching	No

Omron G7L-2A-TUBJ DC12, Chassis Mount Power Relay, 12V dc Coil, DPST
