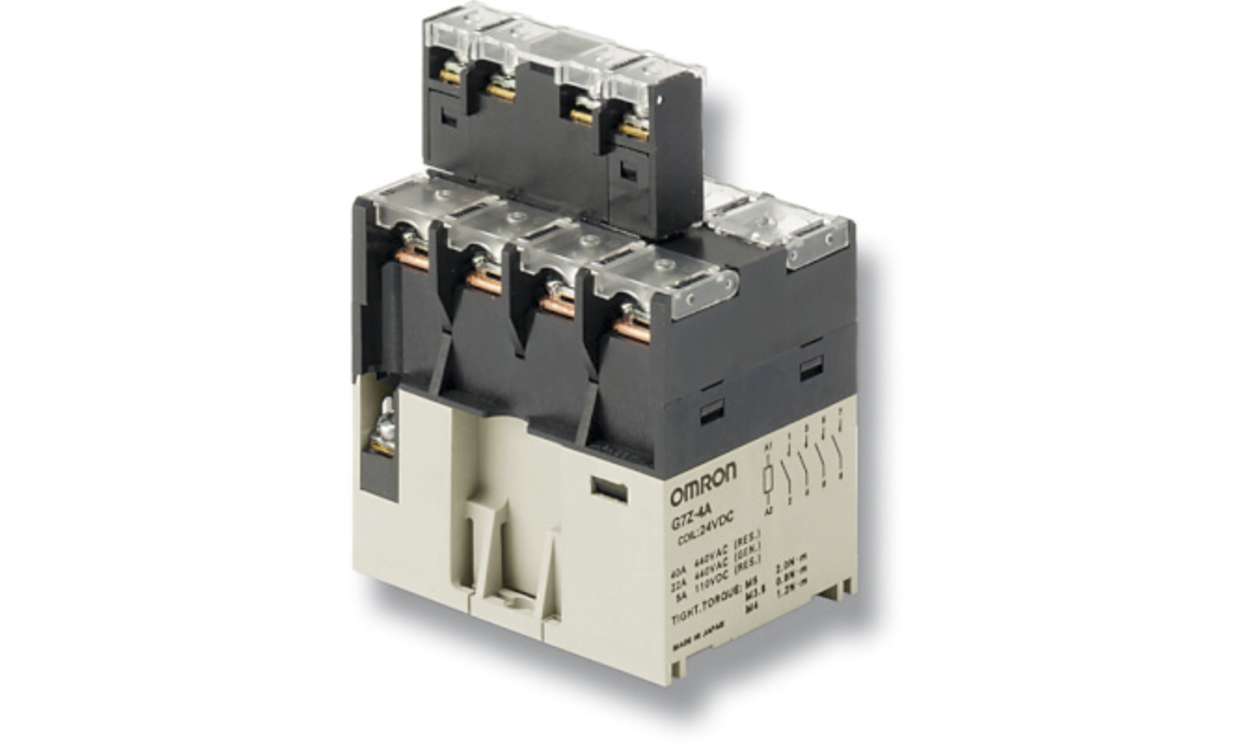

Name: Omron G7Z-4A-11Z-R 12VDC, Chassis Mount Power Relay, 12V dc Coil, 40 (AC) A, 5 (DC) A Switching Current
Brand: OMRON
SKU: G7Z-4A-11Z-R 12VDC
Availability: OutOfStock

Omron G7Z-4A-11Z-R 12VDC, Chassis Mount Power Relay, 12V dc Coil, 40 (AC) A, 5 (DC) A Switching Current

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G7Z-4A-11Z-R 12VDC, Chassis Mount Power Relay, 12V dc Coil, 40 (AC) A, 5 (DC) A Switching Current

Part Number : G7Z-4A-11Z-R 12VDC

Availability: Sold out

Detailed Description
Specifications

G7Z series provides a compact, cost efficient solution for applications such as inverters, UPS, solar and fuel-cell battery circuits. Coil ratings are available in 12 and 24 VDC. Power consumption is less than 4 watts.

Switching current 160 A (40 A rating / 4-pole / IEC-AC1)
Switching voltage 440 VAC
Safety function with mirror contacts in various configurations
Power consumption less than 4 Watts
Low Switching Noise (70 dB)

Brand	Omron
Coil Voltage	12V dc
Mounting Type	Chassis Mount
Switching Current	40 (AC) A, 5 (DC) A
Number of Poles	4
Series	G7Z
Latching	No
Terminal Type	Crimp
Maximum Switching Voltage AC	480V ac
Maximum Switching Voltage DC	125V dc
Maximum Switching Current AC	40 A
Maximum Switching Current DC	5 A
Length	45mm
Coil Power	3.7W
Contact Material	Silver Alloy
Life	1000000 (Minimum) operations
Depth	92.2mm
Minimum Operating Temperature	-25°C
Height	62mm
Maximum Operating Temperature	+60°C
