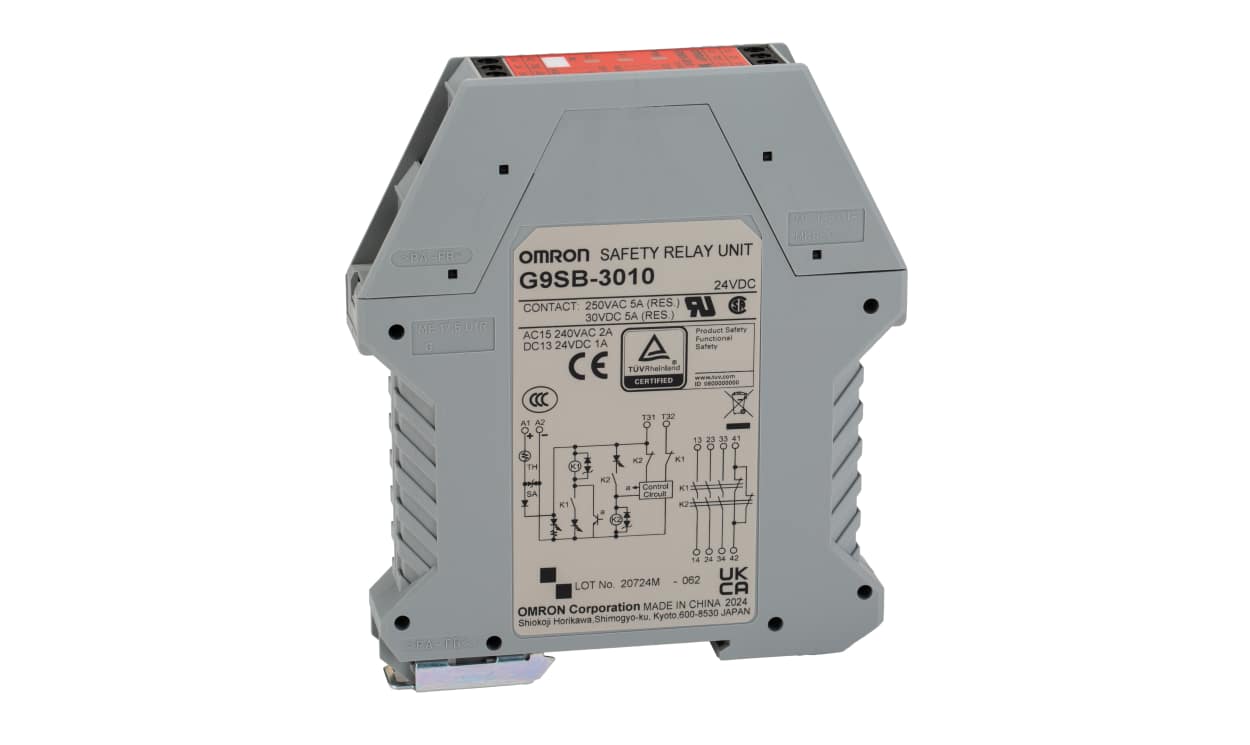

Omron G9SB-3010 DC24, G9SB 1 Auxiliary Contacts Safety Relay 24V dc, Dual-Channel 3 Safety Contacts

Part Number : G9SB-3010 DC24

Availability: Sold out

Detailed Description
Specifications

G9SB, Safety Relays, Ultra Slim

The Omron G9SB series is an ultra slim safety relay available in either a 17.5mm or 22.5mm housing. The 17.5mm units have 2 or 3 safety contacts and the 22.5mm units have 3 safety contacts and an auxiliary contact.

1 and 2 input channel units
Manual and automatic reset units
Certification up to category 4 according to EN954-1 (depending on the application)
Can also be used with safety sensors F3SN, F3SH, F3S-B, F3STGR, F3SL, F3S-J
Conforms to EN standards (TUV approval)

Note

When ordering take note of the safety reset mode that is required: Models G9SB**A and G9SB ** B = Auto Reset operation; Models G9SB ** D = Manual Reset operation

Approvals

EN954-1, EN60204-1, UL508, CSA C22.2 No. 14

Omron G9SB Series Safety Relay, 24 V DC Supply Voltage, 2 Number of Channels - G9SB-3010 DC24

This safety relay provides essential protection in automation systems, designed primarily for emergency stop applications. With a supply voltage of 24V DC, this relay efficiently controls safety circuits, guaranteeing operational integrity in critical environments. The unit features an ultra-slim design, measuring 112mm in depth, 100mm in length, and 18mm in width, ideal for confined spaces.

Features & Benefits

• Dual channels enhance system safety with 2-channel operation
• Performance Level e relay ensures compliance with safety standards
• Three safety contacts provide reliable emergency stop functionality
• Auxiliary contact simplifies additional circuit control requirements
• Conforms to ISO 13849-1 safety category for dependable operation
• DIN rail mounting facilitates straightforward installation

Applications

• Utilised with safety sensors for industrial automation
• Ideal for emergency stop in various machinery
• Compatible with multiple input configurations for versatility
• Used in requiring reliable safety control solutions

What input configurations are available for this relay?

The relay supports 1-channel or 2-channel input configurations, accommodating flexible safety setups. Depending on the model, it allows for both direct breaking and dual-channel inputs.

How does this relay enhance safety compliance?

This unit meets ISO 13849-1 safety standards, particularly Safety Category 3, ensuring that safety-critical applications are reliably protected against potential hazards.

What is the typical operating time for this relay?

The maximum operating time for the main contact opening following an input turn-off is 30 milliseconds, providing swift response to safety demands.

What are the electrical characteristics of this product?

The relay is rated for a resistive load of 250 VAC at 5A, coupled with an insulation resistance of at least 100 MΩ, ensuring robust electrical performance.

How can this relay contribute to a safer working environment?

By providing reliable emergency stop capabilities and supporting safety circuits, it significantly enhances overall safety in industrial and mechanical applications.

Brand	Omron
Supply Voltage	24V dc
Number of Channels	2
Safety Contacts	3
Function	Emergency Stop
Auxiliary Contacts	1
Safety Category ISO 13849-1	3
PL ISO 13849-1	e
Depth	112mm
Series	G9SB
Width	18mm
Performance Level	e
Length	100mm
