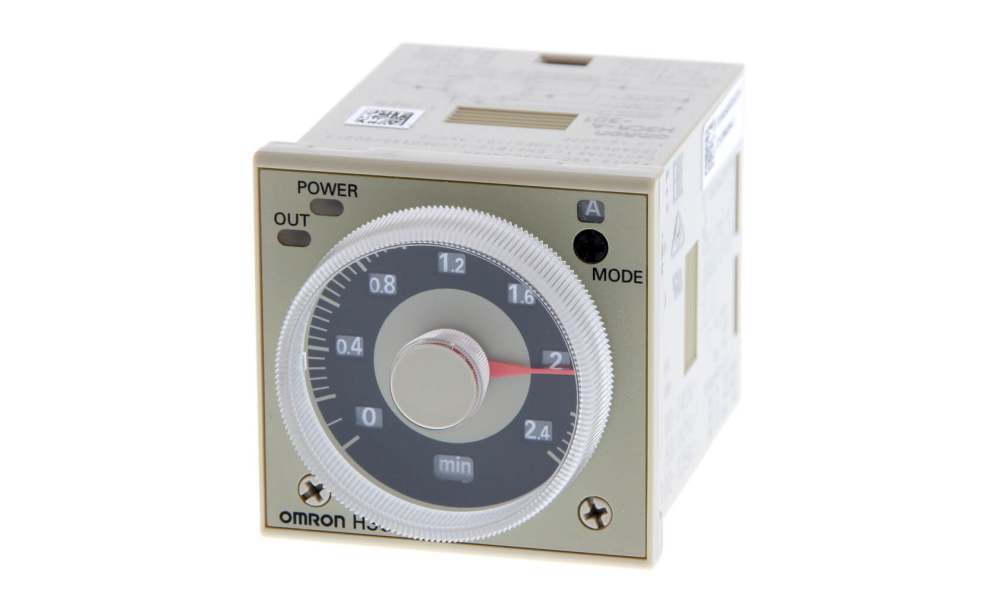

Omron H3CR-A 100-240VAC/100-125VDC, H3CR Series DIN Rail, Panel Mount Timer Relay, 100 → 125 V dc, 100 → 240V ac, 2-Contact, 0.05 s

Name: Omron H3CR-A 100-240VAC/100-125VDC, H3CR Series DIN Rail, Panel Mount Timer Relay, 100 → 125 V dc, 100 → 240V ac, 2-Contact, 0.05 s
Brand: OMRON
SKU: H3CR-A 100-240VAC/100-125VDC
Availability: OutOfStock

Part Number : H3CR-A 100-240VAC/100-125VDC

Timer, plug-in, 11-pin, DIN 48 x 48 mm, multifunction, 0.05 s-300 h, DPDT, 5 A, 100 to 240 VAC, 100-125VDC

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

OMRON Timer Relay, 48 (H) x 48 (W) x 81.6mm (D), 0.1s Time Delay - H3CR Series - H3CR-A AC100-240/DC100-125

Ensure your machine control is always prompt with this timer relay from OMRON. It's a handy multitasker that combines a solid-state relay and multifunction timer in one unit, so you can adjust the delay between 0.05 seconds and 300 hours for flexibility. The unit's capable of up to six different on and off-delay operations, including signal on/off delay and flicker start. This makes it well-suited to devices that need precise control such as lighting fixtures.

Features & Benefits

• Resistant to shock and vibration for reliable use in harsh conditions
• Compatible with DIN rail, surface and flush mounting for flexible installation
• Maximum power-opening time of 0.1s for quick resets
• Integrated LED indicators give you convenient status control

Applications

• Printing presses
• Packaging facilities
• Scientific laboratories
• Industrial automation

How accurate is this relay?

Thanks to a maximum opening time accuracy of ±0.2%FS, you can be sure this relay will keep to time with minimal errors.

What's the mechanical lifespan of this relay?

A mechanical lifespan of 20 million operations means you can trust this durable relay to deliver long-term operation with minimal downtime.

Brand	Omron
Supply Voltage	100 → 125 V dc, 100 → 240V ac
Mounting Type	DIN Rail, Panel Mount
Mode of Operation	Flicker OFF Start, Flicker ON Start, Interval, OFF Delay, ON Delay, ON/OFF Delay, One Shot Output
Time Range	0.05 s → 300h
Number of Contacts	2
Number of Timer Functions	Multi Function
Time Increment	Hours, Seconds
Maximum Current	5A
Maximum Voltage	125 V dc, 250V ac
Terminal Type	11-Pin Connector
Switch Configuration	DPDT
Width	48mm
Power Supply	External
Minimum Voltage	100V
Series	H3CR
Maximum Operating Temperature	+55°C
Length	48mm
Depth	81.6mm
Minimum Operating Temperature	-10°C

Timer, plug-in, 11-pin, DIN 48 x 48 mm, multifunction, 0.05 s-300 h, DPDT, 5 A, 100 to 240 VAC, 100-125VDC
