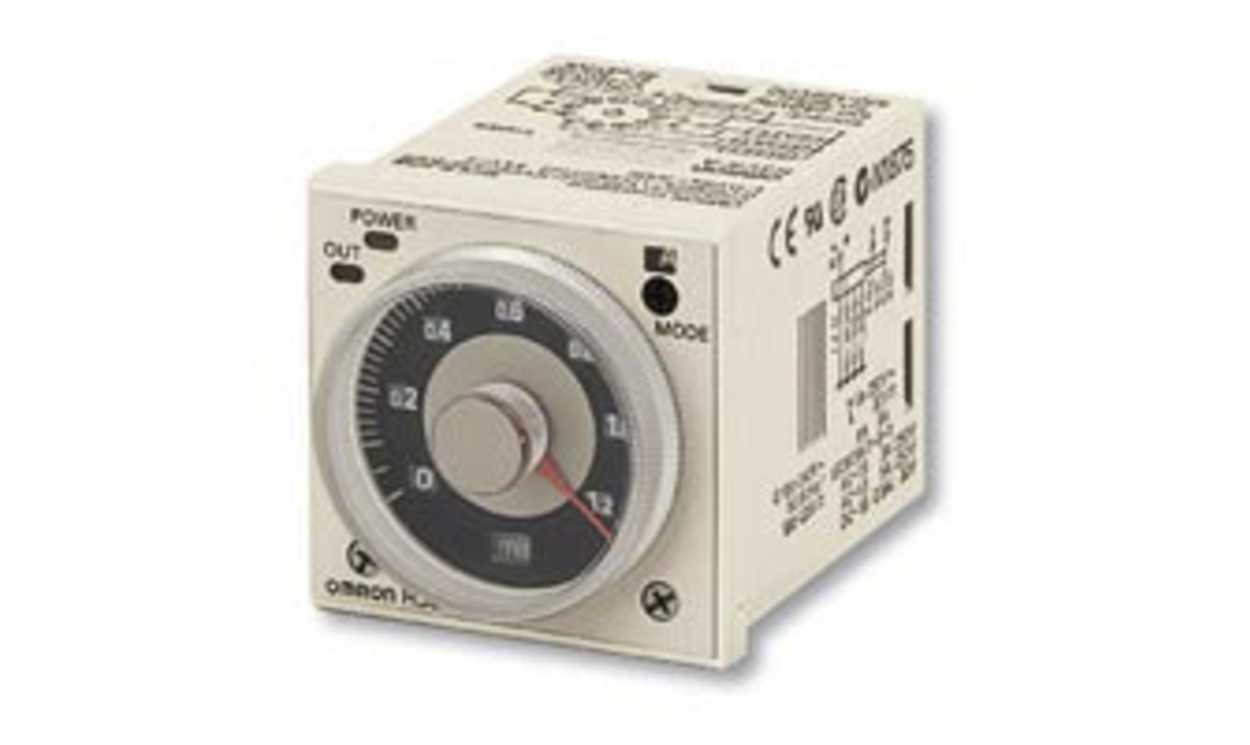

Omron H3CR-AS AC24-48/DC12-48, H3CR Series DIN Rail Mount Timer Relay, 12 → 48 V dc, 24 → 48V ac, 0.05 s → 300h

Name: Omron H3CR-AS AC24-48/DC12-48, H3CR Series DIN Rail Mount Timer Relay, 12 → 48 V dc, 24 → 48V ac, 0.05 s → 300h
Brand: OMRON
SKU: H3CR-AS AC24-48/DC12-48
Availability: OutOfStock

Part Number : H3CR-AS AC24-48/DC12-48

Availability: Sold out

Detailed Description
Specifications

Omron Timer Relay

The Omron H3CR series multifunction timer relay has multiple operating modes. There are eight modes for 11-pin models and five modes for 8-pin models. It has an ON delay timer along with 2 changeover contacts and is DIN rail mount. The relay requires a supply voltage ranging between 12VDC to 48VDC and 24VAC to 48VAC along with a maximum current rating of 100mA. It has an adjustable time range between 0.05sec and 300hours.

Features and Benefits

• Crimp terminal type
• Easy sequence checking with instantaneous outputs for a zero set value
• Ecological design with reduced current consumption
• Operating temperature ranges between -10°C and 55°C

Applications

• Industrial application
• Timing control

Certifications

• CSA approved
• IEC60664
• UL approved

Brand	Omron
Supply Voltage	12 → 48 V dc, 24 → 48V ac
Mounting Type	DIN Rail
Mode of Operation	ON Delay
Time Range	0.05 s → 300h
Number of Timer Functions	Multi Function
Time Increment	Hours, Minutes, Seconds
Maximum Current	0.1A
Maximum Voltage	48V ac/dc
Terminal Type	Crimp
Minimum Voltage	12 V dc, 24V ac
Power Supply	Internal
Width	48mm
Depth	81.6mm
Series	H3CR
Maximum Operating Temperature	+55°C
Length	48mm
Minimum Operating Temperature	-10°C
