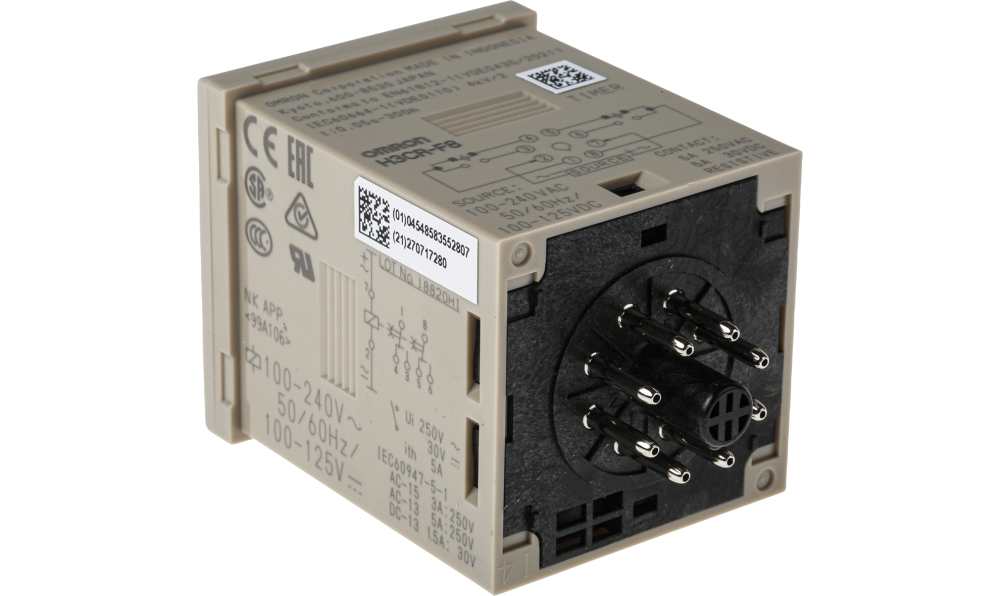

Omron H3CR-F8 100-240VAC/100-125VDC, H3CR Series DIN Rail, Panel Mount Timer Relay, 100 → 240V ac, 2-Contact, 0.05 s → 300 h,

Name: Omron H3CR-F8 100-240VAC/100-125VDC, H3CR Series DIN Rail, Panel Mount Timer Relay, 100 → 240V ac, 2-Contact, 0.05 s → 300 h,
Brand: OMRON
SKU: H3CR-F8 100-240VAC/100-125VDC
Availability: OutOfStock

Part Number : H3CR-F8 100-240VAC/100-125VDC

Timer, plug-in, 8-pin, 1/16DIN (48 x 48 mm), twin on & off-delay, flicker OFF start, 0.05s-300h, DPDT, 5A, 100 to 240 VAC, 100-125VDC

Availability: Sold out

Detailed Description
Specifications
Features

Solid State Asymmetric Recycler

1/16 DIN solid state analogue setting asymmetric recycling timers with 8-pin octal style plug-in connections

Timing function 651, 652
12 setting ranges cover a wide span of 0.05s to 30h
Independent long or short ON/OFF time settings are possible
Wide power supply range 100 to 240Vac
Both OFF start and ON start functions available

OMRON Timer Relay, 8-Pin Connector, Plug-In Terminals - H3CR Series - H3CR-F8 AC100-240

Plan the switching of your equipment to the second with this timer relay from OMRON. It has an analogue clock that's configured with an adjustable knob, giving you time-based control of your machine. The unit features 12 setting ranges and a wide span between 0.5s and 30h. This makes it a versatile workmate for process control applications, such as managing heating and cooling setups or setting the opening time of an irrigation system. Thanks to plug-in terminals, you don't need special tools to install this relay, saving time and hassle. With an operating voltage range between 100 and 240V AC, it's the right choice for low-voltage settings.

Features & Benefits

• 5kV impulse withstand voltage means it handles power spikes without experiencing damage
• Mechanical life expectancy of 20 million operations assures you of long-term performance
• Operates in -10°C to +55°C temperatures, making it a safe choice for demanding conditions
• Light weight of 90g means it's easy to handle during installation

Applications

• Measurement and instrumentation devices
• Process and packaging industry
• Robotics systems

Is this relay finger-safe?

Yes, its IP40 rating indicates that it's protected from objects larger than 1mm in size, like your fingers.

Brand	Omron
Supply Voltage	100 → 240V ac
Mounting Type	DIN Rail, Panel Mount
Mode of Operation	Flicker OFF
Time Range	0.05 s → 300 h
Number of Contacts	2
Number of Timer Functions	Single
Contact Configuration	DPST
Time Increment	Hours, Seconds
Maximum Current	5A
Maximum Voltage	30 V dc, 250V ac
Switch Configuration	DPDT
Terminal Type	8-Pin Connector
Power Supply	External
Width	48mm
Maximum Operating Temperature	+55°C
Length	48mm
Depth	84mm
Series	H3CR
Contact Material	Ag Alloy

Timer, plug-in, 8-pin, 1/16DIN (48 x 48 mm), twin on & off-delay, flicker OFF start, 0.05s-300h, DPDT, 5A, 100 to 240 VAC, 100-125VDC
