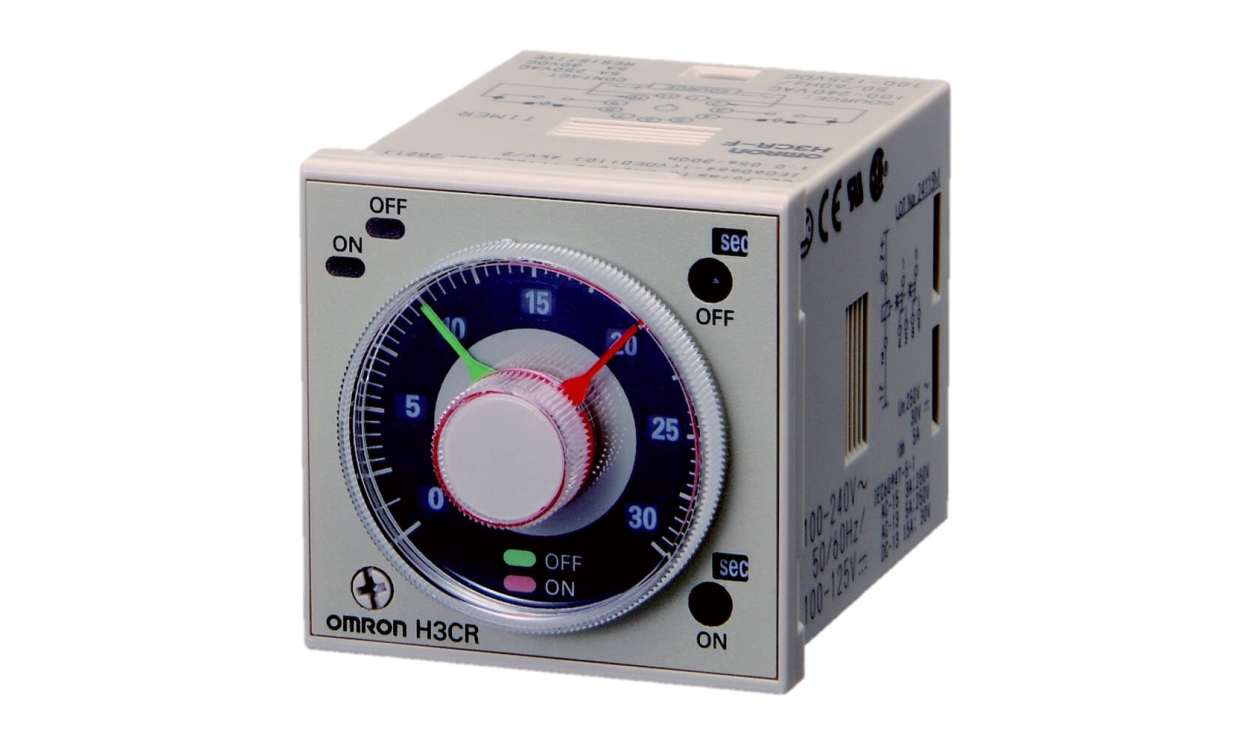

OMRON H3CR-F8N AC100-240/DC100-125 | Timer Relay | 0.05 s-30 h, 100-125 V DC, 100-240 V AC, DPDT

Name: OMRON H3CR-F8N AC100-240/DC100-125 | Timer Relay | 0.05 s-30 h, 100-125 V DC, 100-240 V AC, DPDT
Brand: OMRON
SKU: H3CR-F8N AC100-240/DC100-125
Availability: OutOfStock

Part Number : H3CR-F8N AC100-240/DC100-125

OMRON's H3CR-F8N AC100-240/DC100-125 timer relay runs on 100 to 125 V DC, 100 to 240 V AC and provides timing over 0.05 s to 30 h; its specified operating mode is flicker-on start.

Contact configuration: DPDT, 5 A maximum
Mounting: DIN rail
Connection: crimp
Size: 48 x 48 mm
Maximum switching voltage: 125 V DC, 240 V AC
Operating temperature: up to +55 °C

Availability: in stock

Detailed Description
Specifications
Downloads

Omron H3CR Series Timer Relay, DPDT Contact Configuration, 0.05s to 30h Time Range - H3CR-F8N AC100-240/DC100-125

This timer relay facilitates versatile automation applications, allowing for precise control of electrical devices. It supports both AC and DC inputs, making it a valuable component for automation and electrical professionals. The flicker ON start mode enhances operational flexibility, particularly for timed processes.

Features & Benefits

• Dual supply voltage support enables varied installation options
• Time range adjustable from 0.05 seconds to 30 hours
• Multi-function capability enhances versatility
• DPDT contact configuration provides greater control
• Crimp terminal type ensures secure wiring connections

Applications

• Sequential control in manufacturing processes
• Control of lights and signalling equipment
• Commonly used in HVAC systems for time management
• Automating machine start-up and shutdown sequences

What types of voltage inputs are compatible?

It accommodates both 100 to 125 V DC and 100 to 240 V AC inputs.

Can it be mounted in various locations?

Yes, it is designed for DIN rail mounting for convenient installation.

Is this suitable for high-temperature environments?

It can operate effectively at temperatures up to +55°C.

What is the maximum current it can handle?

The device can manage a maximum current of 5A.

Brand	Omron
Supply Voltage	100 → 125 V dc, 100 → 240V ac
Mounting Type	DIN Rail
Mode of Operation	Flicker ON Start
Time Range	0.05 s → 30h
Number of Contacts	2
Number of Timer Functions	Multi Function
Contact Configuration	DPDT
Time Increment	Hours, Minutes, Seconds
Maximum Current	5A
Maximum Voltage	125 V dc, 240V ac
Switch Configuration	DPDT
Terminal Type	Crimp
Width	48mm
Power Supply	External
Minimum Voltage	100V ac/dc
Depth	84mm
Minimum Current	10mA
Length	48mm
Maximum Operating Temperature	+55°C
