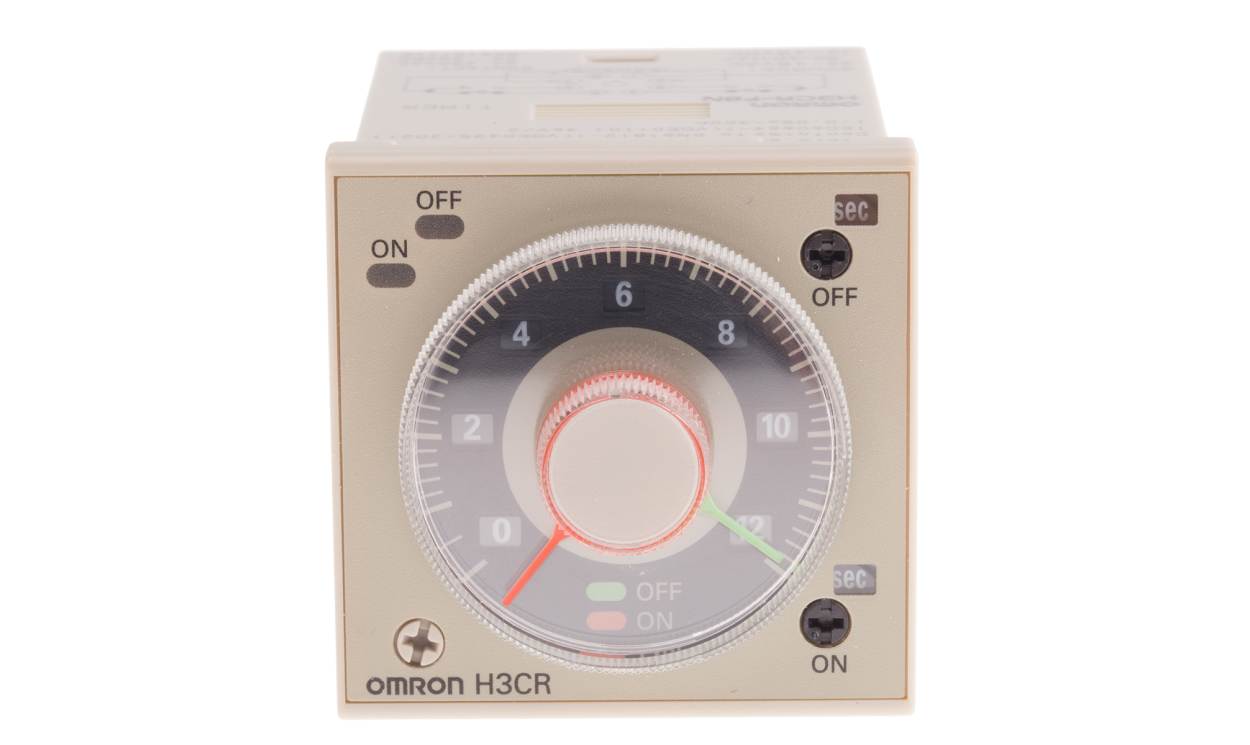

Name: Omron H3CR-F8N AC24-48/DC12-48, H3CR Series DIN Rail Mount Timer Relay, 24 → 48V ac, 2-Contact, 0.05 s → 300 h, DPDT
Brand: OMRON
SKU: H3CR-F8N AC24-48/DC12-48
Availability: OutOfStock

Omron H3CR-F8N AC24-48/DC12-48, H3CR Series DIN Rail Mount Timer Relay, 24 → 48V ac, 2-Contact, 0.05 s → 300 h, DPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron H3CR-F8N AC24-48/DC12-48, H3CR Series DIN Rail Mount Timer Relay, 24 → 48V ac, 2-Contact, 0.05 s → 300 h, DPDT

Part Number : H3CR-F8N AC24-48/DC12-48

Availability: Sold out

Detailed Description
Specifications

Solid State Asymmetric Recycler

1/16 DIN solid state analogue setting asymmetric recycling timers with 8-pin octal style plug-in connections

Timing function 651, 652
12 setting ranges cover a wide span of 0.05s to 30h
Independent long or short ON/OFF time settings are possible
Wide power supply range 100 to 240Vac
Both OFF start and ON start functions available

Omron H3CR Series Timer Relay, DPDT Contact Configuration, 24 to 48V AC Supply Voltage - H3CR-F8N AC24-48/DC12-48

This timer relay serves as a versatile solution for automation control and time delay applications. Its compact size of 48x53mm enables easy integration into various environments. Operating with a supply voltage range of 24 to 48V AC, it offers a time range from 0.05 seconds to 300 hours, catering to diverse operational requirements while ensuring dependability in industrial settings.

Features & Benefits

• Multifunction capability accommodates various operational needs
• Flicker ON start mode provides precise timing control
• DPDT contact configuration allows for flexible circuit design
• Wide voltage range from 12V DC to 48V AC enhances adaptability
• Maximum operating temperature of +55°C ensures durability
• Designed for DIN rail mounting for simple installation

Applications

• Utilised in automation systems for timing functions
• Suitable for industrial processes needing time delay
• Implemented in HVAC systems for fan control
• Employed in machinery for sequential start-up procedures
• Ideal for electrical control panels in manufacturing

Will it fit on standard DIN rails?

Yes, it is specifically designed for DIN rail mounting.

Can it support multiple timing functions?

Yes, it has multifunction capability for various applications.

What is the minimum time range for operation?

The timer can operate with a minimum time of just 0.05 seconds.

Brand	Omron
Supply Voltage	24 → 48V ac
Mounting Type	DIN Rail
Mode of Operation	Flicker ON Start
Time Range	0.05 s → 300 h
Number of Contacts	2
Number of Timer Functions	Multi Function
Contact Configuration	DPDT
Time Increment	Hours, Minutes, Seconds
Maximum Voltage	48V ac/dc
Terminal Type	8-Pin Connector
Switch Configuration	DPDT
Minimum Voltage	12 V dc, 24V ac
Width	44.8mm
Series	H3CR
Maximum Operating Temperature	+55°C
Length	48mm
Depth	53mm
Minimum Operating Temperature	-10°C
