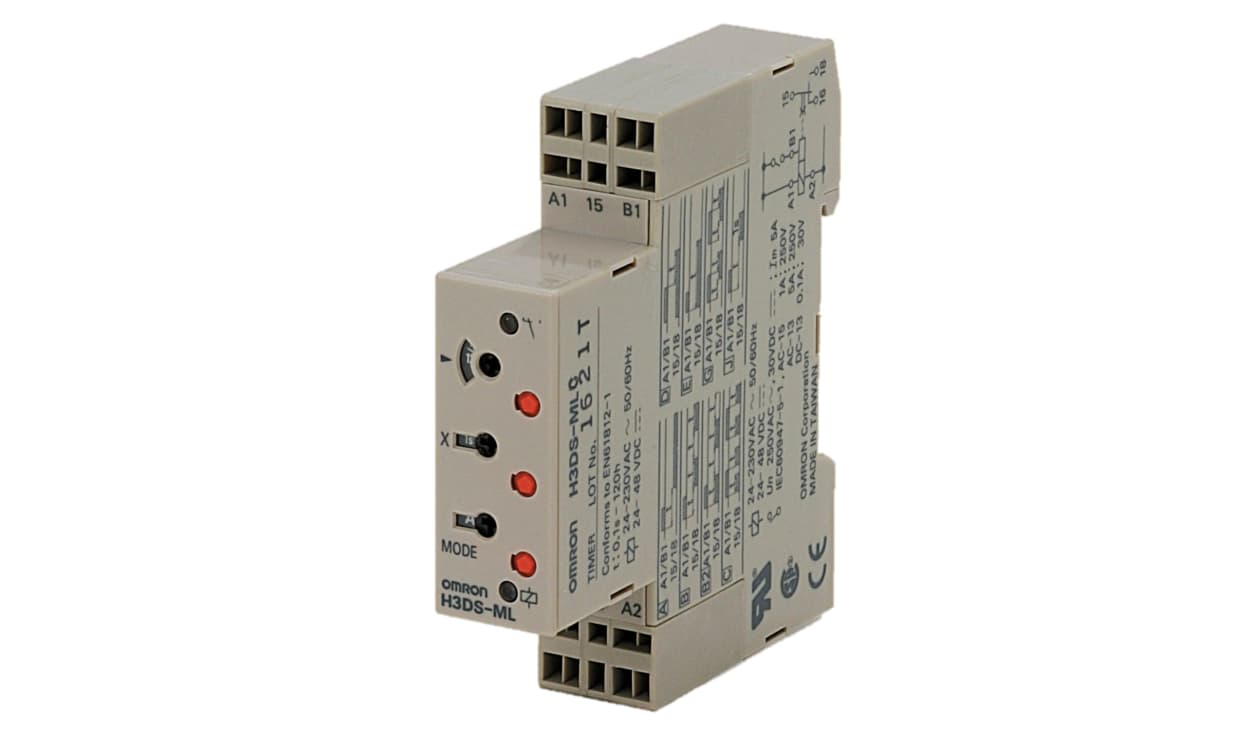

OMRON H3DS-MLC | DIN Rail On/Off-Delay Timer Relay | 24–230 V AC, 24–48 V DC, 0.1 s–120 h, SPDT

Name: OMRON H3DS-MLC | DIN Rail On/Off-Delay Timer Relay | 24–230 V AC, 24–48 V DC, 0.1 s–120 h, SPDT
Brand: OMRON
SKU: H3DS-MLC
Availability: OutOfStock

Part Number : H3DS-MLC

The OMRON H3DS-MLC is an H3DS series DIN rail on/off-delay timer relay with a 0.1 s to 120 h time range, powered from 24 to 230 V AC, 24 to 48 V DC. Further H3DS-MLC details: SPDT output and a 5 A maximum current rating.

Operating mode: ON/OFF Delay
Push-in terminals
Maximum operating temperature +55 °C

Availability: in stock

Detailed Description
Specifications
Downloads

Omron H3DS Series Timer Relay, SPDT Contact Configuration, 0.1s to 120h Time Range - H3DS-MLC

This timer relay is engineered for precise timing control in various automated processes. With supply voltage options ranging from 24V to 230V AC and 24V to 48V DC, it caters to a broad array of industrial applications. It supports ON/OFF delay operations, making it essential for effective machinery and automation.

Features & Benefits

• Multi-function capabilities enhance operational flexibility
• SPDT configuration ensures effective switching performance
• Push In terminal design simplifies installation
• Maximum current rating of 5A suits various applications

Applications

• Controls industrial machinery with delay intervals
• Suitable for time-based control in automation systems
• Ideal for sequential operations in electronic devices
• Utilised in HVAC systems for timed fan operations

How can the time range be adjusted for specific needs?

Adjustments can be made between 0.1 seconds and 120 hours.

Is this timer relay suitable for DIN rail mounting?

Yes, it is designed for easy installation on DIN rail systems.

What types of terminals does it feature for connections?

It has Push In terminals, ensuring straightforward wiring.

Can it function effectively in extreme temperatures?

Yes, it operates reliably within a temperature range of -10°C to +55°C.

Brand	Omron
Supply Voltage	24 → 230 V ac, 24 → 48V dc
Mounting Type	DIN Rail
Mode of Operation	ON/OFF Delay
Time Range	0.1 s → 120h
Number of Contacts	2
Number of Timer Functions	Multi Function
Contact Configuration	SPDT
Time Increment	Hours, Minutes, Seconds
Maximum Current	5A
Maximum Voltage	48 V dc, 230V ac
Terminal Type	Push In
Switch Configuration	SPDT
Minimum Voltage	24V ac/dc
Width	80mm
Power Supply	Internal
Series	H3DS
Maximum Operating Temperature	+55°C
Minimum Current	0.1A
Depth	74mm

OMRON H3DS-MLC | DIN Rail On/Off-Delay Timer Relay | 24–230 V AC, 24–48 V DC, 0.1 s–120 h, SPDT

DOWNLOAD CATALOG

H3DS-MLC Brochure - Screw-Less Clamp Solutions A700000012100939
