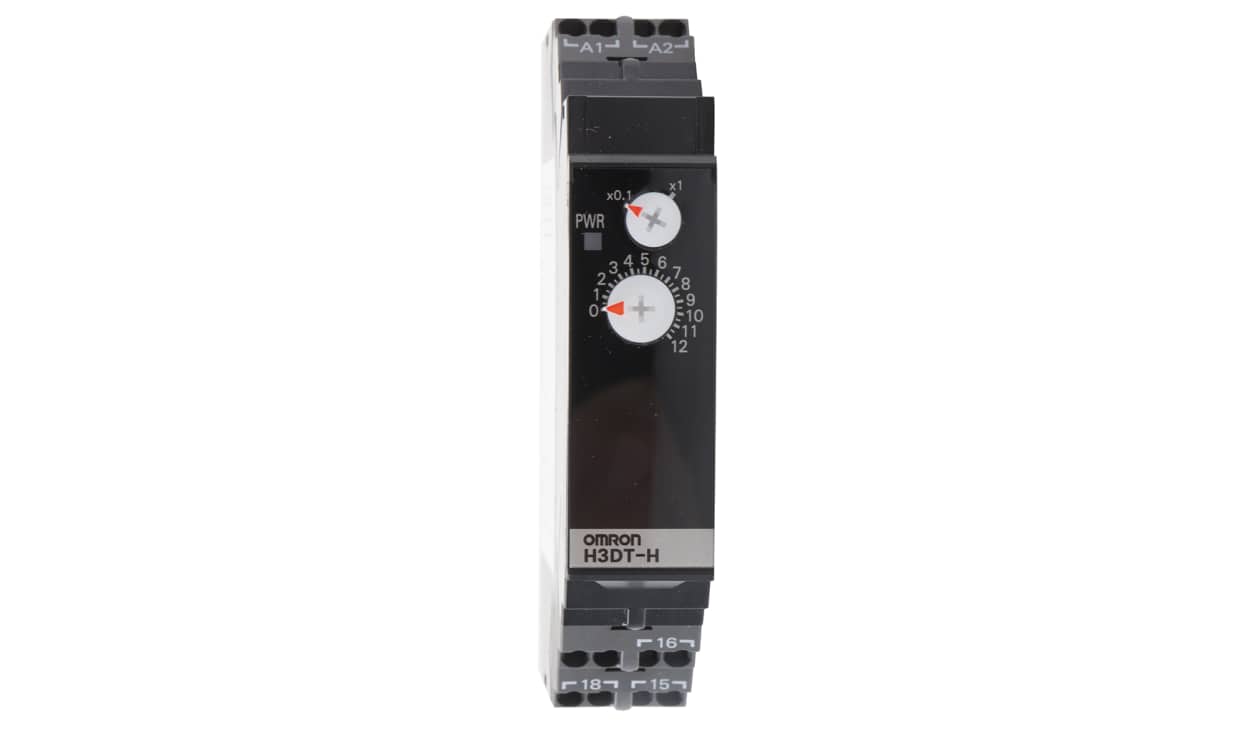

Omron H3DT-HCS 100-120VAC, H3DT Series DIN Rail Mount Timer Relay, 100 → 120V ac, 2-Contact, 1 → 120s, 1-Function, SPDT

Part Number : H3DT-HCS 100-120VAC

Availability: Sold out

Detailed Description
Specifications

H3DT-H Off Delay Timer

Solid-sate time delay relays with push in plus technology are used for in-panel applications. They are ideal in space saving applications due to their slim design and help reduce work in control panels. The timers reduce power consumption by up to 60% to help reduce heat generation in control panels.

• Off delay operating mode
• Slim design, 17.5 mm width
• Set two time ranges; 0.1 s to 12 s (S series), 1.0 s to 120 s (L series)
• Relay output
• Wide supply voltage range, depending on model
• DIN Rail mounting

Brand	Omron
Supply Voltage	100 → 120V ac
Mounting Type	DIN Rail
Mode of Operation	Power OFF Delay
Time Range	1 → 120s
Number of Contacts	2
Number of Timer Functions	Single
Contact Configuration	SPDT
Time Increment	Seconds
Maximum Current	5A
Maximum Voltage	30 V dc, 250V ac
Switch Configuration	SPDT
Terminal Type	Screw
Width	90mm
Power Supply	External
Maximum Operating Temperature	+60°C
Length	17.5mm
Series	H3DT
Depth	100mm
Minimum Operating Temperature	-20°C
