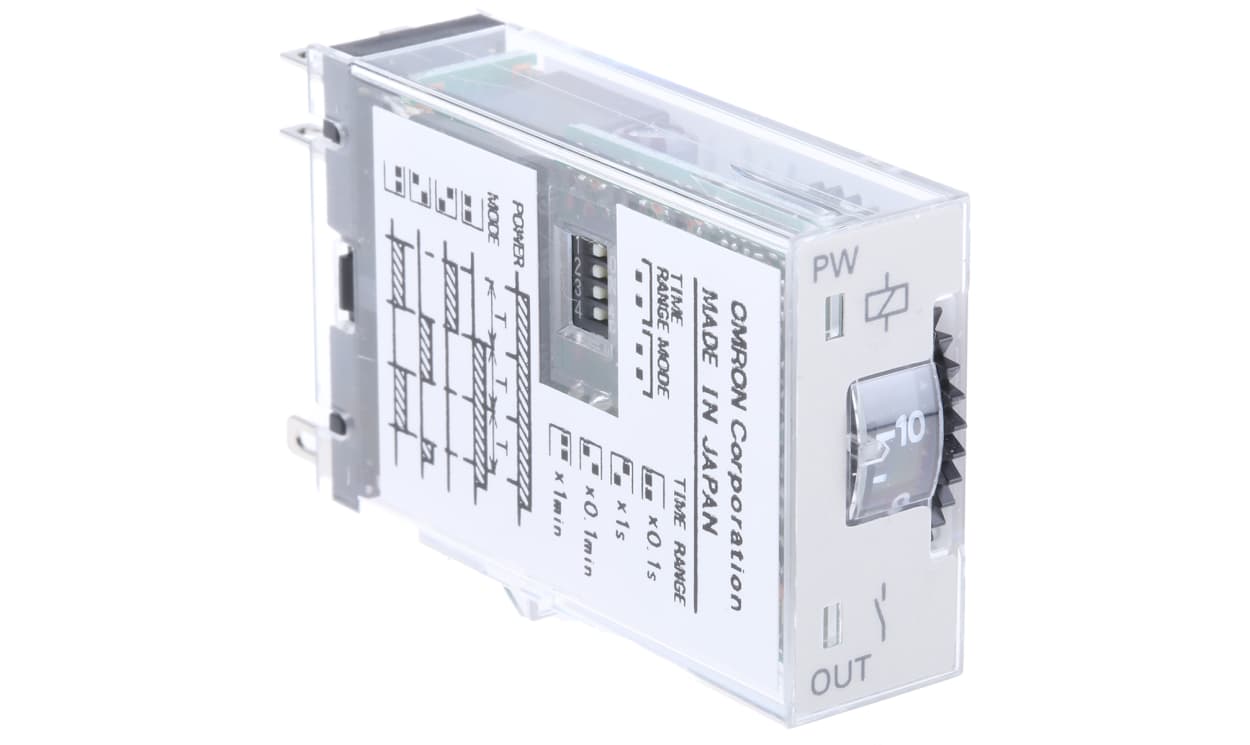

Omron H3RN-2 24VDC, H3RN Series Plug In Timer Relay, 24V dc, 2-Contact, 0.1 s → 10min
Part Number : H3RN-2 24VDC
For pricing, please contact our experts.
Omron Multi-function Timer Relay
The Omron H3RN series multi-function timer relay is a compact, solid-state equipment with high precision and a wide range of programming features. This relay performs delay functions of providing flicker off start, flicker on start selectable by a dip switch, interval delay and ON delay in the range of 0.1 seconds to 10 minutes. It has intuitive programming that makes it easy to use and quick to configure. Its low cost and high performance make it ideal for a wide range of applications in process control environments.
Features and Benefits
Ultra-slim 13mm design, for G2R relay socket
4 timing ranges between 0.1 seconds to 1 second like 0.1 seconds to 1 second, 1 second to 10 seconds, 0.1 minutes to 1 minute and 1 minute to 10 minute
Fast wiring due to push-in plus technology
The supply voltage is 24VDC
2 changeover relay output contact of 3A
Mounting type is chassis mount
8-pin round socket
Creepage and Clearance 1.5 mm
4 timing ranges between 0.1 seconds to 1 second like 0.1 seconds to 1 second, 1 second to 10 seconds, 0.1 minutes to 1 minute and 1 minute to 10 minute
Fast wiring due to push-in plus technology
The supply voltage is 24VDC
2 changeover relay output contact of 3A
Mounting type is chassis mount
8-pin round socket
Creepage and Clearance 1.5 mm
2.5 mm.
Operating accuracy +/- 1% FS max
SPDT contact configuration
Operating accuracy +/- 1% FS max
SPDT contact configuration
Applications
Textiles
Chemical industries
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Chemical industries
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Certifications
UL approved
CE certified
CSA certified
IP40 rated (excluding terminal section)
CE certified
CSA certified
IP40 rated (excluding terminal section)
Approvals
UL recognised component, CSA certified
