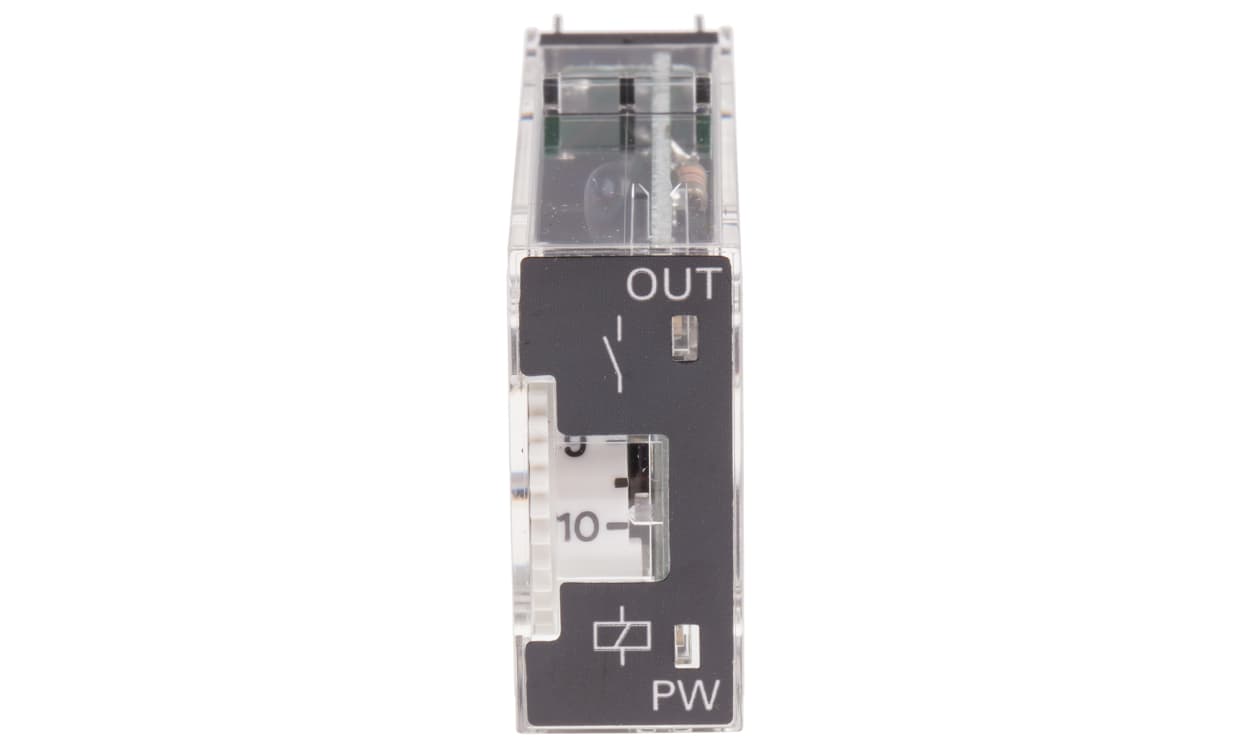

Omron H3RN-2-B 24VDC, H3RN Series Panel Mount Timer Relay, 24V dc, 2-Contact, 0.1 s → 10min, DPST

Name: Omron H3RN-2-B 24VDC, H3RN Series Panel Mount Timer Relay, 24V dc, 2-Contact, 0.1 s → 10min, DPST
Brand: OMRON
SKU: H3RN-2-B 24VDC
Availability: OutOfStock

Part Number : H3RN-2-B 24VDC

Availability: Sold out

Detailed Description
Specifications

5 Pin Multi function Solid State Timer- H3RN Series

5-Pin multi function timers are compact in size and suitable for use with G2R relay sockets.

• Compatible with push in plus terminal block sockets
• 5-pin plug-in terminal
• Black, compact design
• Standard multiple time ranges and multiple operating modes
• SPDT and DPST output models available

Brand	Omron
Supply Voltage	24V dc
Mounting Type	Panel Mount
Mode of Operation	Delay ON, Flicker OFF Start, Flicker ON Start, Interval
Time Range	0.1 s → 10min
Number of Contacts	2
Number of Timer Functions	Multi Function
Contact Configuration	DPST
Time Increment	Minutes, Seconds
Maximum Current	3A
Maximum Voltage	250V ac
Switch Configuration	DPST
Terminal Type	Plug In
Width	47.2mm
Power Supply	External
Length	12.8mm
Maximum Operating Temperature	+55°C
Series	H3RN
Depth	31.2mm
Minimum Operating Temperature	-10°C
