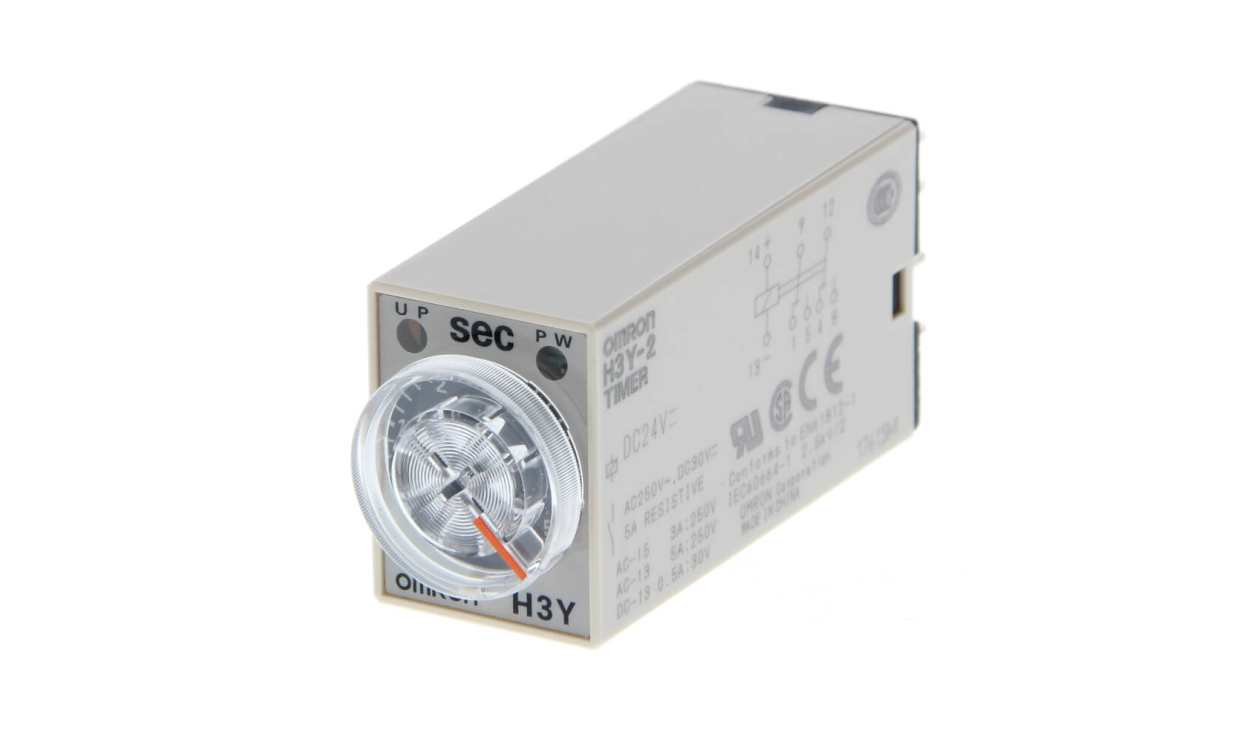

Name: Omron H3Y-2 AC200-230 30S, H3Y-2 Series DIN Rail Mount Timer Relay, 200 → 230V ac, 2-Contact, 0.04 - 30s, 1-Function, DPDT
Brand: OMRON
SKU: H3Y-2 AC200-230 30S
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron H3Y-2 AC200-230 30S, H3Y-2 Series DIN Rail Mount Timer Relay, 200 → 230V ac, 2-Contact, 0.04 - 30s, 1-Function, DPDT

Part Number : H3Y-2 AC200-230 30S

Availability: Sold out

Detailed Description
Specifications

Omron H3Y-2 Series Timer Relay, DPDT Configuration, 230V AC Maximum Voltage - H3Y-2 AC200-230 30S

This timer relay by Omron is a DPDT relay designed for DIN rail mounting. It offers precise time delay functionality, suitable for various industries. The timer relay ensures accurate timing for various applications, making it a reliable choice for various projects.

Features & Benefits

• DPDT relay configuration for flexible power switching
• DIN rail mounting for easy installation
• Time range of 0.04 - 30 s for precise control
• DPDT switch configuration for efficient operation
• Plug-in terminal type for convenient setup
• External power supply option for versatile usage
• ON delay mode of operation for specific timing requirements

Applications

• Control panels
• Lighting systems
• Motor controls

Can it be used for automation systems?

Yes, this timer relay by Omron is suitable for various automation applications.

Will it work with control panels?

Yes, this DPDT relay is designed to work seamlessly with control panels.

Is it suitable for motor controls?

Yes, the timer relay is reliable for motor controls to provide accurate timing functions.

Can it be used in lighting systems?

Yes, the timer relay can be integrated into lighting systems for precise on/off timings.

Brand	Omron
Supply Voltage	200 → 230V ac
Mounting Type	DIN Rail
Mode of Operation	ON Delay
Time Range	0.04 - 30s
Number of Contacts	2
Number of Timer Functions	Single
Contact Configuration	DPDT
Time Increment	Hours, Minutes, Seconds
Maximum Current	5A
Maximum Voltage	230V ac
Terminal Type	Plug In
Switch Configuration	DPDT
Minimum Voltage	200V ac
Power Supply	External
Width	28mm
Depth	56.6mm
Maximum Operating Temperature	+50°C
Length	21.5mm
Minimum Current	3A
