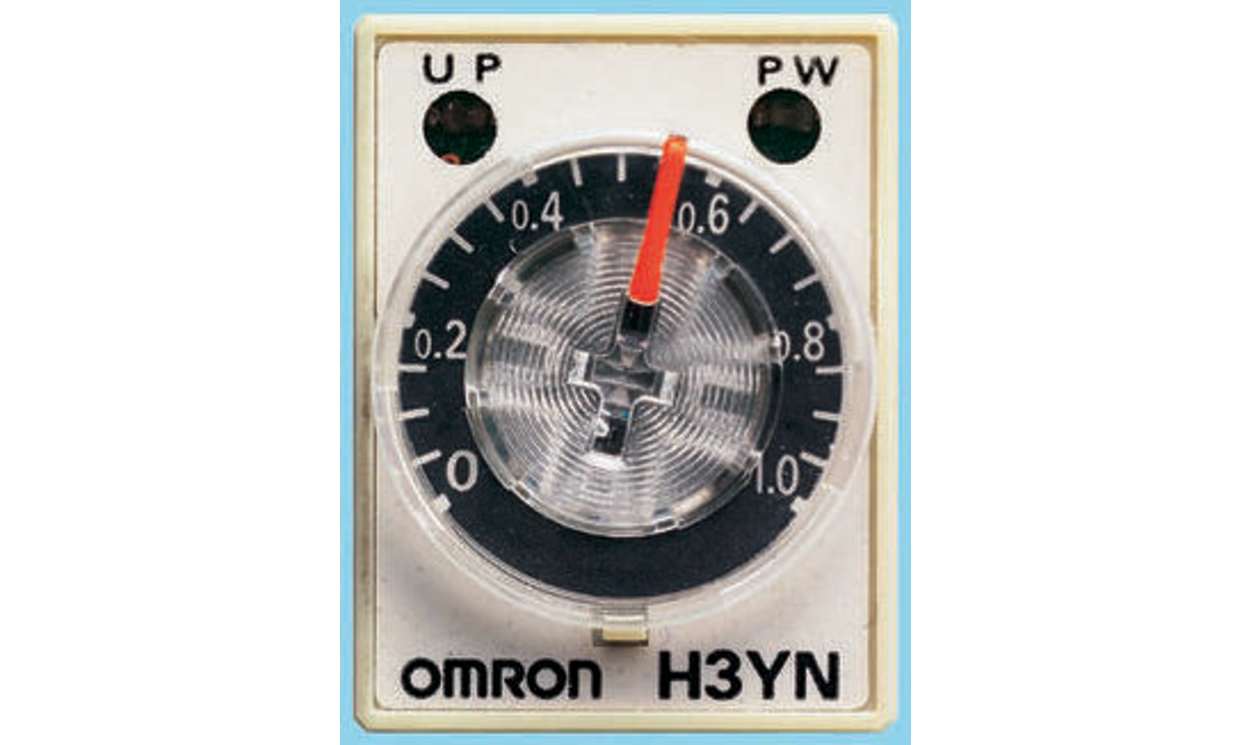

Omron H3Y-2 AC200-230 5S, H3Y Series DIN Rail, Surface Mount Timer Relay, 200 → 230V ac, 2-Contact, 0.2s, 1-Function

Name: Omron H3Y-2 AC200-230 5S, H3Y Series DIN Rail, Surface Mount Timer Relay, 200 → 230V ac, 2-Contact, 0.2s, 1-Function
Brand: OMRON
SKU: H3Y-2 AC200-230 5S
Availability: OutOfStock

Part Number : H3Y-2 AC200-230 5S

Availability: Sold out

Detailed Description
Specifications

H3Y2 - DPDT

Semi-multi power supply voltage
Large transparent time setting knob facilitates time setting
A flat-blade and Phillips screwdriver can also be used for time setting
Pin configuration compatible with MY Power Relay
LED indication for power and output statuses
Conforms to EMC standards

Standards

EN61812-1

Approvals

UL, CSA

Brand	Omron
Supply Voltage	200 → 230V ac
Mounting Type	DIN Rail, Surface Mount
Mode of Operation	ON Delay
Time Range	0.2s → 5s
Number of Contacts	2
Number of Timer Functions	Single
Time Increment	Hours, Seconds
Maximum Current	5A
Maximum Voltage	250V ac
Terminal Type	Plug In
Switch Configuration	DPDT
Width	21.5mm
Power Supply	External
Depth	63mm
Maximum Operating Temperature	+50°C
Series	H3Y
Length	28mm
Time Delay	(Reset) 0.1s
