Omron H3YN-4 DC24, H3YN Series DIN Rail, Panel Mount Timer Relay, 24V dc, 4-Contact, 0.1 s → 10min, 4PST

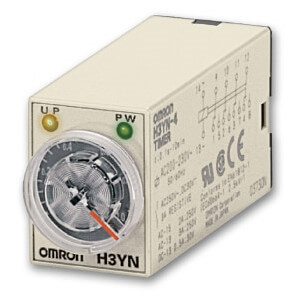

Name: Omron H3YN-4 DC24, H3YN Series DIN Rail, Panel Mount Timer Relay, 24V dc, 4-Contact, 0.1 s → 10min, 4PST
Brand: OMRON
SKU: H3YN-4 DC24
Availability: OutOfStock

Part Number : H3YN-4 DC24

Timer, plug-in, 14-pin, multifunction, 0.1s to 10 min short time range model, 4PDT, 24 VDC supply voltage

Availability: Sold out

Detailed Description
Specifications
Features

OMRON Timer Relay, Multiple Timer Functions, 3A Maximum Current - H3YN Series - H3YN-4 DC24

For industrial equipment that ticks along efficiently, use this timer relay from OMRON. It opens or closes its electrical contacts based on a pre-set duration. You can increase the time delay by seconds and minutes and it's capable of ON delay, interval, flicker-off start and flicker-on start, making it a versatile control option. You can trust it to handle essential applications like your process control system. The unit is compatible with DIN rail and panel mounting for flexibility during installation.

Features & Benefits

• Maximum current of 3A for low power consumption
• Lasting performance, thanks to a minimum mechanical life expectancy of 10 million cycles
• Maximum accuracy of ±1%FS for minimal errors
• Resists shock and vibration for safety in challenging settings

Applications

• HVAC systems
• Power plants
• Medical devices
• Packaging facilities

How do I reset the time delay on this relay?

To reset the delay, use the front-facing rotary switch to select your preferred mode.

What's the adjustable time range of this relay?

You can adjust the time range between 0.1s and 10mins to suit the needs of fast-paced operations.

Brand	Omron
Supply Voltage	24V dc
Mounting Type	DIN Rail, Panel Mount
Mode of Operation	Flicker OFF Start, Flicker ON Start, Interval, ON Delay
Time Range	0.1 s → 10min
Number of Contacts	4
Number of Timer Functions	Multi Function
Contact Configuration	4PST
Time Increment	Minutes, Seconds
Maximum Current	3A
Maximum Voltage	24V dc
Switch Configuration	4PDT
Terminal Type	Socket
Width	21.5mm
Power Supply	External
Maximum Operating Temperature	+50°C
Length	28mm
Depth	63mm
Series	H3YN
Minimum Operating Temperature	-10°C

Timer, plug-in, 14-pin, multifunction, 0.1s to 10 min short time range model, 4PDT, 24 VDC supply voltage
