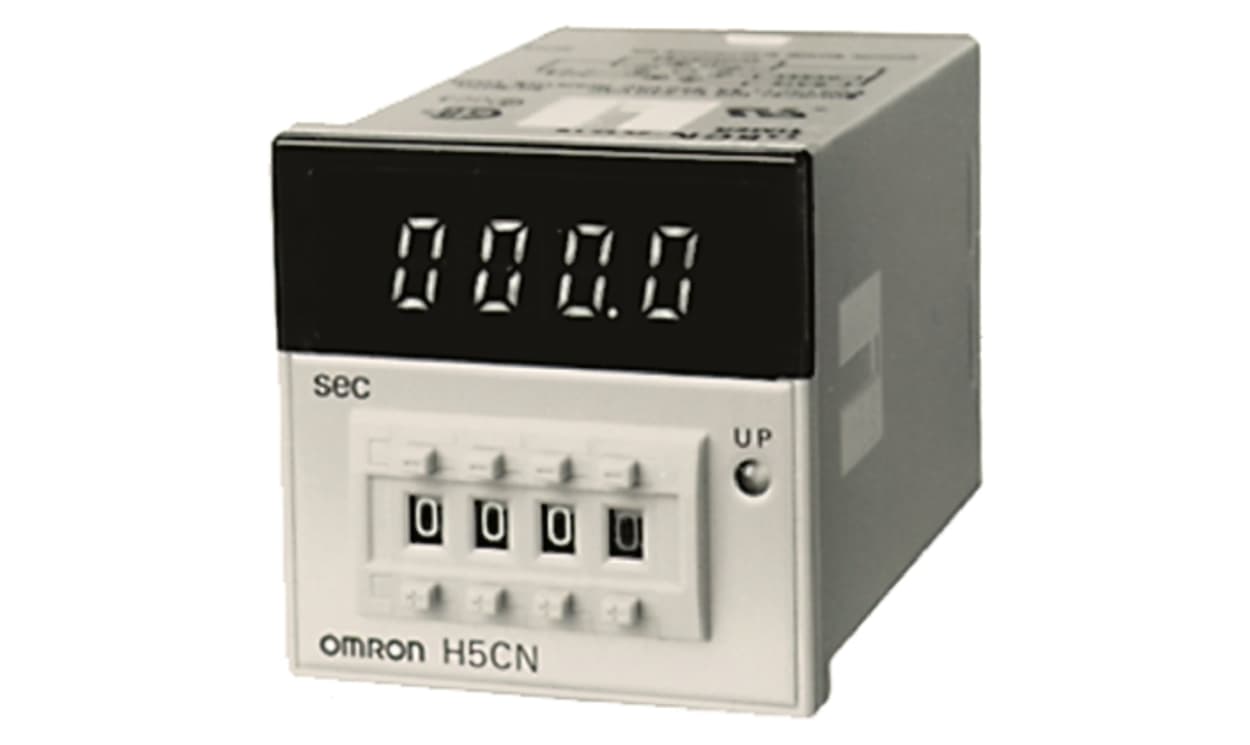

OMRON H5CN-YAN AC100-240 | On-Delay Timer Relay | 100–240 V AC, 24 V AC, 0.01–99.9 s, SPDT

Name: OMRON H5CN-YAN AC100-240 | On-Delay Timer Relay | 100–240 V AC, 24 V AC, 0.01–99.9 s, SPDT
Brand: OMRON
SKU: H5CN-YAN AC100-240
Availability: OutOfStock

Part Number : H5CN-YAN AC100-240

The OMRON H5CN-YAN AC100-240 is an H5CN series on-delay timer relay with a 0.01 to 99.9 s time range, powered from 100 to 240 V AC, 24 V AC. The H5CN-YAN AC100-240 provides SPDT output, DIN rail, panel or surface mounting and a 3 A maximum current rating.

Operating mode: ON Delay
Single timer function
8-pin connector
Dimensions: 48 mm wide, 48 mm long and 97.4 mm deep (as listed)
Maximum operating temperature +55 °C

Availability: in stock

Detailed Description
Specifications
Downloads

H5CN Series Minature Quartz Timers

Brand	Omron
Supply Voltage	100 → 240 V ac, 24V ac
Mounting Type	DIN Rail, Panel Mount, Surface Mount
Mode of Operation	ON Delay
Time Range	0.01 → 99.9s
Number of Contacts	1
Number of Timer Functions	Single
Time Increment	Seconds
Maximum Current	3A
Maximum Voltage	250V ac
Switch Configuration	SPDT
Terminal Type	8-Pin Connector
Minimum Voltage	5V dc
Power Supply	External
Width	48mm
Maximum Operating Temperature	+55°C
Series	H5CN
Depth	97.4mm
Length	48mm
Minimum Current	10mA

OMRON H5CN-YAN AC100-240 | On-Delay Timer Relay | 100–240 V AC, 24 V AC, 0.01–99.9 s, SPDT

DOWNLOAD CATALOG

OMRON H5CN-YAN AC100-240 | On-Delay Timer Relay | 100–240 V AC, 24 V AC, 0.01–99.9 s, SPDT

H5CN Series Minature Quartz Timers
