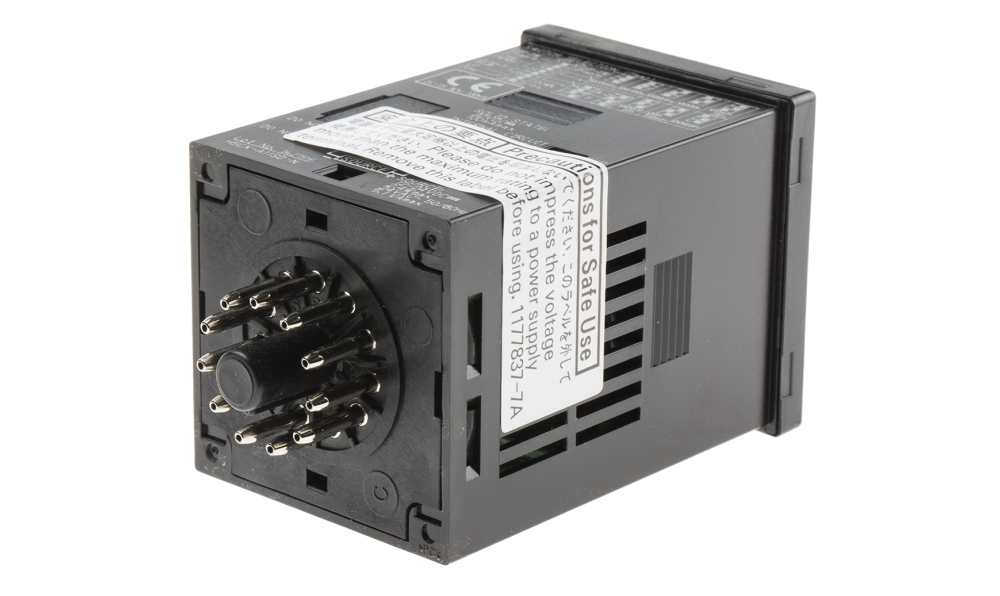

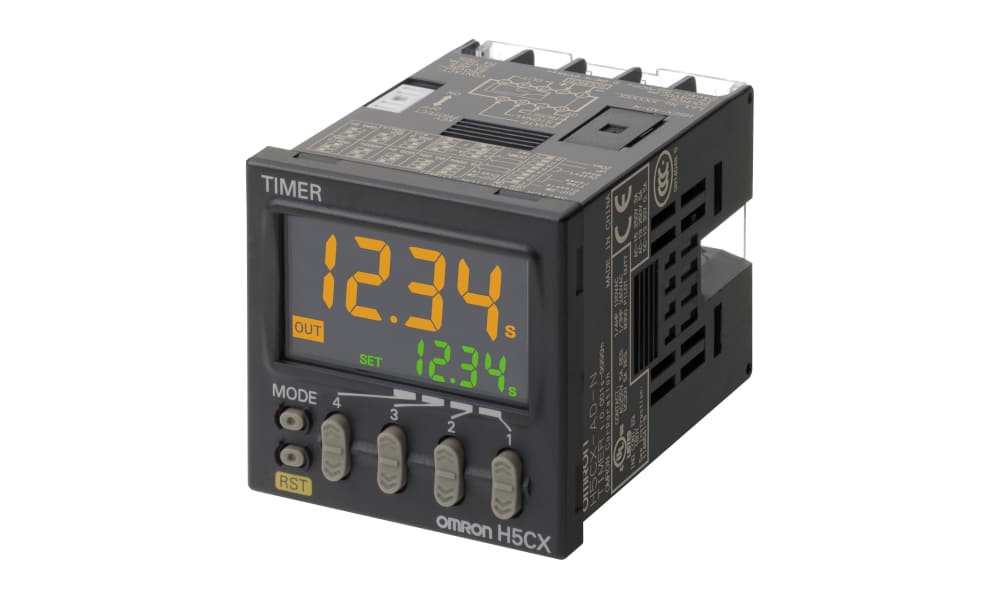

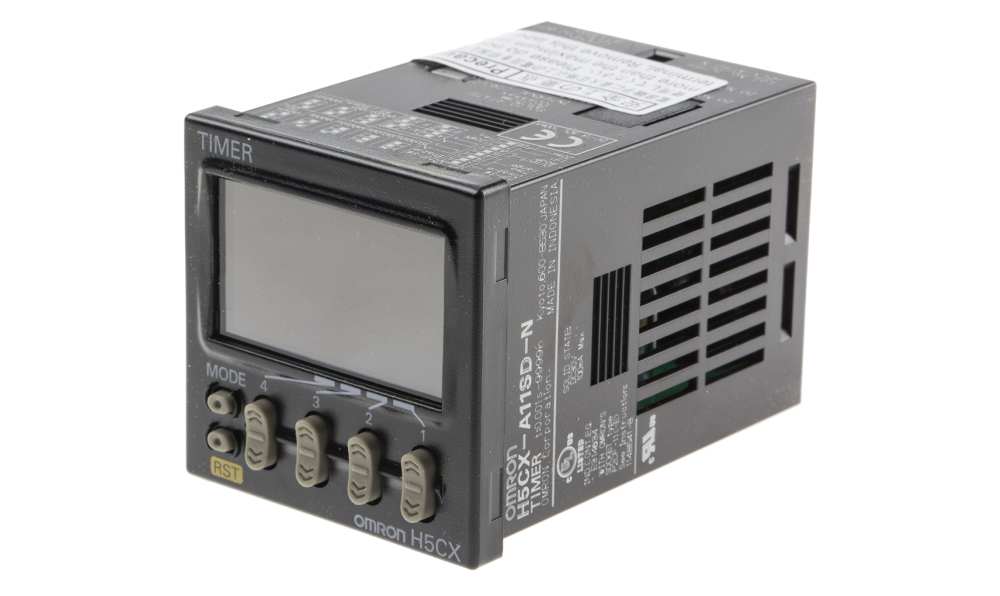

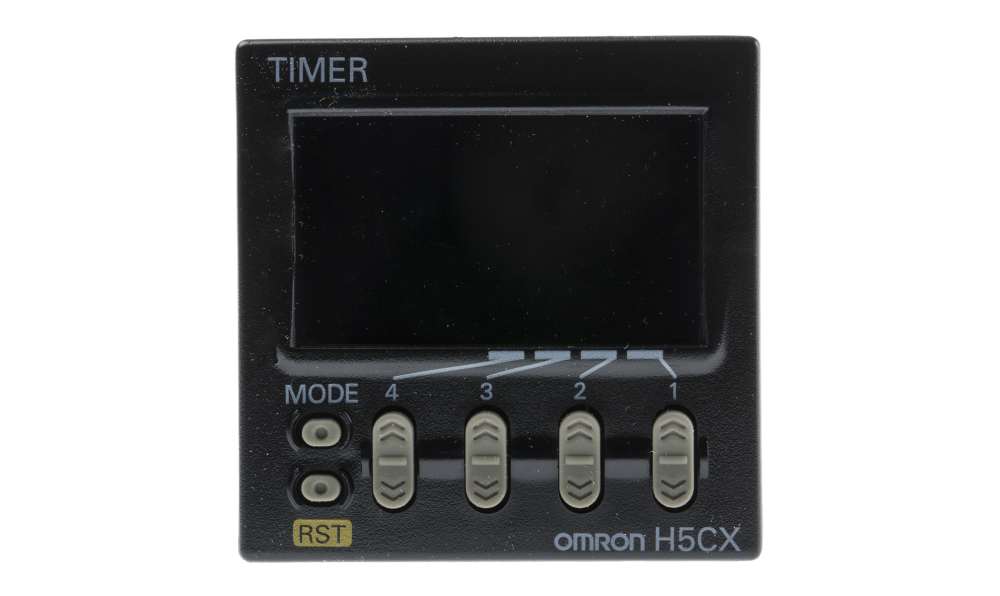

Omron H5CX-A11SD-N, H5CX Series Panel Mount Timer Relay, 12 → 24V ac/dc, 1-Contact, 0.001 s → 9999h, SPST

Name: Omron H5CX-A11SD-N, H5CX Series Panel Mount Timer Relay, 12 → 24V ac/dc, 1-Contact, 0.001 s → 9999h, SPST
Brand: OMRON
SKU: H5CX-A11SD-N
Availability: OutOfStock

Part Number : H5CX-A11SD-N

Availability: Sold out

Detailed Description
Specifications

Omron H5CX Series Digital Timer, 100 to 240V AC Supply Voltage, 0.005A Maximum Current - H5CX-A11-N

This digital timer is a versatile surface mount timer designed for precise time management in various applications. With a compact dimension of 48mm x 63.7mm x 48mm, it operates within a voltage range of 100 to 240 V AC, making it suitable for high voltage environments. Its multi-functional capabilities include cumulative timing, intervals, adjustable flicker duty, and sequential signals, providing an efficient solution for industries requiring reliable timing operations.

Features & Benefits

• Ultra-compact design for space-saving installations
• Isolated power supply enhances safety and reliability
• Multi-function capabilities simplify complex timing needs
• High maximum operating temperature of +55°C ensures durability
• Clear, switchable display colours enhance visibility from a distance

Applications

• Ideal for industrial automation processes requiring precise timing
• Utilised in electrical for equipment maintenance tracking
• Suitable for controlling machinery with varying operational cycles
• Effective in automation systems needing interval and cumulative timing

How does the timer's isolated power supply benefit my applications?

The isolated power supply prevents interference between power and input circuits, reducing the risk of damage from incorrect wiring and enhancing operational safety.

What type of input signals can I connect to the timer?

It supports various input signals, including no-voltage inputs and voltage input options, making it compatible with diverse sensors and control systems.

Can I change the display colour for better visibility?

Yes, the timer allows you to switch between red, green, and orange display colours to suit your visibility needs and output status alarms.

What is the maximum time range the timer can operate within?

The timer can operate with time ranges from 0.001 seconds to 9999 hours, making it flexible for diverse applications, from short cycles to long-duration tasks.

How does the adjustable flicker mode enhance the timer's functionality?

The adjustable flicker mode can manage ON/OFF cycles for equipment, allowing precise control over operation durations tailored to various industry requirements.

Brand	Omron
Supply Voltage	12 → 24V ac/dc
Mounting Type	Panel Mount
Mode of Operation	Cumulative, Interval, ON/OFF Duty Adjustable Flicker, Power ON Delay, Repeat Cycle, Signal OFF Delay, Signal ON Delay, Stopwatch
Time Range	0.001 s → 9999h
Number of Contacts	1
Number of Timer Functions	Multi Function
Contact Configuration	SPST
Time Increment	Hours, Seconds
Terminal Type	11-Pin Connector
Switch Configuration	SPDT
Power Supply	External
Width	48mm
Maximum Operating Temperature	+55°C
Depth	63.7mm
Series	H5CX
Length	48mm
Minimum Operating Temperature	-10°C
