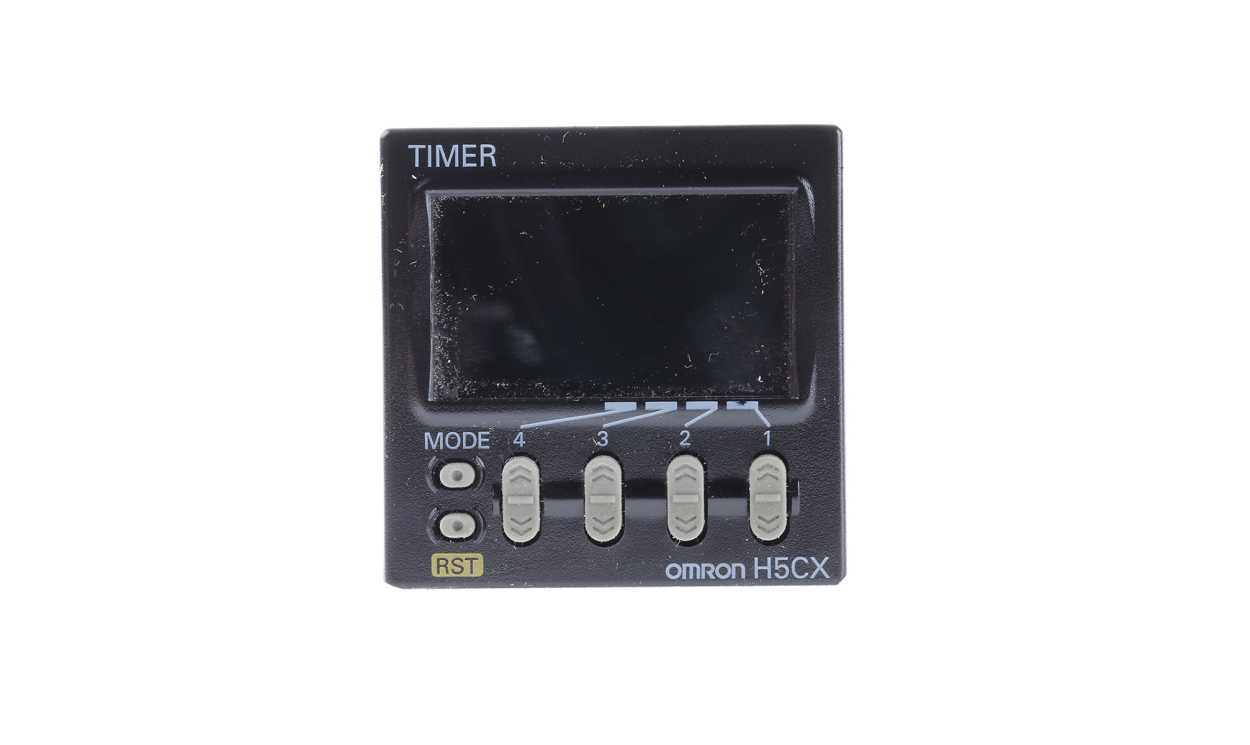

Omron H5CX-AS-N, H5CX Series Panel Mount Timer Relay, 100 → 240V ac, 1-Contact, 0.001 s → 9999h

Name: Omron H5CX-AS-N, H5CX Series Panel Mount Timer Relay, 100 → 240V ac, 1-Contact, 0.001 s → 9999h
Brand: OMRON
SKU: H5CX-AS-N
Availability: OutOfStock

Part Number : H5CX-AS-N

Availability: Sold out

Detailed Description
Specifications

Omron H5CX Series Digital Timer, 100 to 240V AC Supply Voltage, 1 Contact Configuration - H5CX-AS-N

This digital timer is designed for precise timing solutions in various industrial applications. With dimensions of 48mm x 48mm x 78mm, it offers an ultra-compact design, making it suitable for flush mounting in control panels. Capable of operating at a supply voltage of 100 to 240V AC, it incorporates multiple timer functions, including cumulative and interval timing.

Features & Benefits

• High visibility with 12mm display characters
• Multiple operation modes streamline complex timing tasks
• Safety isolation between circuits ensures reliable operation
• Easily readable display with colour switching for status alerts
• Programmemable set value limits prevent errors in output
• IP66 rated for effective protection against dust and water

Applications

• Ideal for precise timing in automation systems
• Used for managing intervals in electrical circuits
• Implemented in manufacturing processes requiring time control
• Applicable in machine operation to monitor usage hours
• Suitable for involving power ON delay and signal management

How does this timer handle different time ranges and modes?

It can handle a time range from 0.001 seconds to 9999 hours with various modes including cumulative and power ON delay, allowing for flexible time management in diverse applications.

What safety features are incorporated into the design?

The timer features isolated power supply circuits and input circuits, enhancing reliability and protecting against incorrect wiring, thus improving overall operational safety.

Can the display colour be customised for better visibility in different conditions?

Yes, the display characters can be switched between red, green, and orange to ensure optimal visibility and to indicate different output statuses from a distance.

What type of input signals can be connected to the timer?

It supports no-voltage inputs and voltage input (NPN/PNP), making it compatible with a wide range of sensors and control systems, thus aiding in seamless integration in various environments.

Is it suitable for high-temperature settings?

Yes, the timer can operate effectively within a temperature range of -10°C to +55°C, making it suitable for high-temperature industrial environments.

Brand	Omron
Supply Voltage	100 → 240V ac
Mounting Type	Panel Mount
Mode of Operation	Cumulative, Interval, ON/OFF Duty Adjustable Flicker, Power ON Delay, Repeat Cycle, Signal OFF Delay, Signal ON Delay, Stopwatch
Time Range	0.001 s → 9999h
Number of Contacts	1
Number of Timer Functions	Multi Function
Time Increment	Hours, Seconds
Terminal Type	Screw
Switch Configuration	SPDT
Width	48mm
Power Supply	External
Series	H5CX
Depth	78mm
Maximum Operating Temperature	+55°C
Length	48mm
Minimum Operating Temperature	-10°C
