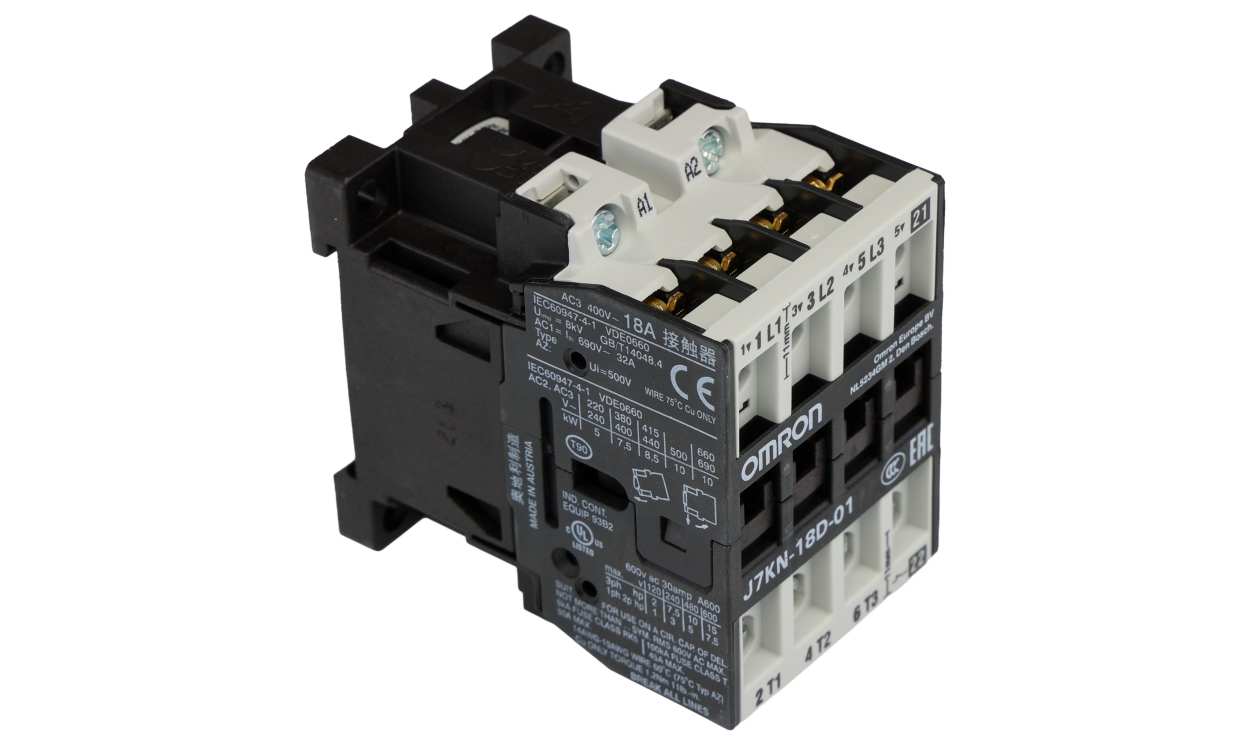

Name: Omron J7KN-18D-01 24, Contactor, 24 V ac Coil, 3-Pole, 18 A, 7.5 kW, 3NO + 1NC
Brand: OMRON
SKU: J7KN-18D-01 24
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron J7KN-18D-01 24, Contactor, 24 V ac Coil, 3-Pole, 18 A, 7.5 kW, 3NO + 1NC

Part Number : J7KN-18D-01 24

Availability: Sold out

Detailed Description
Specifications

Omron J7KN Series Contactor, 24V AC Coil Voltage, 18A Contact Current Rating - J7KN-18D-01 24

This contactor is designed for industrial applications, featuring a robust configuration with three poles. The device operates at a coil voltage of 24V AC and can handle a contact current of up to 18A. With overall dimensions of 45mm in width and 65.5mm in depth, the contactor is compact yet powerful, making it an ideal choice for various automation and electrical setups.

Features & Benefits

• Integrated auxiliary contact configuration for enhanced functionality
• High power rating of 7.5kW suitable for diverse usage
• Meets global electrical standards for reliable operation
• Suitable for both AC and DC usage enhancing versatility

Applications

• Utilised in automated assembly lines and machinery
• Ideal for motor control in HVAC systems
• Effective for lighting control in commercial buildings
• Can be integrated into electrical control panels for safety systems

What is the maximum contact current capacity of this device?

It can handle a maximum contact current of 18A, making it suitable for various applications that require medium to high power.

How does the environmental temperature rating affect usage?

Operating within -40°C to +60°C ensures reliability in extreme conditions, making it suitable for outdoor or harsh environments.

What type of installation is supported by this contactor?

The screw terminal design facilitates straightforward connections, allowing for quick and efficient setup without requiring complex tools.

Brand	Omron
Coil Voltage	24 V ac
Number of Poles	3
Contact Current Rating	18 A
Power Rating	7.5 kW
Normal State Configuration	3NO + 1NC
