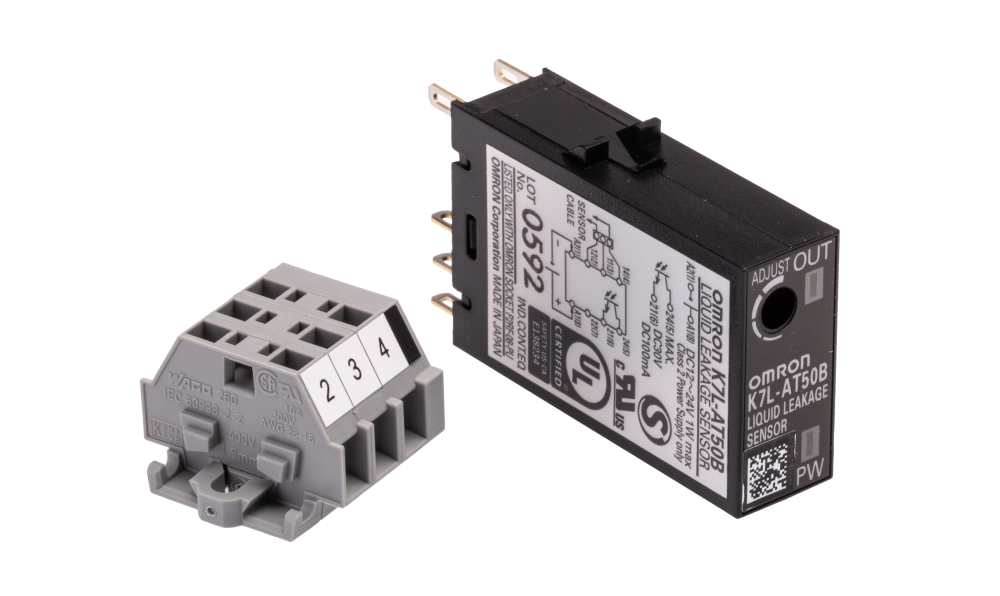

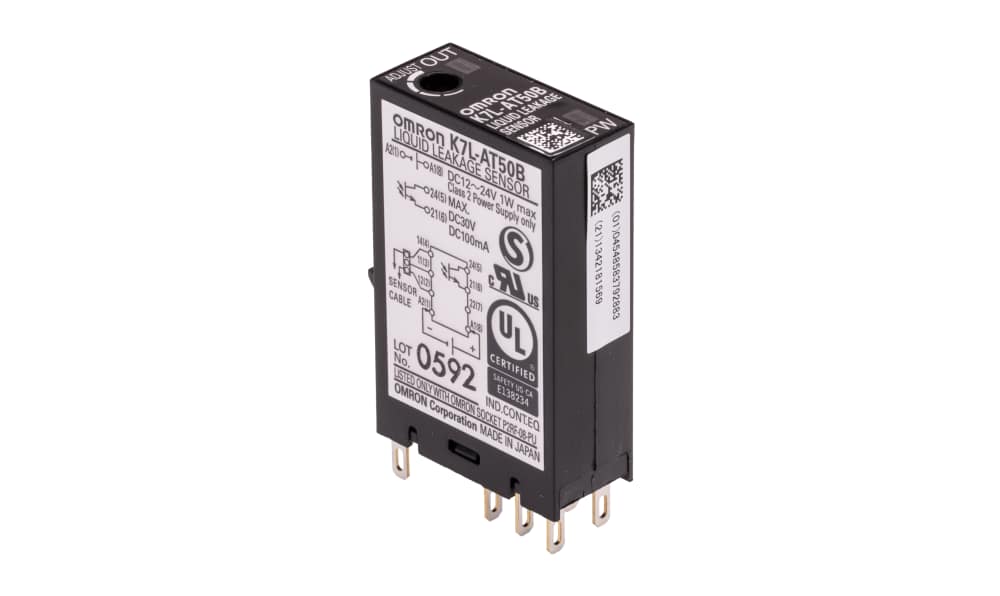

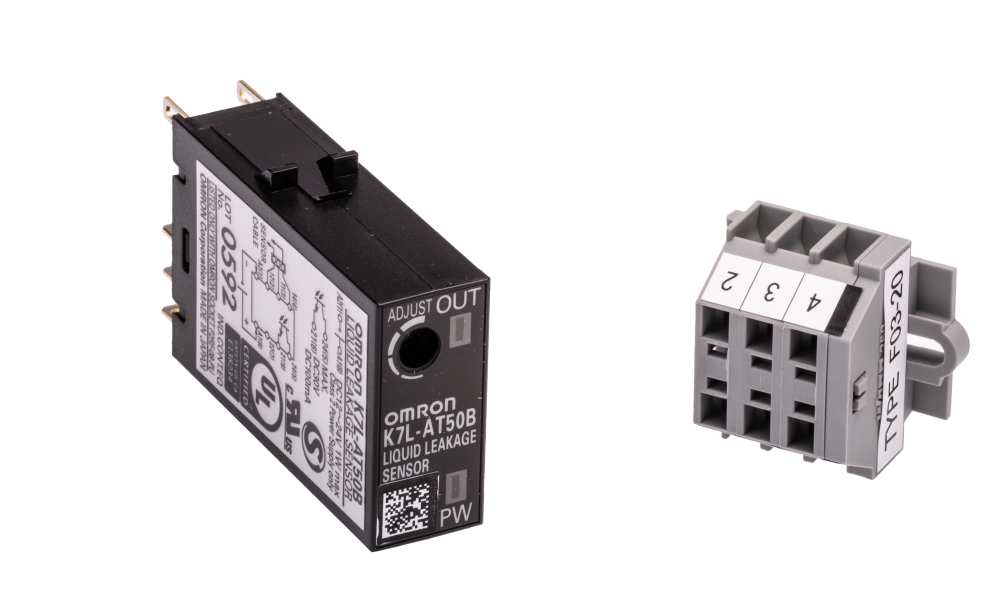

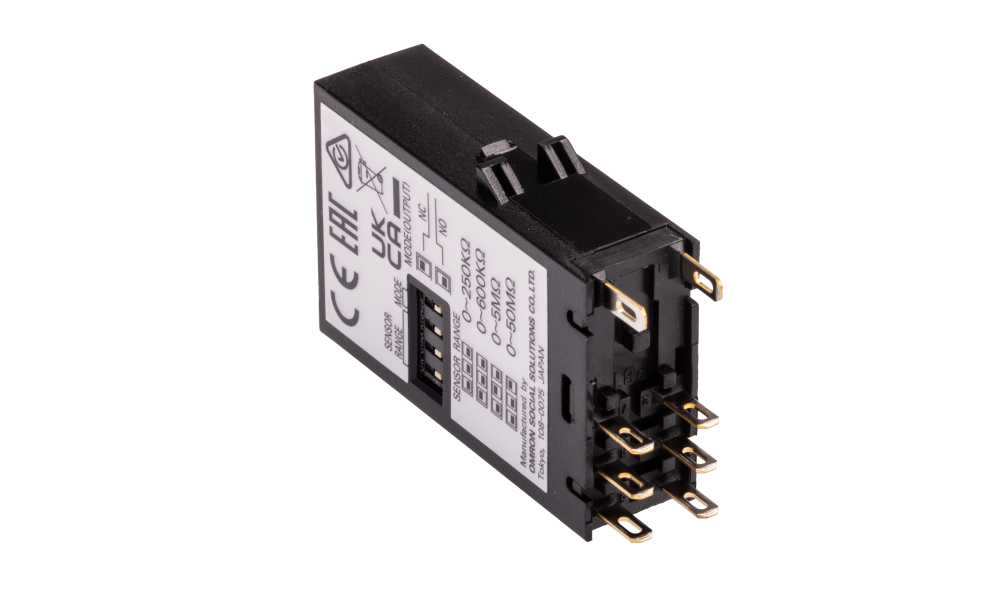

Name: Omron K7L-AT50B, K7L Series Liquid Leak Sensor - DIN Rail, 12 → 24 V dc 1 PNP/NPN
Brand: OMRON
SKU: K7L-AT50B
Availability: OutOfStock

Omron K7L-AT50B, K7L Series Liquid Leak Sensor - DIN Rail, 12 → 24 V dc 1 PNP/NPN

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron K7L-AT50B, K7L Series Liquid Leak Sensor - DIN Rail, 12 → 24 V dc 1 PNP/NPN

Part Number : K7L-AT50B

Availability: Sold out

Detailed Description
Specifications

Omron K7L Series Liquid Leak Sensor, 12.8mm Overall Length, DIN Rail Mounting Style - K7L-AT50B

This liquid leak sensor offers effective monitoring for leaks across various industrial applications. Its rapid detection of liquid presence is essential for minimising potential damage and downtime. The sensor is adaptable for different electronic and mechanical environments where prompt leak detection is required.

Features & Benefits

• High sensitivity detection ranges from 250KΩ to 50MΩ
• DIN rail mounting style enables straightforward installation and integration
• Functions in temperatures from -10°C to +55°C
• CE and UL certified for safety and compliance

Applications

• Monitors industrial machinery for liquid leaks
• Utilised in HVAC systems for early fluid detection
• Installed in manufacturing processes for immediate leak notifications
• Suitable for water treatment facilities

How should it be mounted for optimal performance?

The sensor is designed for DIN rail mounting, ensuring quick and stable installation in existing control panels or electrical enclosures.

What is the significance of its sensitivity range?

The wide sensitivity range allows for the detection of small leaks, providing early warnings and reducing the risk of operational disruptions.

What ranges of supply voltage can it operate within?

It operates effectively within a supply voltage range of 12 to 24 V DC, making it adaptable for various applications and electrical configurations.

Liquid Leakage Sensors

Brand	Omron
Number of Inputs	1
Mounting Style	DIN Rail
Supply Voltage	12 → 24 V dc
Overall Length	12.8mm
Overall Width	46mm
Overall Depth	28.8mm
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Standards Met	CE, CSA Certified, cULus, UL Certified
Series	K7L
Sensitivity	250 Kohm → 50M ohm
Output Type	PNP/NPN
Termination Type	Plug-In
Number of Outputs	1
