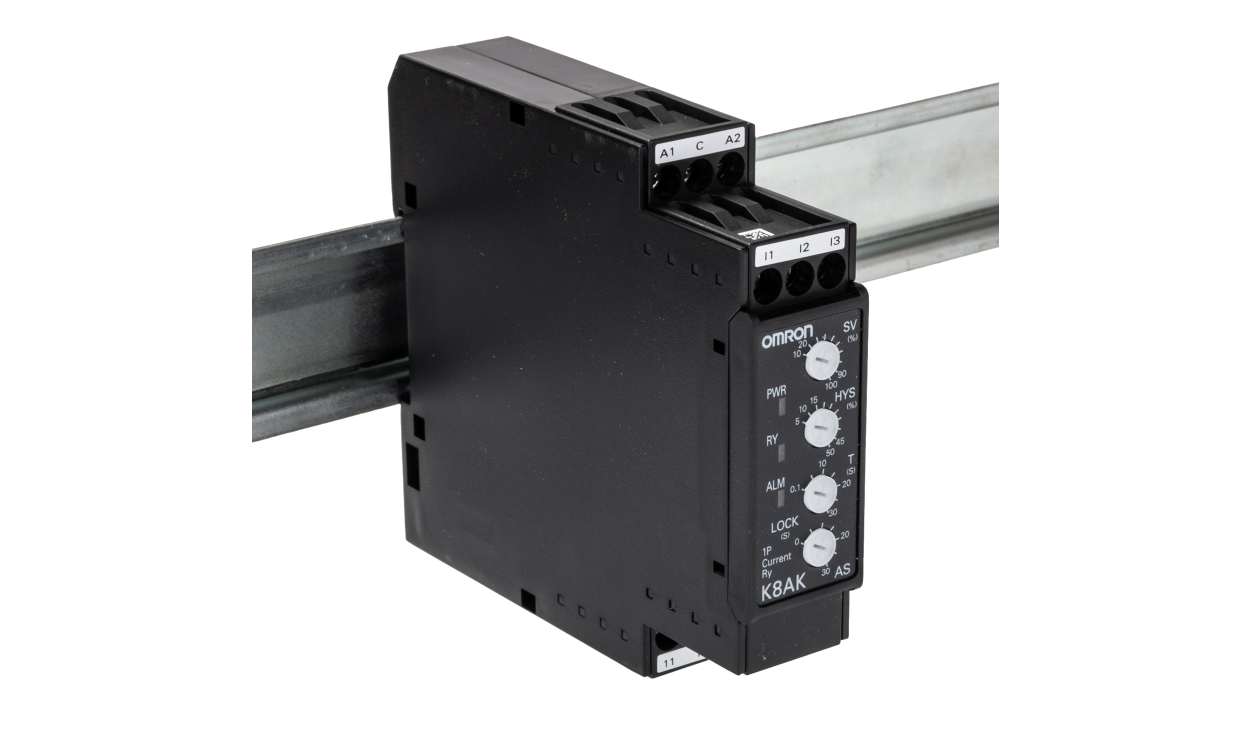

OMRON K8AK-AS3 100-240VAC | Current Monitoring Relay | 10 to 200 A, 1 Phase, SPDT
OMRON K8AK-AS3 100-240VAC single-phase current monitoring relay: current ranges of 10 to 100 A and 20 to 200 A, plus overcurrent and undercurrent detection. The K8AK-AS3 100-240VAC switches an SPDT output and mounts on DIN rail in a 22.5 mm wide housing. Per the product description, it requires an external CT. The description lists 100-240 VAC for the K8AK-AS3 100-240VAC.
- Current ranges: 10 to 100 A, 20 to 200 A
- Detection: Overcurrent, undercurrent
- Contacts: SPDT
- Terminals: Screw (IP20 terminal)
- Operating temperature: -20 to +60 °C
- Standards: CCC, CE, CSA, cURus
- Detailed Description
- Specifications
- Features
- Downloads
Omron K8AK-AS Series Monitoring Relay, SPDT Contact Configuration, DIN Rail Mount - K8AK-AS3 100-240VAC
Features & Benefits
• Easy DIN rail installation for user convenience
• Compact size optimises space within electrical enclosures
• IP20 specifications offer dust ingress protection
• User-friendly screw terminal design simplifies wiring
Applications
• Monitors electrical loads in automation systems
• Enhances operational safety in power distribution networks
• Utilised in HVAC systems for effective electrical monitoring
What is the temperature range for operation?
How should this be mounted for optimal function?
What happens if the current exceeds the specified limits?
Can this device be used in conjunction with other monitoring systems?
Standards
Terminal protection IP20.
| Brand | Omron |
| Series | K8AK-AS |
| Monitoring Application | Current |
| Contact Configuration | SPDT |
| Electrical Phase | 1 |
| Mounting Type | DIN Rail |
| Length | 100 mm (3.94 in) |
| Operating Temperature Range | -20 → +60 °C (-4 to 140 °F) |
| Width | 22.5 mm (0.886 in) |
| Height | 90 mm (3.54 in) |
| Dimensions | 100 x 22.5 x 90 mm (3.94×0.886×3.54 in) |
| Maximum Operating Temperature | +60 °C (140 °F) |
| Minimum Operating Temperature | -20 °C (-4 °F) |
| Terminal Type | Screw |
| Minimum Current Sensed | 10A |
| Maximum Current Sensed | 200A |
| Current Sensitivity | Overcurrent, Undercurrent |
| Current Range | 10 → 100 A, 20 → 200A |
| Standards Met | CCC, CE, CSA, cURus |
| Special Features | IP20 Terminal |
Monitoring relay 22.5mm wide, Single phase over or under current 10 to 200A AC (External CT required), One SPDT,100-240 VAC
