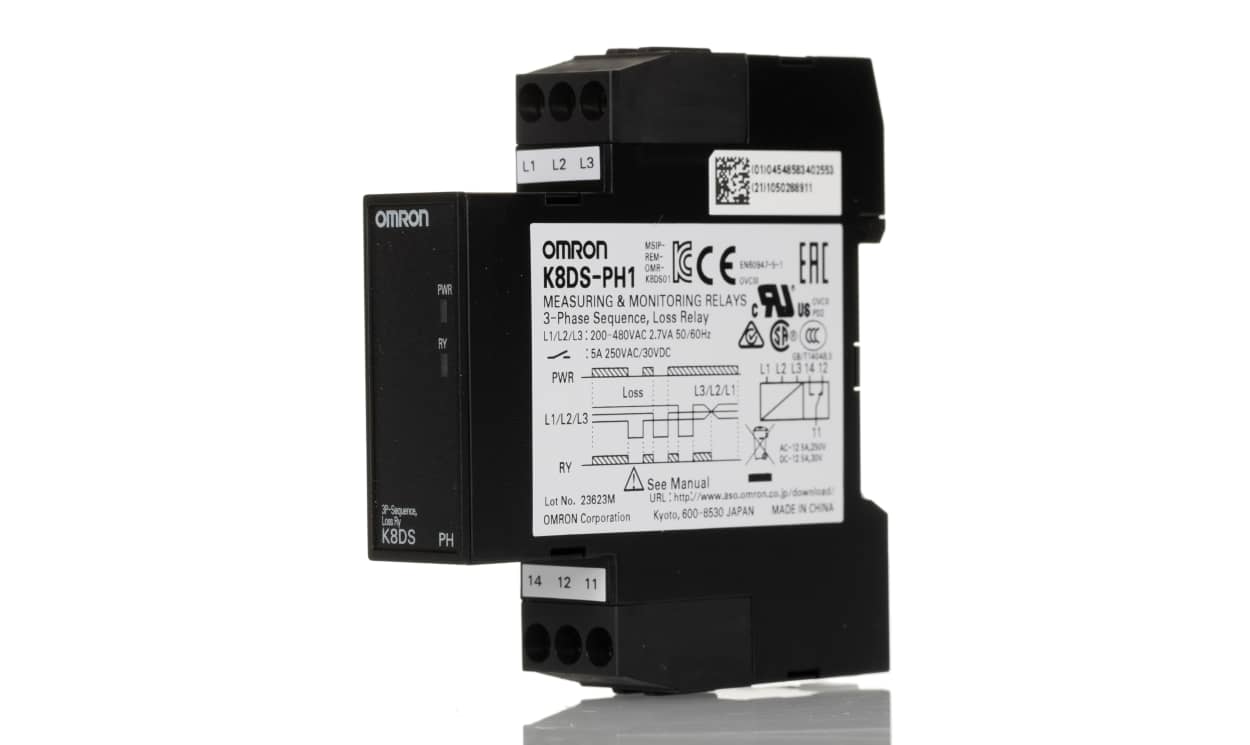

OMRON K8DS-PH1 | Phase Monitoring Relay | 3 Phase, SPDT, DIN Rail
The OMRON K8DS-PH1 is a phase monitoring relay for three-phase circuits in the K8DS series. It switches an SPDT output and mounts on DIN rail in a 17.5 mm wide housing. Per the product description, it is intended for 3-phase 3-wire systems.
- Contacts: SPDT
- Frequency range: 10 to 55 Hz
- Terminals: Screw
- Dimensions: 80 x 74 x 17.5 mm
- Operating temperature: -10 to +60 °C
- Standards: CE
- Detailed Description
- Specifications
- Features
- Downloads
Omron K8DS Series Monitoring Relay, 3-Phase, SPDT - K8DS-PH1
This OMRON relay provides accurate phase sequence detection, phase loss monitoring, and prevents reverse operation of motors. It has a rapid reaction time of 0.1s and comes with an SPDT relay output. You can use it in temperatures of −20 to 60°C, making it a durable choice for demanding environments.
It’s perfect for your industrial applications which require precise phase monitoring, as it offers efficient operation and enhanced safety capabilities. It can also be mounted via DIN rail, making installation quick and simple.
Features & Benefits
• SPDT relay output with automatic reset for seamless operation
• Easy monitoring of output status due to its LED indicator
• Greater resistance to inverter noise, ensuring reliable performance
• Prevents reverse operation of motors, enhancing operational safety
• Compact and slim design enables use in tight set ups
Applications
• Suitable for monitoring phase sequence and phase loss in motor control circuits
Can it detect phase loss in a three-phase system?
Will it work effectively in preventing reverse operation of motors?
Is it suitable for applications requiring reliable phase monitoring?
| Brand | Omron |
| Series | K8DS |
| Monitoring Application | Phase |
| Contact Configuration | SPDT |
| Electrical Phase | 3 |
| Mounting Type | DIN Rail |
| Length | 74 mm (2.91 in) |
| Operating Temperature Range | -10 → +60 °C (14 to 140 °F) |
| Width | 17.5 mm (0.689 in) |
| Height | 80 mm (3.15 in) |
| Dimensions | 80 x 74 x 17.5 mm (3.15×2.91×0.689 in) |
| Maximum Operating Temperature | +60 °C (140 °F) |
| Minimum Operating Temperature | -10 °C (14 °F) |
| Terminal Type | Screw |
| Standards Met | CE |
| Frequency Sensing Range | 10 → 55Hz |
Monitoring relay 17.5mm wide, simultanious monitoring of phase sequence and loss in 3phase 3wire systems, One SPDT
