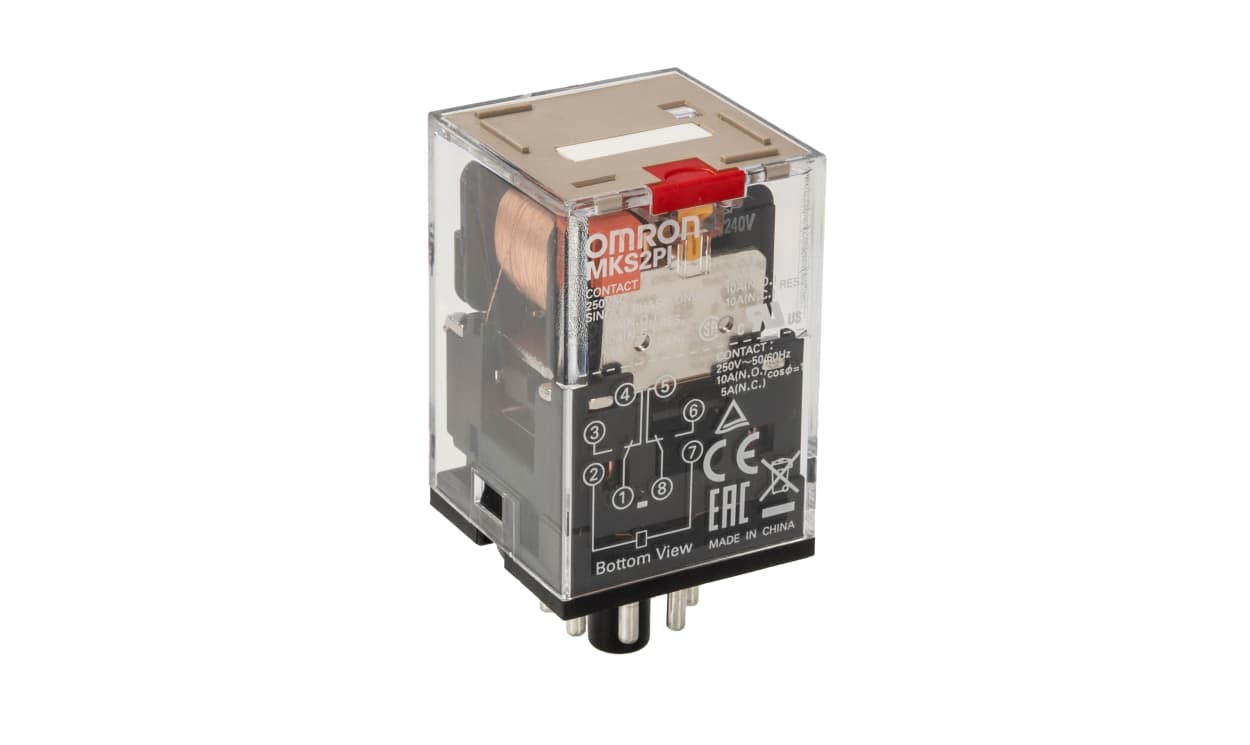

Omron MKS2PI 240VAC, Plug In Power Relay, 240V ac Coil, 10A Switching Current, DPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron MKS2PI 240VAC, Plug In Power Relay, 240V ac Coil, 10A Switching Current, DPDT

Name: Omron MKS2PI 240VAC, Plug In Power Relay, 240V ac Coil, 10A Switching Current, DPDT
Brand: OMRON
SKU: MKS2PI 240VAC
Availability: OutOfStock

Part Number : MKS2PI 240VAC

Relay, plug-in, 8-pin, DPDT, 10A, mech indicator, test button

Availability: Sold out

Detailed Description
Specifications
Features

Omron MKS Series Power Relay, DPDT Contact Configuration, 240V AC Coil Voltage - MKS2PI AC240

This power relay is designed for general-purpose applications, ensuring consistent performance across various electrical systems. Its DPDT configuration allows for flexible switching, making it suitable for automation and control tasks within manufacturing and mechanical engineering environments. The durable construction and adherence to international standards guarantee reliable operation even in challenging conditions.

Features & Benefits

• Operates at a coil voltage of 240V AC for steady performance
• 10A switching capacity suitable for diverse loads
• Plug-in design facilitates straightforward installation and maintenance
• Constructed with silver alloy contacts for improved conductivity
• High durability with 100,000 electrical operations and 5,000,000 mechanical operations
• Electrical isolation rated up to 2.5kV AC for enhanced safety

Applications

• Used for sequence control in industrial automation
• Ideal for switching in electrical circuits
• Suitable for signalling and control in mechanical systems
• Engaged in systems requiring reliable relay switching between devices

What is the maximum switching voltage this relay can handle?

It can handle a maximum switching voltage of 250V AC and 250V DC.

Can this relay be used in outdoor applications?

Yes, it operates effectively in temperatures ranging from -40°C to +60°C.

How does the plug-in design benefit installation?

The plug-in design allows for quick and easy replacement without complex wiring alterations.

What type of loads is this relay suitable for?

It accommodates both resistive and inductive loads, providing versatility for various applications.

Is it compliant with safety standards?

Yes, it is certified under UL and IEC standards for safety and reliability.

Brand	Omron
Coil Voltage	240V ac
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	2
Series	MKS
Latching	No
Terminal Type	Plug In
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	250V dc
Length	34.5mm
Coil Resistance	4480Ω
Coil Power	2.7W
Height	34.5mm
Isolation Coil To Contact	2.5kV ac
Maximum Operating Temperature	+60°C
Contact Material	Silver Alloy
Minimum Operating Temperature	-40°C
Standards Met	CSA, UL

Relay, plug-in, 8-pin, DPDT, 10A, mech indicator, test button
