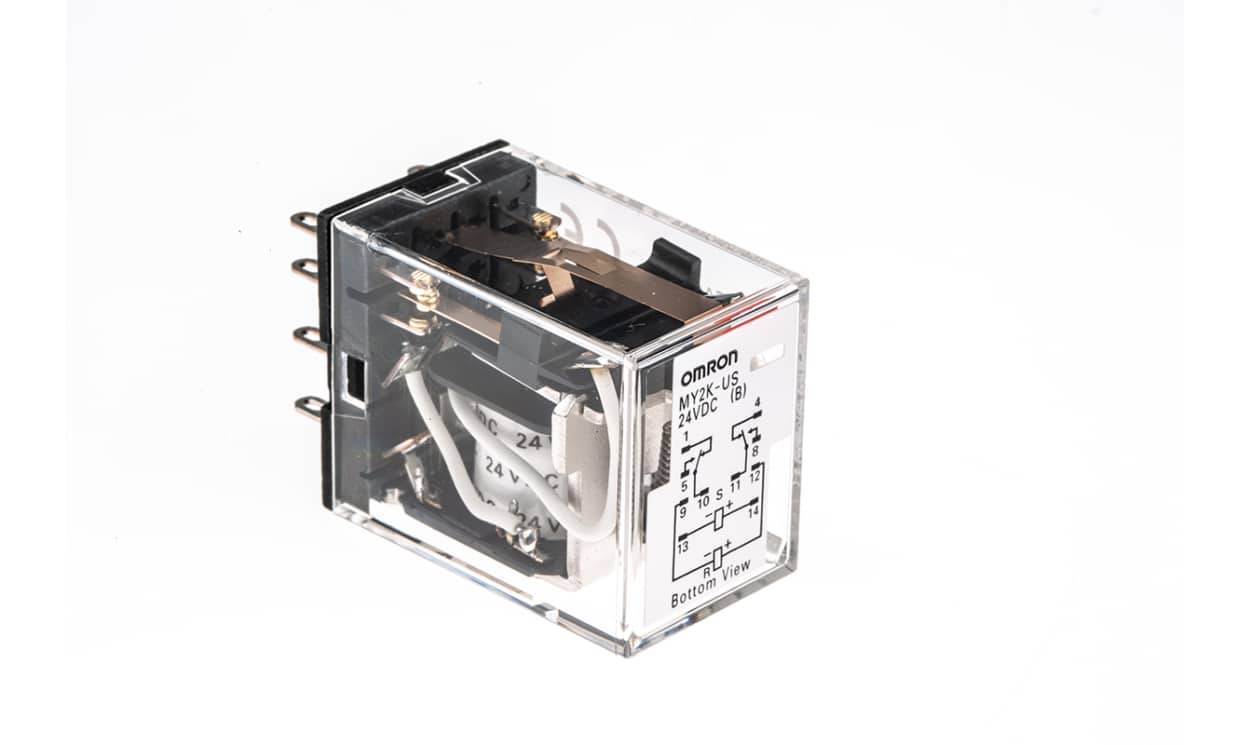

Name: Omron MY2K-US 24VDC, Plug In Latching Power Relay, 24V dc Coil, 3A Switching Current, DPDT
Brand: OMRON
SKU: MY2K-US 24VDC
Availability: OutOfStock

Omron MY2K-US 24VDC, Plug In Latching Power Relay, 24V dc Coil, 3A Switching Current, DPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron MY2K-US 24VDC, Plug In Latching Power Relay, 24V dc Coil, 3A Switching Current, DPDT

Part Number : MY2K-US 24VDC

Availability: Sold out

Detailed Description
Specifications

OMRON Power Relay, 28 (L) x 36 (W) x 21.5mm (D), Closed Cover Protection - MYK Series - MY2K DC24

Put your industrial equipment to work with this power relay from OMRON. It's a latching device, so its contact retains its position after the switch has been released. This means that you don't need a continuous current stream to hold it in place once it's been actuated, making it an energy-efficient control solution that suits applications like industrial lighting. Thanks to compact dimensions of 28 (L) x 21.5 (W) x 36mm (D), it's simple to slot the unit into a busy setup. It also weighs just 30g, so puts only minimal strain on your mounting surface.

Features & Benefits

• Maximum switching power of 72W for resistive loads and 36W for inductive loads makes it a good fit for heavy-duty applications
• Dielectric strength of 1.5kV shows it's a reliable insulator as it handles high voltages without suffering damage
• Gold-plated silver contacts resist corrosion to provide long-lasting service, even in harsh environments

Applications

• Medical equipment
• Robotics and automation systems
• Aerospace industry

How much energy does this relay consume?

This unit needs just 1.3W for the operating pulse and 0.6W for the release trigger, so it uses minimal energy.

Approvals

UL; CSA

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	3A
Number of Poles	2
Latching	Yes
Series	MYK
Terminal Type	PCB Pin
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	125V dc
Length	28mm
Coil Resistance	470 (Set Coil) Ω, 940 (Reset Coil) Ω
Contact Material	Gold Plated
Maximum Operating Temperature	+60°C
Depth	21.5mm
Standards Met	CE, CSA
Height	36mm
Minimum Operating Temperature	-55°C
Maximum Switching Power DC	72 W
