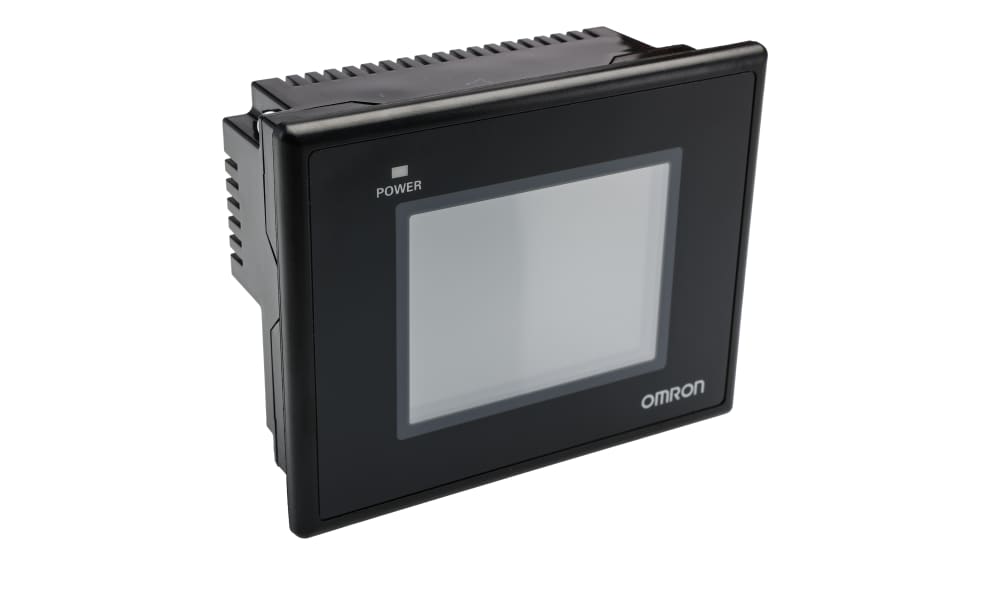

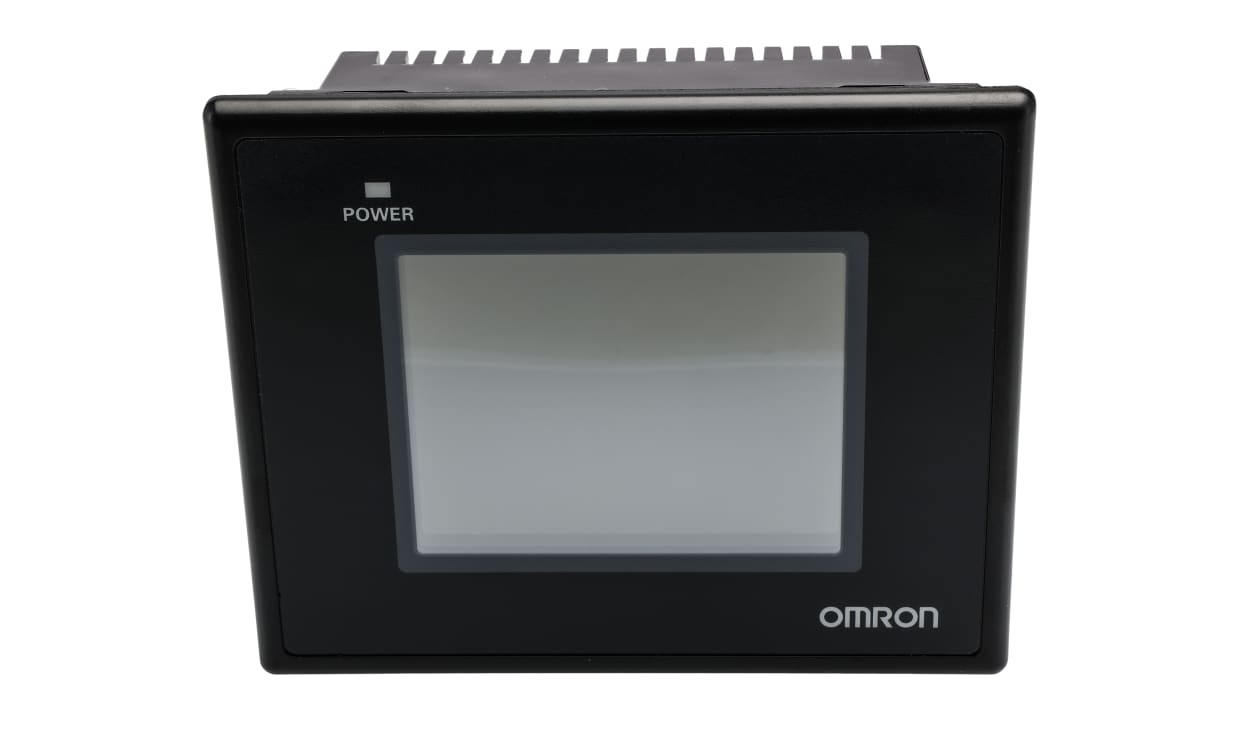

Omron NB3Q-TW01B, NB Series Touch Screen HMI - 3.5 in, TFT LCD Display, 320 x 240

Name: Omron NB3Q-TW01B, NB Series Touch Screen HMI - 3.5 in, TFT LCD Display, 320 x 240
Brand: OMRON
SKU: NB3Q-TW01B
Availability: OutOfStock

Part Number : NB3Q-TW01B

Touch screen HMI, 3.5 inch QVGA (320 x 240 pixel), TFT color, Ethernet + USB Host

Availability: Sold out

Detailed Description
Specifications
Features

Omron Series NB Touch Screen Hmi, 3.5 in Display size, 320 x 240 Pixels Resolution - NB3Q-TW01B

This touch screen HMI is a compact interface designed for industrial applications. Featuring a 3.5 in TFT LCD display with a resolution of 320 x 240 pixels, it offers a clear colour display while remaining easy to integrate into various systems. Measuring 128.8 x 103.8 x 52.8 mm and with an IP65 rating, this product ensures protection against dust and splashes.

Features & Benefits

• Supports serial, USB, and Ethernet communication for versatile connectivity
• Long-lasting LED backlight with a lifetime of 50,000 hours
• Compact design, ideal for tight spaces in automation setups
• USB memory stick support for easy data transfer

Applications

• Used for interfacing with PLCs in automation systems
• Utilised in control panels for industrial machinery
• Can be used in electrical and mechanical system monitoring
• Integrated into user interface within manufacturing setups

How does the display clarity benefit the user during operation?

The touch screen features a resolution of 320 x 240 pixels with over 65,000 colours, allowing for clear visuals. This improves visibility and user interaction, making operations more efficient.

What are the connectivity options available for integration?

This HMI offers multiple communication ports including Ethernet, USB Host, and RS-232C. This flexibility accommodates various communication needs in industrial environments.

How does the IP65 rating impact the device’s usability?

The IP65 rating ensures that the front of the touch screen is dust-tight and protected against water ingress, which is essential for reliable operation in challenging environments.

What is the memory capacity and its significance for operations?

With 128MB of onboard memory, it allows for smooth operation and storage of graphical interfaces, essential for data logging and monitoring applications.

Can this device be operated in different temperature conditions?

Yes, it can function effectively in ambient temperatures ranging from 0 to +50 °C, ensuring reliability in various industrial settings.

Omron NB Series

Brand	Omron
Manufacturer Series	NB
Display Type	TFT LCD
Manufacturer Part No.	NB3Q-TW01B
Display Resolution	320 x 240
Number of Ports	3
Port Type	Ethernet, RS-232C, USB Host
Onboard Memory	128 MB
Backlighting	Yes
Display Size	3.5 in
IP Rating	IP65
Length	128.8mm
Depth	52.8mm
Maximum Operating Temperature	+50°C
Interface	Ethernet, USB
Supply Voltage	20.4 → 27.6 V dc
Width	103.8mm
Display Colour	Colour
Minimum Operating Temperature	0°C
Dimensions	128.8 x 103.8 x 52.8 mm

Touch screen HMI, 3.5 inch QVGA (320 x 240 pixel), TFT color, Ethernet + USB Host
