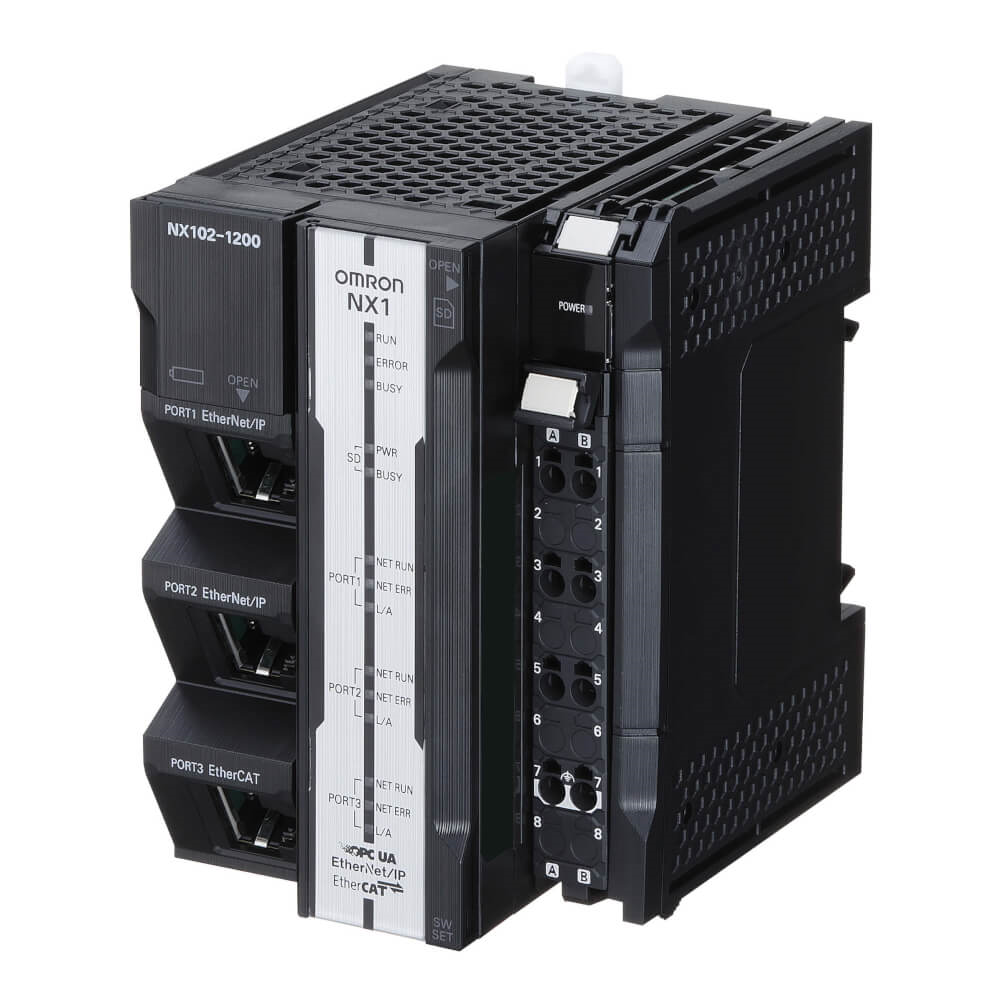

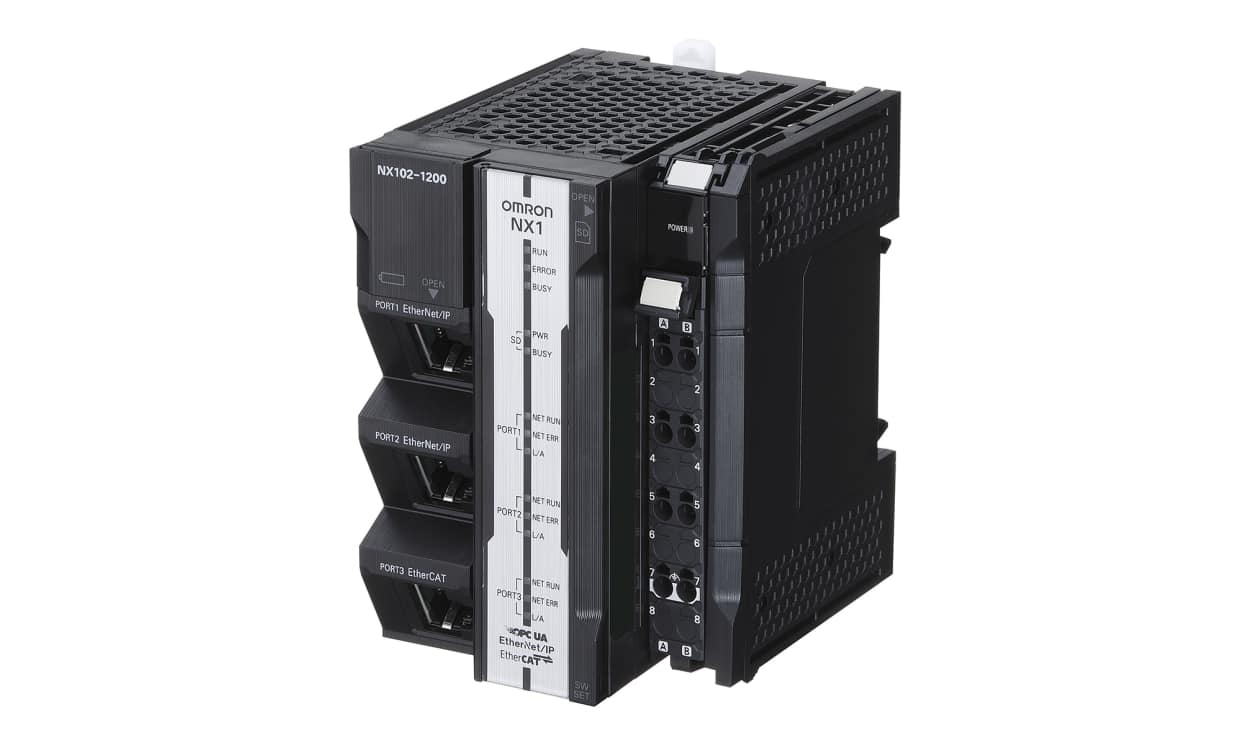

Omron NX102-1100, NX102 Series PLC CPU for Use with Machine Automation Controller NX1

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron NX102-1100, NX102 Series PLC CPU for Use with Machine Automation Controller NX1

Name: Omron NX102-1100, NX102 Series PLC CPU for Use with Machine Automation Controller NX1
Brand: OMRON
SKU: NX102-1100
Availability: OutOfStock

Part Number : NX102-1100

Sysmac NX1 Modular CPU, 5MB program and 33.5MB data memory , built-in EtherCAT (4 servo axes, 4 PTP axes, total 64 EtherCAT nodes), 2 Ethernet ports (OPC-UA and EtherNet/IP)

Availability: Sold out

Detailed Description
Specifications
Features

The NX1 can utilize information, take safety measures, and control quality while at the same time improving production efficiency through high-speed, high-precision control. This contributes to continuous improvement in productivity.

Fast and accurate control by synchronizing all machine devices with the PLC and Motion Engines
Three built-in industrial Ethernet ports
OPC UA server functionality
Up to 12 axes of control via EtherCAT
Up to 32 local NX I/O Units
DC power supply without battery backup
PLCopen Function Blocks for Motion Control allow users to create complex programs quickly and easily
Direct connection to a database, with no specia
unit, software, or middleware required (NX102-20)

Brand	Omron
Manufacturer Series	NX102
For Use With	Machine Automation Controller NX1
Voltage Category	24 V dc
Network Type	EtherCAT, EtherNet/IP
Width	90mm
Minimum Operating Temperature	0°C
Maximum Operating Temperature	+55°C
Dimensions	68.1 x 90 x 103 mm
Number of Communication Ports	3
Battery Backup	Yes
Programming Language Used	Ladder Diagram
Mounting Type	Panel Mount
Length	68.1mm
Depth	103mm
Program Capacity	5 MB
Programming Interface	Ethernet
Communication Port Type	RJ45

Sysmac NX1 Modular CPU, 5MB program and 33.5MB data memory , built-in EtherCAT (4 servo axes, 4 PTP axes, total 64 EtherCAT nodes), 2 Ethernet ports (OPC-UA and EtherNet/IP)
