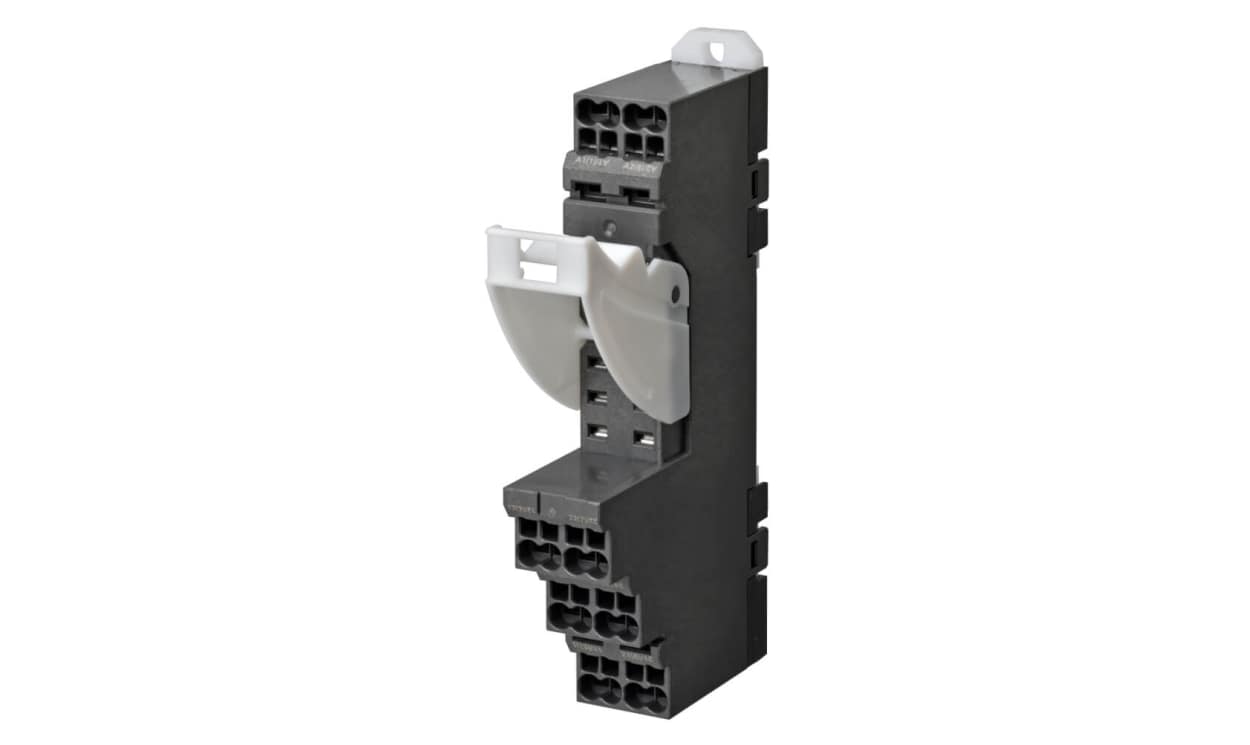

Omron P2RF-08-PU, G2R 8 Pin 250V ac DIN Rail Relay Socket, for use with G2R-2-S Series General Purpose Relay, H3RN Series Timer,

Name: Omron P2RF-08-PU, G2R 8 Pin 250V ac DIN Rail Relay Socket, for use with G2R-2-S Series General Purpose Relay, H3RN Series Timer,
Brand: OMRON
SKU: P2RF-08-PU
Availability: OutOfStock

Part Number : P2RF-08-PU

Socket, DIN rail/surface mounting, 15.5 mm, 8-pin, Push-in terminals

Availability: Sold out

Detailed Description
Specifications
Features

OMRON Relay Socket, 90 (H) x 15.5 (W) x 52.1mm (D), DIN Rail Mounting - P2RF Series - P2RF-08-PU

Need a trustworthy adaptor to carry signals between switches and your circuits? This OMRON relay socket does the job. It provides a physical structure to hold your relay, liquid leakage sensor or timer in place during operation. The unit also links the appliances' terminals to your network, streamlining your wiring needs. Its plastic housing gives you two-for-one performance by offering insulation to protect you from electric shock and impact resistance for use in harsh environments. You'll find sockets like this used with patient-connected devices in hospitals.

Features & Benefits

• Simple plug-in connection thanks to OMRON's Push-In Plus terminals
• Accommodates wire sizes between 20 and 16AWG for versatility
• Safe to use in challenging settings thanks to an operating temperature range between -40°C to +70°C
• Release lever for quick and easy switch replacement

Applications

• Renewable energy systems
• Building management
• Automotive industry

What other mounting method can I use to install this socket?

In addition to directly clipping this unit onto a DIN rail, you can also screw it onto the circuit panel if that's more convenient.

Brand	Omron
Voltage	250V ac
For Use With	G2R-2-S Series General Purpose Relay, H3RN Series Timer, KL7 Series Liquid Leakage Sensor
Accessory Type	Socket
Series	G2R
Number of Contacts	8
Mounting Type	DIN Rail
Current Rating	6A
Termination Type	Screw

Socket, DIN rail/surface mounting, 15.5 mm, 8-pin, Push-in terminals

Omron P2RF-08-PU, G2R 8 Pin 250V ac DIN Rail Relay Socket, for use with G2R-2-S Series General Purpose Relay, H3RN Series Timer,

Omron P2RF-08-PU, G2R 8 Pin 250V ac DIN Rail Relay Socket, for use with G2R-2-S Series General Purpose Relay, H3RN Series Timer,

OMRON Relay Socket, 90 (H) x 15.5 (W) x 52.1mm (D), DIN Rail Mounting - P2RF Series - P2RF-08-PU

Features & Benefits

Applications

What other mounting method can I use to install this socket?

Omron PT14, Socket, back-connecting, 14-pin, solder

Omron PTF-08-PU, LY 250V Chassis Mount Relay Socket, for use with 2 Pole PTF Series

Omron PYCM-08S, MY2 250V ac DIN Rail Relay Socket, for use with PYF Series Screwless Clamp Terminal Socket

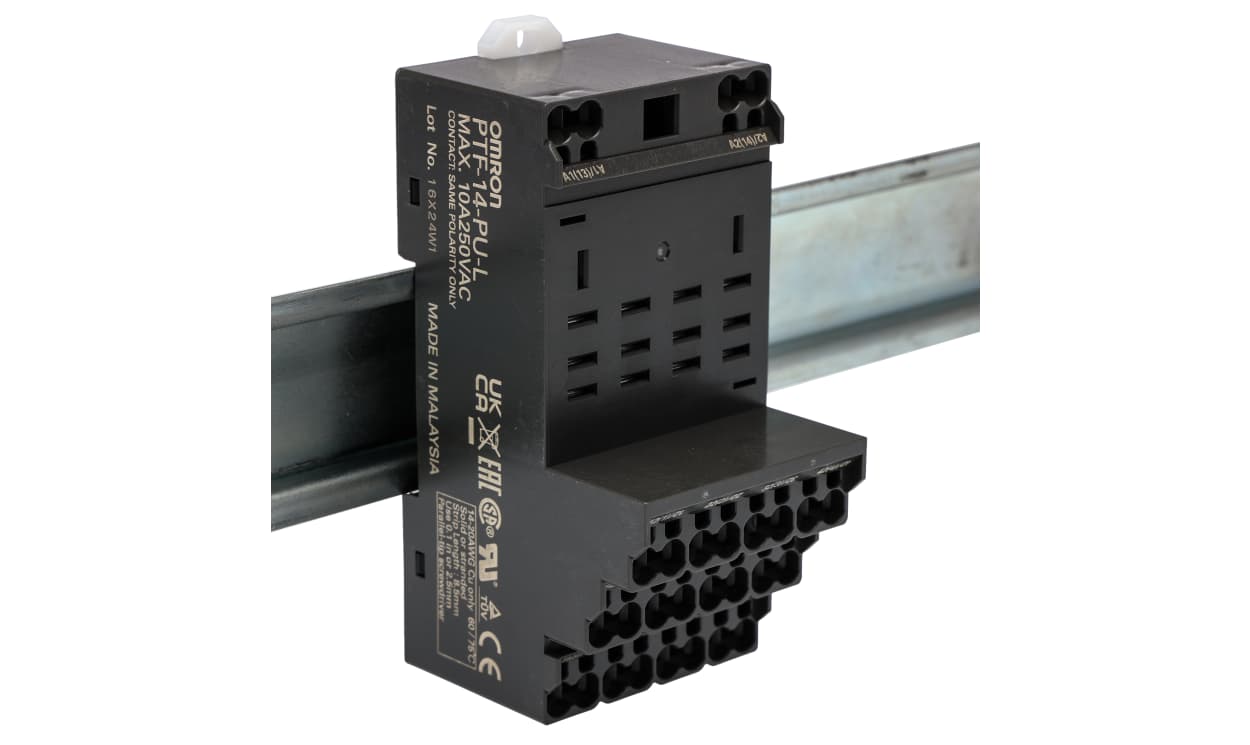

Omron PTF-14-PU-L, LY 250V Chassis Mount Relay Socket, for use with 4 Pole PTF Series
