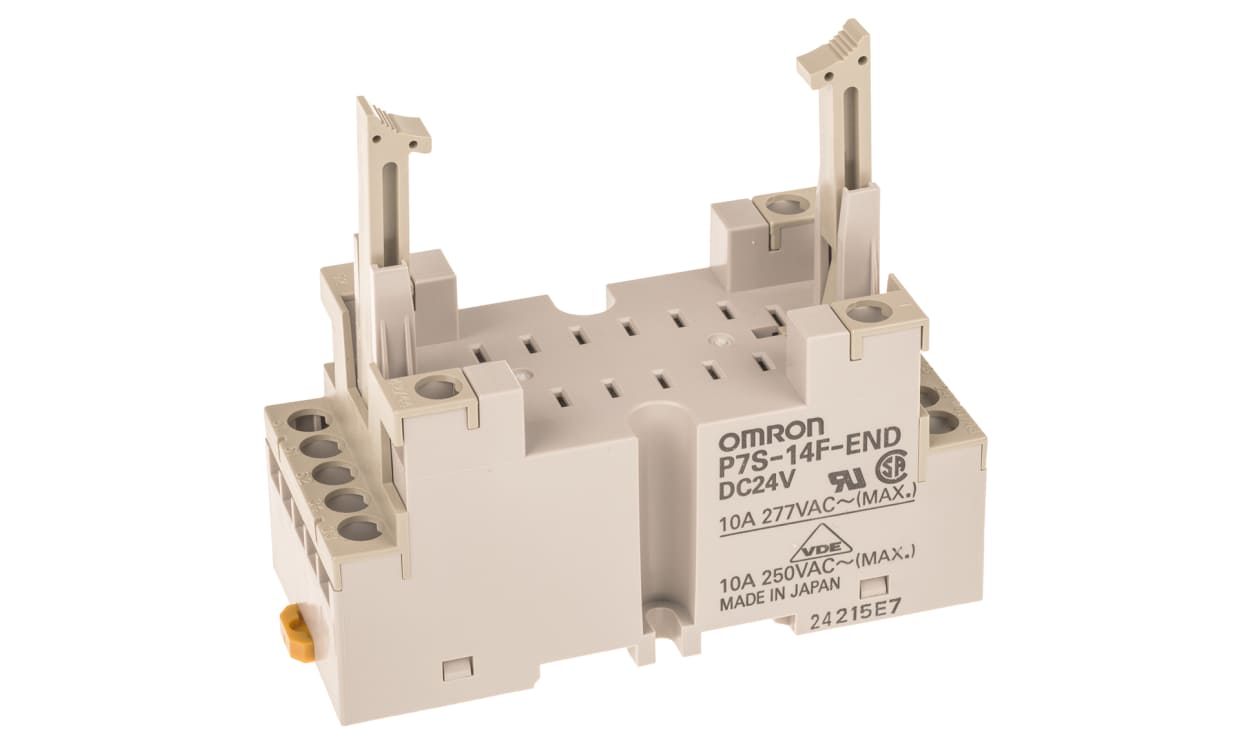

OMRON P7S-14F-END 24VDC | DIN Rail Relay Socket | 14 Pin, 24V dc, 10A

Name: OMRON P7S-14F-END 24VDC | DIN Rail Relay Socket | 14 Pin, 24V dc, 10A
Brand: OMRON
SKU: P7S-14F-END 24VDC
Availability: OutOfStock

Part Number : P7S-14F-END 24VDC

OMRON's P7S-14F-END 24VDC is a 14-pin DIN rail relay socket in the G7S series, combining a 10A current rating and a 24V dc voltage rating. Listed compatibility for P7S-14F-END 24VDC: G7S Series.

Number of pins: 14
Mounting type: DIN Rail
Current rating: 10A
Voltage: 24V dc
Series: G7S
For use with: G7S Series

Availability: in stock

Detailed Description
Specifications
Downloads

OMRON Relay Socket, 90.5 (H), 40 (W) x 80mm (D), 10A Current Rating - G7S Series - P7S-14F-END DC24

To securely mount a switch in your circuit, pop it into this 14-pin socket from OMRON. The unit's designed as the electrical interface between a relay from the G7S series and your PCB. It's a quick and simple way to achieve a stable connection. Thanks to its 10A current rating, you'll find this socket handy for devices like counters, timers and temperature controllers. An operating temperature range between -25°C and +70°C means it can handle the stresses of demanding work environments.

Features & Benefits

• Screw terminals hold conductors firmly, even in vibrating settings
• Integrated mounting holes for ease of installation
• Built-in clip enables tool-free retention and ejection

Applications

• Medical devices
• Pharmaceutical industry
• Robotics and automation systems
• Construction equipment

How do I mount this socket?

You can mount this socket in a jiffy by snapping it onto a DIN rail.

Can I tell the status of my relay from this socket?

Yes, you can tell the operating status of your relay when it's mounted in this socket thanks to the built-in contact indicator window.

Brand	Omron
Voltage	24V dc
For Use With	G7S Series
Accessory Type	Socket
Series	G7S
Number of Contacts	14
Current Rating	10A
Mounting Type	DIN Rail
