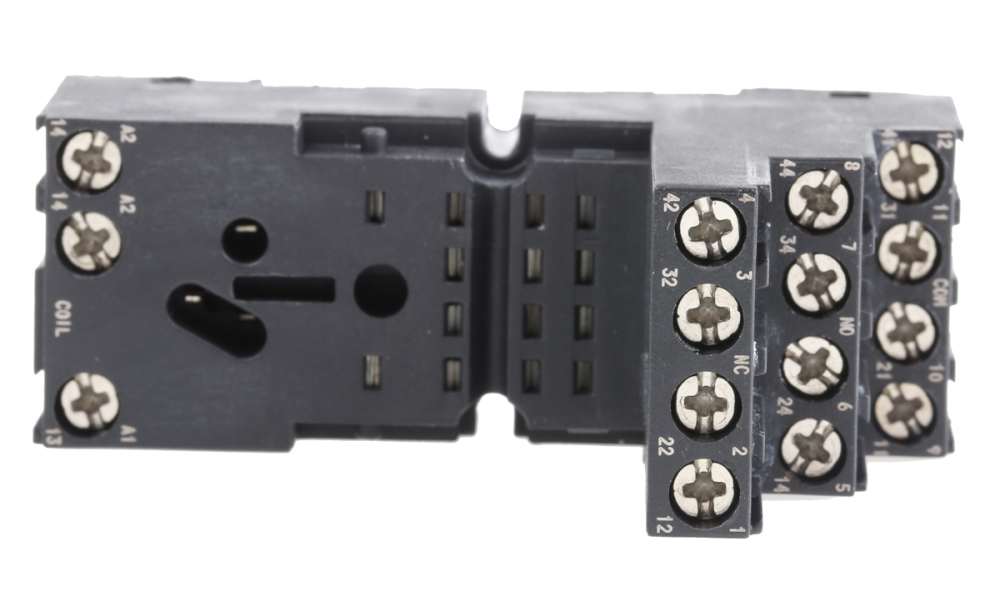

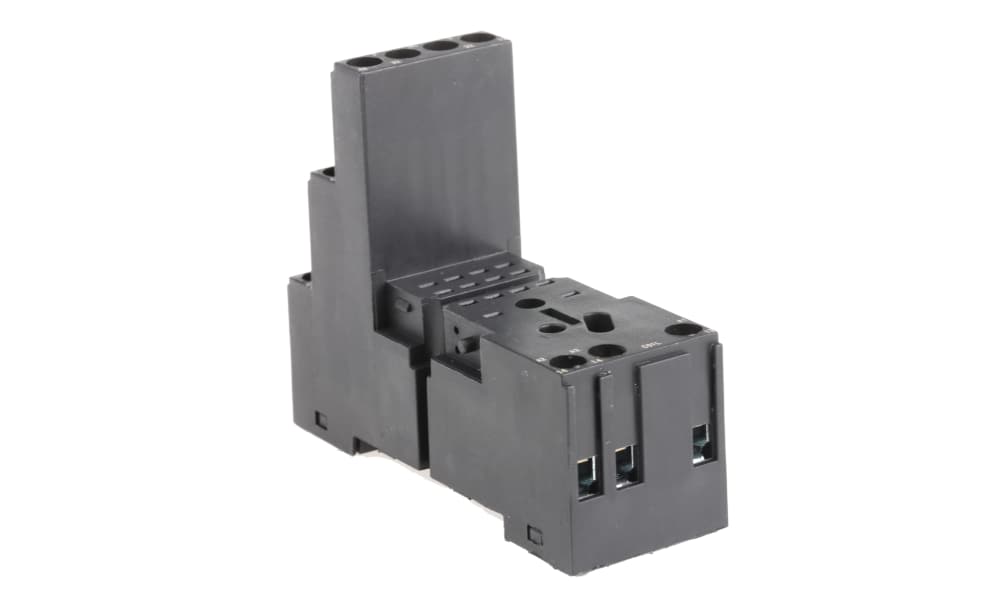

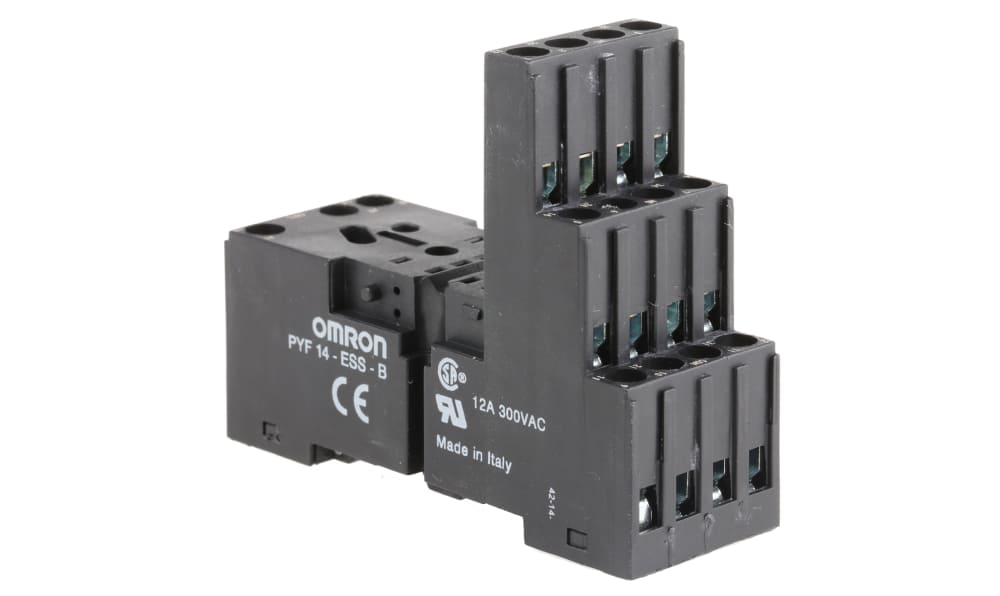

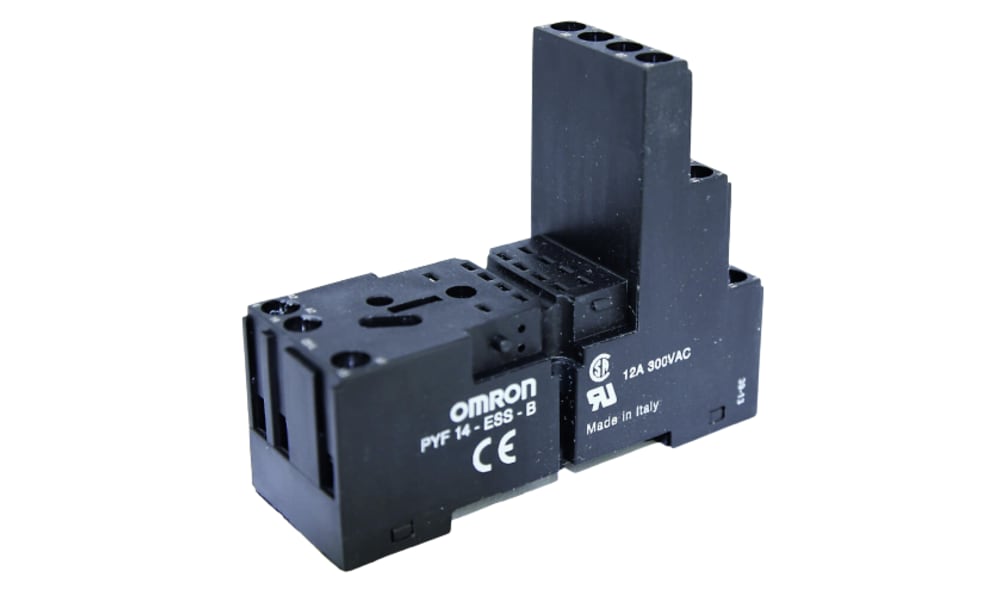

Omron PYF14-ESS-B, MY4 14 Pin 250V ac DIN Rail Relay Socket, for use with MY2, MY4 - generaltechuae

Client Protection

Dedicated Support

Client Protection

Dedicated Support

OMRON PYF14-ESS-B | DIN Rail Relay Socket | 14 Pin, Screw Terminals, 250V ac

Name: OMRON PYF14-ESS-B | DIN Rail Relay Socket | 14 Pin, Screw Terminals, 250V ac
Brand: OMRON
SKU: PYF14-ESS-B
Availability: OutOfStock

Part Number : PYF14-ESS-B

This 14-pin DIN rail relay socket in the MY4 series, OMRON part PYF14-ESS-B, comes with screw terminals, a 12A current rating and a 250V ac voltage rating. Compatible devices listed for PYF14-ESS-B: MY2, MY4.

Number of pins: 14
Mounting type: DIN Rail
Termination: Screw
Current rating: 12A
Voltage: 250V ac
Series: MY4

Availability: in stock

Detailed Description
Specifications
Downloads

PY Series DIN Rail Relay Sockets

Rising terminals mean secure clamping of up to 2 x 2.5mm cables per terminal
Choice of position for common terminals
Easy to use labelling facility that does not cover the screw terminals
Slim design, 27mm wide
Double terminal numbering
Creepage & clearance compliant to VDE 0110
Retaining clips available separately
Suitable for 8 and 14 pin Relays
Rated up to 12A and 300V
Operating temperature range -25 to + 85°C

OMRON Relay Socket, 83 (H) x 27 (W) x 61mm (D), 66g Weight - PYF Series - PYF14ESSB

Clamp relays to your electric circuit with this handy socket from OMRON. It's a front-mounting unit with rising terminals that accommodate 8-pin and 14-pin conductors. You can use this versatile piece of gear with a relay from the MY2 and MY4 ranges. A current rating of 12A makes it just the right fit to handle heavy-duty electrical systems like lighting fixtures and control panels. Mount it in a snap by clipping it to a DIN rail.

Features & Benefits

• Dielectric separation between terminals removes the need for insulating sheet
• Broad dimensions of 83 (H) x 27 (W) x 61mm (D) offer labelling space without blocking terminals
• Durable performance in harsh environments as it withstands operating temperatures between -25°C and +85°C

Applications

• Automotive manufacturing
• Agricultural equipment
• Power plants

What's the IP rating of this component?

It's IP20-rated, indicating it's touch-proof and keeps out dust or objects over 12mm in size.

How do I install a relay in this socket?

The socket has screw terminals, so you can pair it with your relay by screwing your wires to the unit's contact points.

Brand	Omron
Voltage	250V ac
For Use With	MY2, MY4
Accessory Type	Relay Socket
Series	MY4
Number of Contacts	14
Current Rating	12A
Mounting Type	DIN Rail
Termination Type	Screw

OMRON PYF14-ESS-B | DIN Rail Relay Socket | 14 Pin, Screw Terminals, 250V ac

DOWNLOAD CATALOG

PYF14-ESS-B Datasheet - PYF14ESSB A700000010360950
