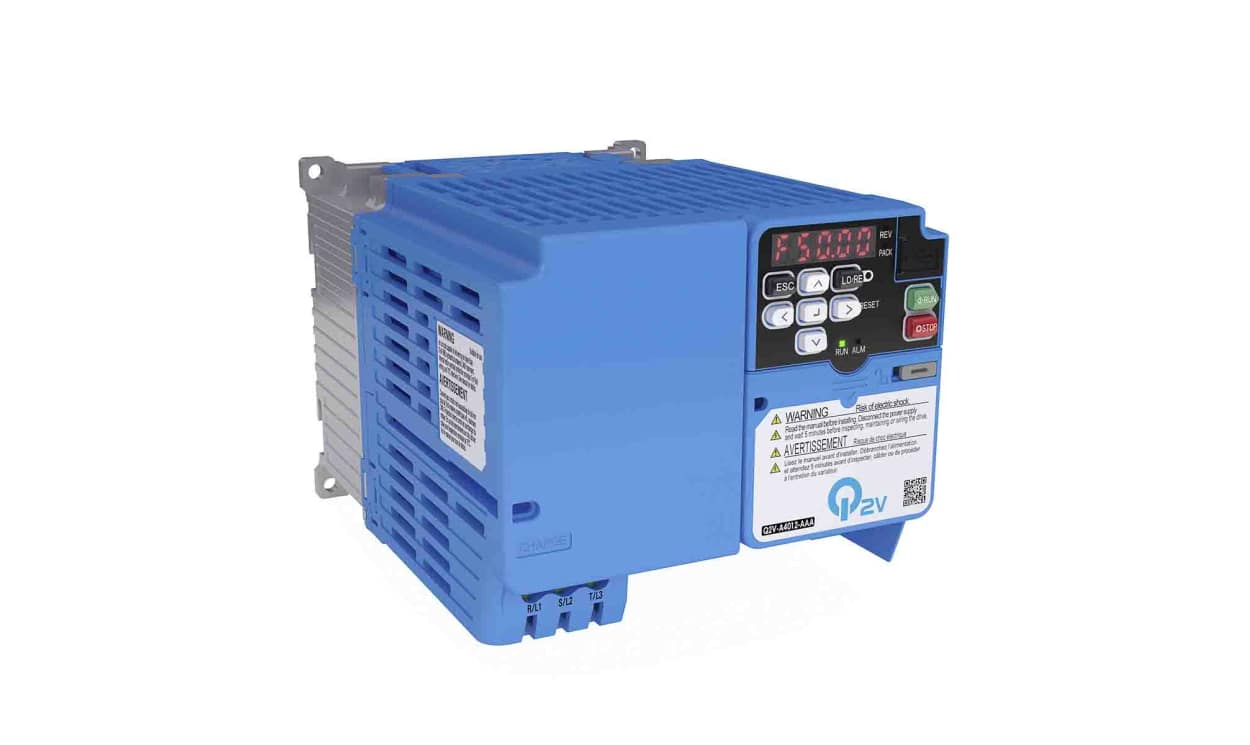

Omron Q2V-AB012-AAA, Inverter Drive, 3 kW, 1 Phase, 200 V ac, 12.2 A, Q2V Series

Name: Omron Q2V-AB012-AAA, Inverter Drive, 3 kW, 1 Phase, 200 V ac, 12.2 A, Q2V Series
Brand: OMRON
SKU: Q2V-AB012-AAA
Availability: OutOfStock

Part Number : Q2V-AB012-AAA

Availability: Sold out

Detailed Description
Specifications
Downloads

Easy installation & setup
Reduce cabinet size with side by side mounting without derating
Screwless terminals safe wiring installation time
Hardware simplification thanks to built-in EMC filter, safety STO and braking transistor
24 VDC power supply input for control board
Intelligent application wizard for quick set up
Mobile app for set up and monitoring
Optional graphical LCD display with SD card for trace-recording
Application versatility
Flexible motor control - IM, PM, SynRM
V/f and Sensorless vector (current/voltage) motor control methods
Speed and torque control in open loop
Customized functions with application wizards
Q2dev: Graphic development tool allows you to create your program
Proven robustness
Coated PCB boards as standard protect the electronics from dust and humidity
Designed for 10 years without maintenance
Working operation up to 50 degrees without derating

Brand	Omron
Power Rating	3 kW
Phase	1
Supply Voltage	200 V ac
Current Rating	12.2 A
For Use With	Induction or Asynchronous Motor, Permanent Magnet Motor, Synchronous Reluctance Motor
Series	Q2V
Field Bus Communication Type	CANopen, DeviceNet, EtherCAT, Ethernet/IP, Modbus TCP/IP, Powerlink, Profibus, Profinet, RS-485
IP Rating	IP20
Output Frequency	590Hz
STO	Yes
Drive Type	Vector Control
Mounting Type	Wall Mount
Filter Included	Yes
Overall Width	203mm
Function	Motor Control, Open Loop Speed Control, Open Loop Torque Control
Overall Depth	128mm
Overall Length	140mm
Interface	Bluetooth, Ethernet
