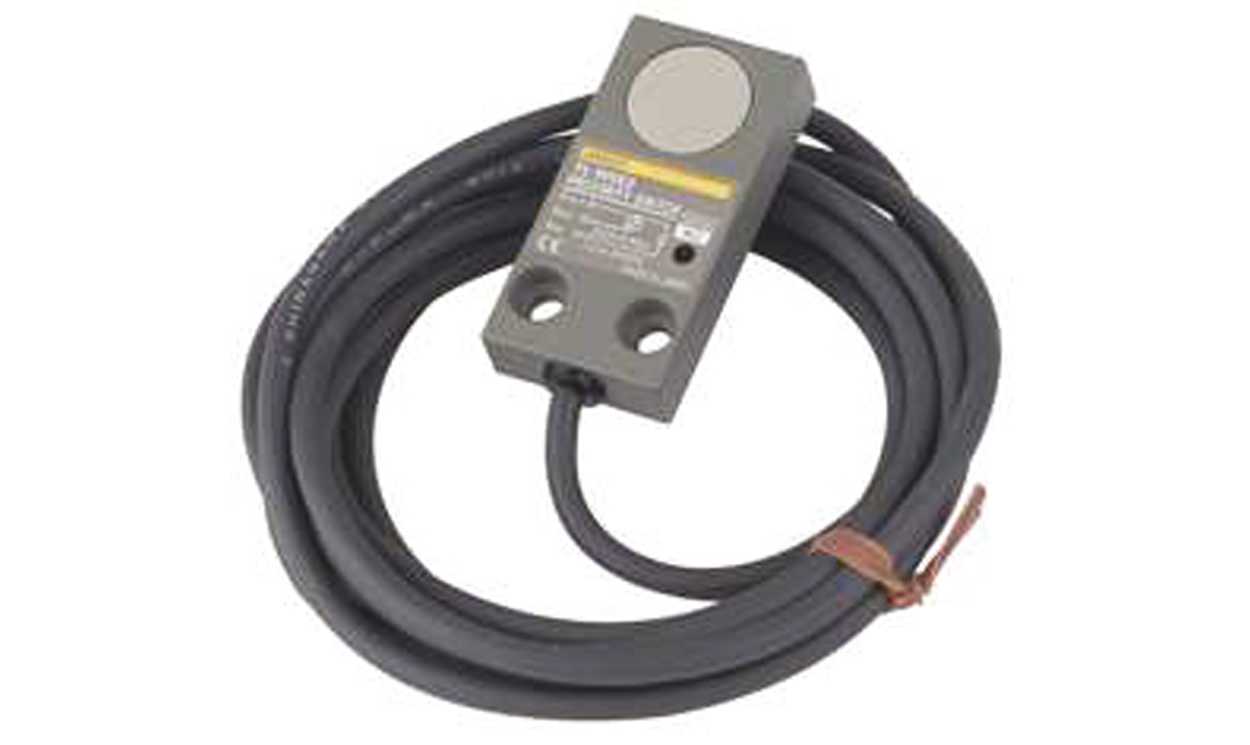

Omron TL-W5E2, Rectangular-Style Proximity Sensor, 5 mm Detection, NPN-NC Output, 12 → 24 V dc, IP67
- Detailed Description
- Specifications
TL-W Standard Flat Inductive Sensors
Features and benefits
Heat resistant ABS casing
Protection circuit: load short circuit protection, surge suppressor
Temperature range -25 → 70 °C
IP67 ingress protection
| Brand | Omron |
| Body Style | Rectangular |
| Output Type | NPN-NC |
| Detection Range | 5 mm |
| Terminal Type | Pre-Wired |
| Supply Voltage | 12 → 24 V dc |
| IP Rating | IP67 |
| Length | 50mm |
| Width | 24.9mm |
| Depth | 10mm |
| Maximum DC Voltage | 30V |
| Switching Current | 200 mA |
| Maximum Switching Frequency | 300Hz |
| Shielding | Shielded |
| Housing Material | Die Cast Aluminum |
| Maximum Operating Temperature | +70°C |
| Reverse Polarity Protection | Yes |
| Minimum Operating Temperature | -25°C |
