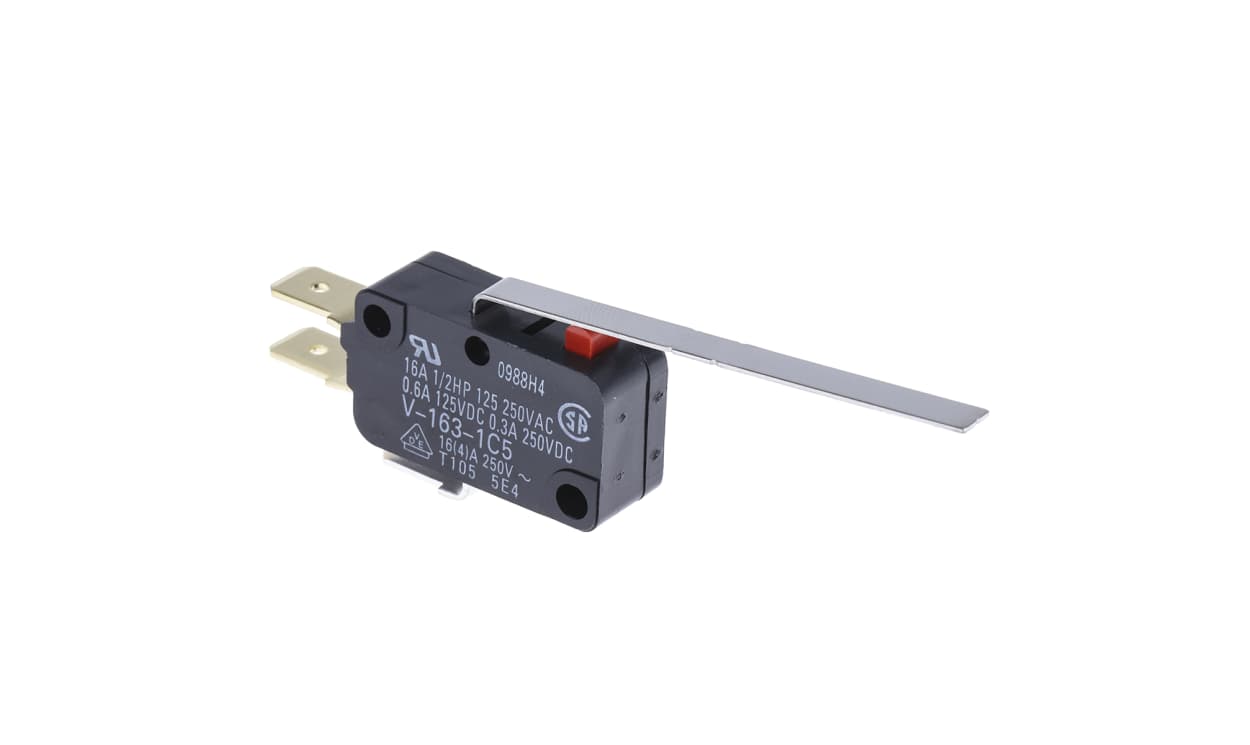

OMRON V-163-1C5 | Long Leaf Lever Micro Switch | 16 A @ 250 V AC, SPDT, Tab Terminal
OMRON V-163-1C5 is a long leaf lever micro switch with tab terminals, offering an SPDT contact with a 16 A at 250 V AC rating. For this long leaf lever version OMRON lists an operating force of 1.96 N, a release force of 0.06 N and silver alloy contacts, plus IP40 protection.
- Actuator: Long Leaf Lever
- Terminals: Tab
- Contact: SPDT, rated 16 A at 250 V AC
- Protection: IP40
- Operating temperature: -25 to +80 °C
- Mechanical life: 50,000,000 operations
- Detailed Description
- Specifications
- Features
- Downloads

Omron Microswitch
Features and Benefits
Mechanical life of 500000000 operations
Operating temperature is between -25°C and 80°C
Certifications
| Brand | Omron |
| Actuator Type | Long Leaf Lever |
| Terminal Type | Tab |
| Contact Configuration | SPDT |
| IP Rating | IP40 |
| Contact Current Rating | 16 A @ 250 V ac |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Contact Material | Silver Alloy |
| Mechanical Life | 50000000Operations |
| Operating Temperature Range | -25 → +80 °C (-13 to 176 °F) |
| Operating Force | 1.96 N |
| Release Force | 0.06N |
Miniature basic switch
