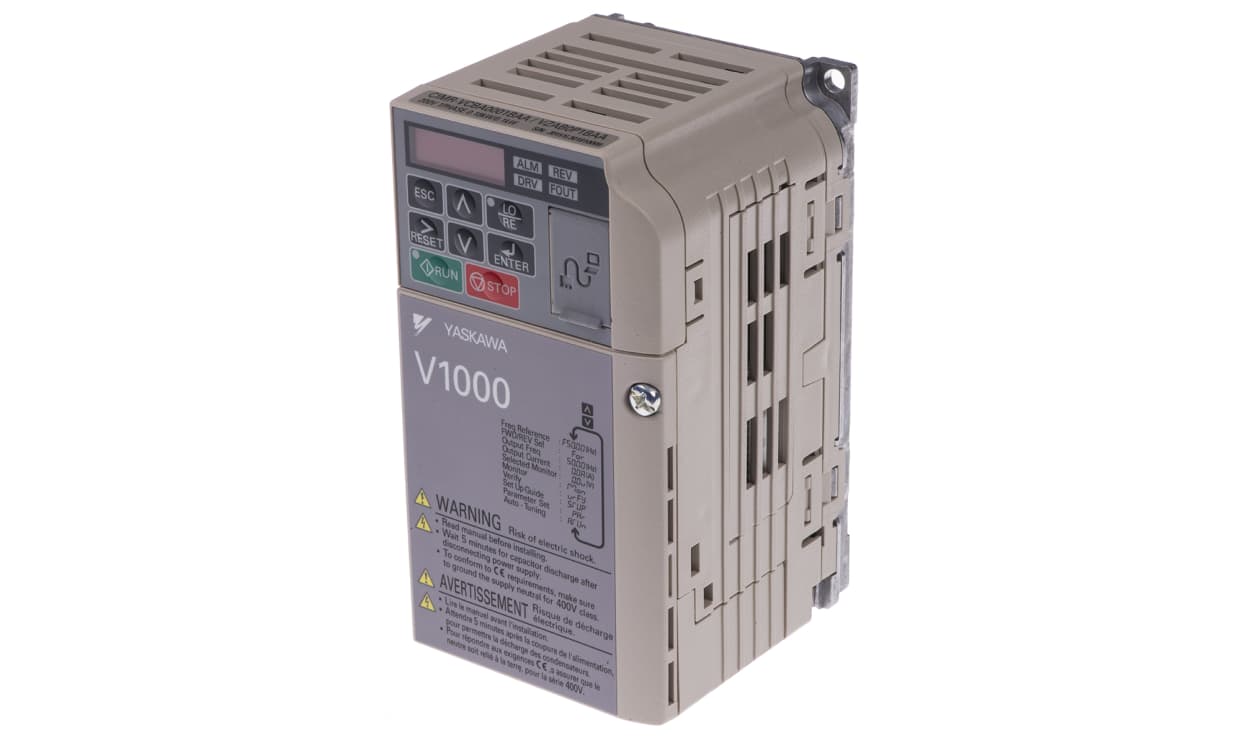

OMRON VZAB0P1BAA | V1000 Series Inverter Drive | 0.18 kW, 1-Phase 230 V

Name: OMRON VZAB0P1BAA | V1000 Series Inverter Drive | 0.18 kW, 1-Phase 230 V
Brand: OMRON
SKU: VZAB0P1BAA
Availability: OutOfStock

Part Number : VZAB0P1BAA

This 0.18 kW OMRON inverter drive, part number VZAB0P1BAA, is a V1000 series model for 1-phase 230 V mains (800 mA current rating). Profibus communication is listed for the VZAB0P1BAA.

Power rating: 0.18 kW
Supply: 1-phase 230 V
Rated current: 800 mA
Output frequency: 0.1 to 400 Hz
Protection: IP20
Dimensions: width 68 mm, length 128 mm, depth 76 mm

Availability: in stock

Detailed Description
Specifications
Downloads

V1000 Inverter - Single Phase and Three Phase

Current vector control
High starting torque (200%/0.5Hz)
1:100 speed control range
Double rating ND 120%/1min and HD 150%/1min
IM & PM motor control
Online Tuning
Low-noise, low-carrier technology
10 years lifetime design
Built-in filter
Screwless terminals
Control terminals with memory backup
24Vdc control board power supply option
Fieldbus communications: Modbus, Profibus, CanOpen, DeviceNet, Lonworks, CompoNet, Ethernet
Safety embedded (EN954-1 safety cat. 3)
CE, UL, cUL and TUV

Omron V1000

Brand	Omron
Power Rating	0.18 kW
Phase	1
Supply Voltage	230 V
Current Rating	800 mA
Series	V1000
Field Bus Communication Type	Profibus
IP Rating	IP20
Output Frequency	0.1 → 400Hz
Control Panel	Yes
Overall Width	68mm
Overall Length	128mm
Overall Depth	76mm
