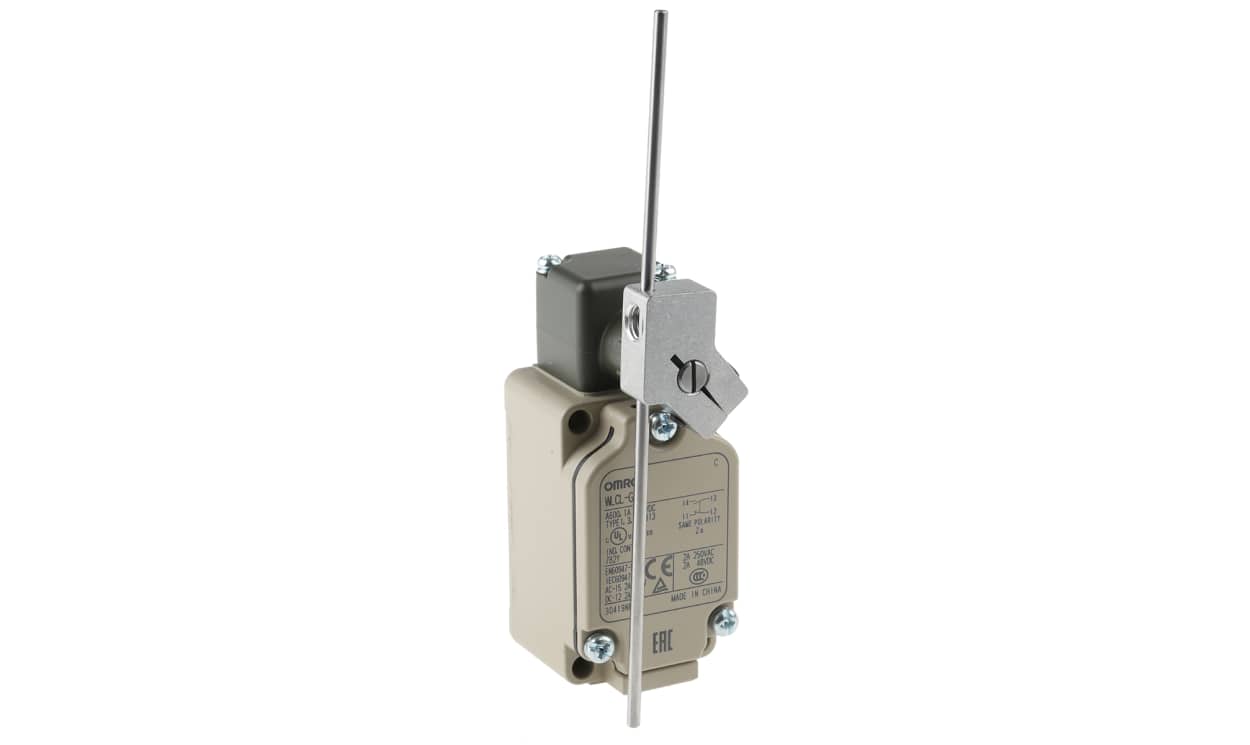

OMRON WLCL-G-N | WL Rod Limit Switch | 1NO/1NC, DPST, Aluminium Alloy, G1/2
Rated 2 A max at 250 V AC, the OMRON WLCL-G-N is a WL series rod limit switch with 1NO/1NC contacts. Its listing adds an IP67 rating, an aluminium alloy housing, a G1/2 connection and an operating range of -10 to +80 °C.
- 1NO/1NC contact configuration; DPST pole and throw, double-break operation
- Maximum current: 2 A; maximum voltage: 250 V AC / 48 V DC
- IP67 enclosure rating; aluminium alloy housing; G1/2 connection
- Dimensions: 94.1 mm × 40 mm × 55 mm (L × W × D)
- Operating temperature: -10 to +80 °C
- Mechanical life: 15,000,000 operations
- Detailed Description
- Specifications
- Downloads
Omron Series WL Limit Switch, Rod Actuator, IP67 - WL-CL-GN
Features & Benefits
• Aluminium alloy housing combines strength with a lightweight design
• Operates in a temperature range of -10°C to +80°C for versatile applications
• Double break functionality enhances safety
• Rod actuator type allows for various mounting configurations
• Mechanical lifespan of 15 million operations minimises maintenance requirements
Applications
• Used for position detection on conveyor belts
• Effective for high-frequency operations in manufacturing
• Employed in processes involving arc welding
What is the maximum load the switch can handle?
How do I install this switch?
Can it be used in outdoor environments?
What is its lifespan?
| Brand | Omron |
| Series | WL |
| Actuator Type | Rod |
| IP Rating | IP67 |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | 1NO/1NC |
| Maximum Current | 2A |
| Maximum AC Voltage | 250V |
| Action Type | Double Break |
| Housing Material | Aluminium Alloy |
| Length | 94.1 mm (3.70 in) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Width | 40 mm (1.57 in) |
| Depth | 55 mm (2.17 in) |
| Minimum Operating Temperature | -10 °C (14 °F) |
| Mechanical Life | 15000000Operations |
| Maximum DC Voltage | 48V |
| Connection Type | G1/2 |
| Standards Met | CE |
| Mounting Orientation | Side |
