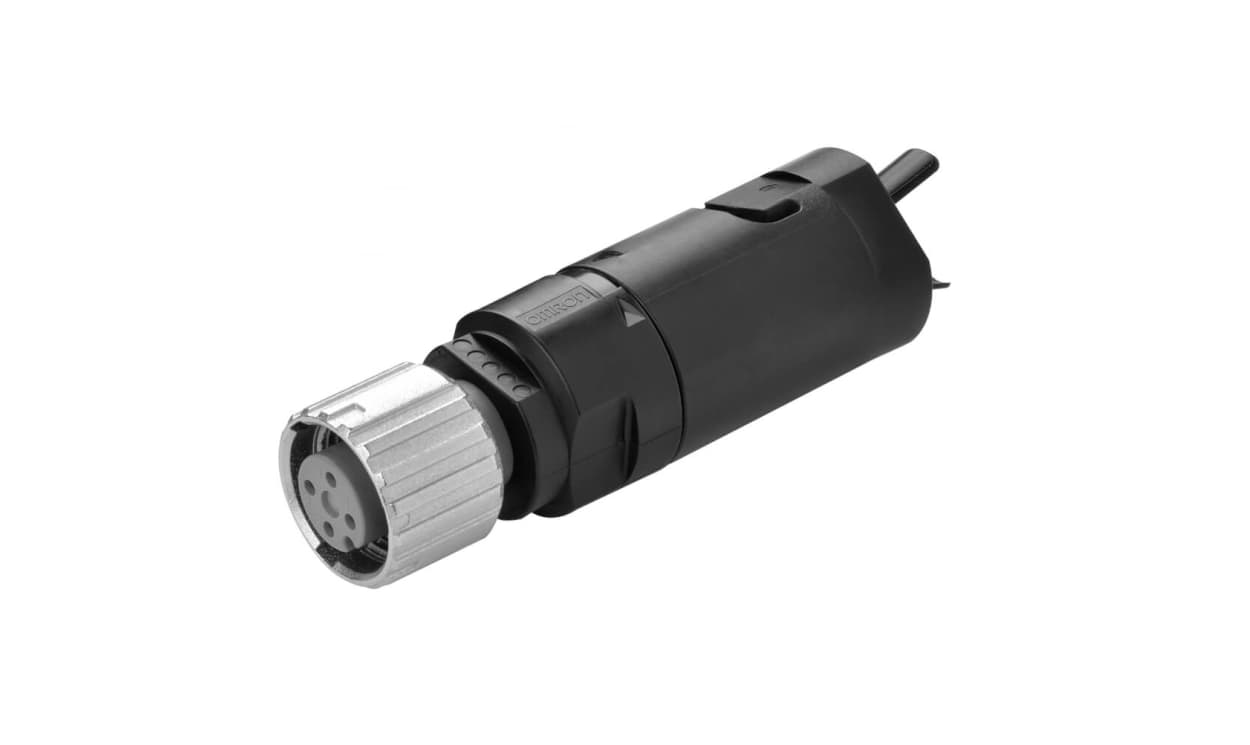

Omron XS5C-D418, Circular Connector, 4 Contacts, Cable Mount, M12 Connector, Socket, Female, IP67, XS5 Series

Name: Omron XS5C-D418, Circular Connector, 4 Contacts, Cable Mount, M12 Connector, Socket, Female, IP67, XS5 Series
Brand: OMRON
SKU: XS5C-D418
Availability: OutOfStock

Part Number : XS5C-D418

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron XS5 Series Circular Connector, 4 Contacts, IP67 - XS5C-D418

This circular connector is designed for cable-mounted applications, featuring a robust female socket configuration. With an impressive IP67 rating, it ensures protection against dust and immersion in water, making it suitable for demanding environments. The connector is constructed from thermoplastic housing, facilitating reliable connections in industrial settings, and is engineered for solder termination, ensuring secure and stable connectivity.

Features & Benefits

• 4 contact connector supporting a current rating of 4A
• High-voltage operation up to 250V for versatile use
• Female socket design ensures compatibility with M12 connections
• Thermoplastic housing withstands harsh environmental conditions

Applications

• Utilised in factory automation and sensor
• Ideal for use in robotics and industrial machinery
• Suitable for outdoor installations with potential exposure to water
• Used in electronics where secure solder connections are needed

What temperature range can this connector operate in without failure?

The connector operates effectively within a temperature range of -25°C to +70°C, making it suitable for various environments, from chilly conditions to high heat.

How does the IP67 rating benefit industrial applications?

The IP67 rating ensures the connector is dust-tight and can withstand immersion in water, reducing maintenance needs and enhancing reliability in challenging environments.

What termination method is employed, and why is it advantageous?

The solder termination method provides strong and stable connections, suitable for applications where secure electrical integrity is crucial, especially in areas subjected to vibration or movement.

Brand	Omron
Number of Contacts	4
Mounting Type	Cable Mount
Connector Size	M12
Plug/Socket	Socket
Contact Gender	Female
Termination Method	Solder
IP Rating	IP67
Current Rating	4.0A
Series	XS5
Body Orientation	Straight
Voltage Rating	250.0 V
Coding	A
Mating Type	Lock
Housing Material	Thermoplastic
Contact Plating	Nickel Plated
Outer Diameter	3 → 8mm
Minimum Operating Temperature	-25°C
Contact Material	Copper Alloy
Maximum Operating Temperature	+70°C
