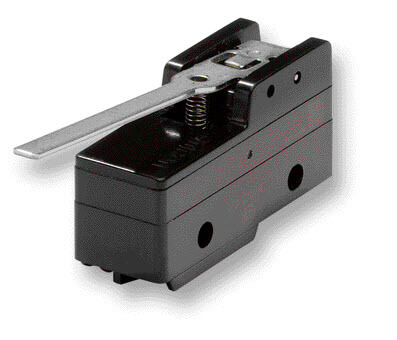

OMRON Z-15GM22-B | Z Series Reverse Short Hinge Roller Lever Basic Switch | Reverse Short Hinge Roller Lever, Micro Load 0.25 mm Gap
The Z-15GM22-B is a general-purpose basic switch from the OMRON Z series with a reverse short hinge roller lever. It is in the micro load group with a 0.25 mm contact gap. It is used for position detection on machines.
Key features
- Reverse short hinge roller lever actuator
- Micro load type with 0.25 mm (H) contact gap
- Reverse type keeps the pin plunger pressed by coil springs for high vibration and shock resistance
- Z-15 series operating temperature -25 to 80 degC
- Z-15 series dielectric strength 2,000 VAC (1 min) between live parts and ground
- Specifications
- Features
- Downloads
| Part Number | Z-15GM22-B |
| Brand | OMRON |
| Series | Z (Z-15) |
| Actuator Type | Reverse short hinge roller lever |
| Contact Gap | H (0.25 mm), micro load |
| Operating Temperature (Z-15 Series) | -25 to 80 degC |
| Dielectric Strength (Z-15 Series) | 2,000 VAC, 1 min (live parts to ground) |
General-purpose Basic Switch, 15A, reverse short hinge roller lever, screw terminal
