Omron Z-15GQ22A55-B5V, Roller Plunger Limit Switch, NO/NC, IP62, SPDT, 500V ac Max, 15A Max

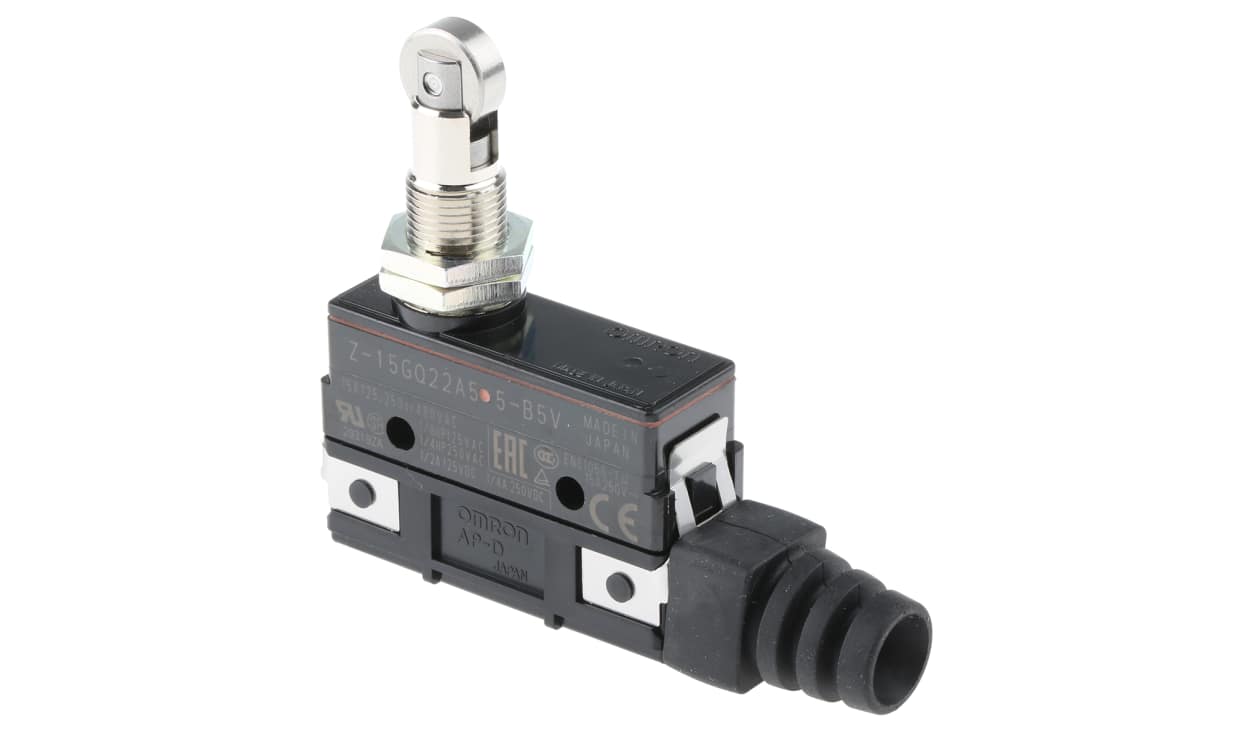

Name: Omron Z-15GQ22A55-B5V, Roller Plunger Limit Switch, NO/NC, IP62, SPDT, 500V ac Max, 15A Max
Brand: OMRON
SKU: Z-15GQ22A55-B5V
Availability: OutOfStock

Part Number : Z-15GQ22A55-B5V

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Limit Switch, Roller Plunger Actuator, IP62 - Z-15GQ22A55-B5V

This limit switch is designed for precise control in automation systems, offering reliable actuation based on mechanical inputs. Its functionality contributes to the safety and reliability of equipment across various electrical and mechanical applications.

Features & Benefits

• Snap action feature for precise switching
• Maximum current rating of 15A for versatile use
• IP62 rating for improved dust and water protection
• Mechanical life of 20 million operations for durability
• SPDT configuration allows for flexible circuit designs

Applications

• Suitable for conveyor systems for accurate position sensing
• Recommended for packaging machinery in operational control
• Industrial automation equipment for reliability and safety

What is the operating temperature range for this switch?

It operates efficiently between -25°C and +80°C.

How can this switch be mounted in any application?

The switch can be mounted using standard mounting holes or fittings provided with the unit.

Is this switch suitable for use with AC and DC circuits?

Yes, it can handle AC up to 500V and DC up to 250V.

Brand	Omron
Actuator Type	Roller Plunger
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP62
Maximum Current	15A
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Action Type	Snap Action
Length	81.6mm
Width	35.5mm
Maximum Operating Temperature	+80°C
Standards Met	CCC, CE, CSA, UL
Minimum Operating Temperature	-25°C
Depth	17.45mm
Mechanical Life	20000000Operations

Omron Z-15GQ22A55-B5V, Roller Plunger Limit Switch, NO/NC, IP62, SPDT, 500V ac Max, 15A Max

DOWNLOAD CATALOG

Z-15GQ22A55-B5V Z-Series Basic Switches Datasheet 0900766b8160dd6b
