Omron Z-15GW2, Z Series Roller Lever Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max

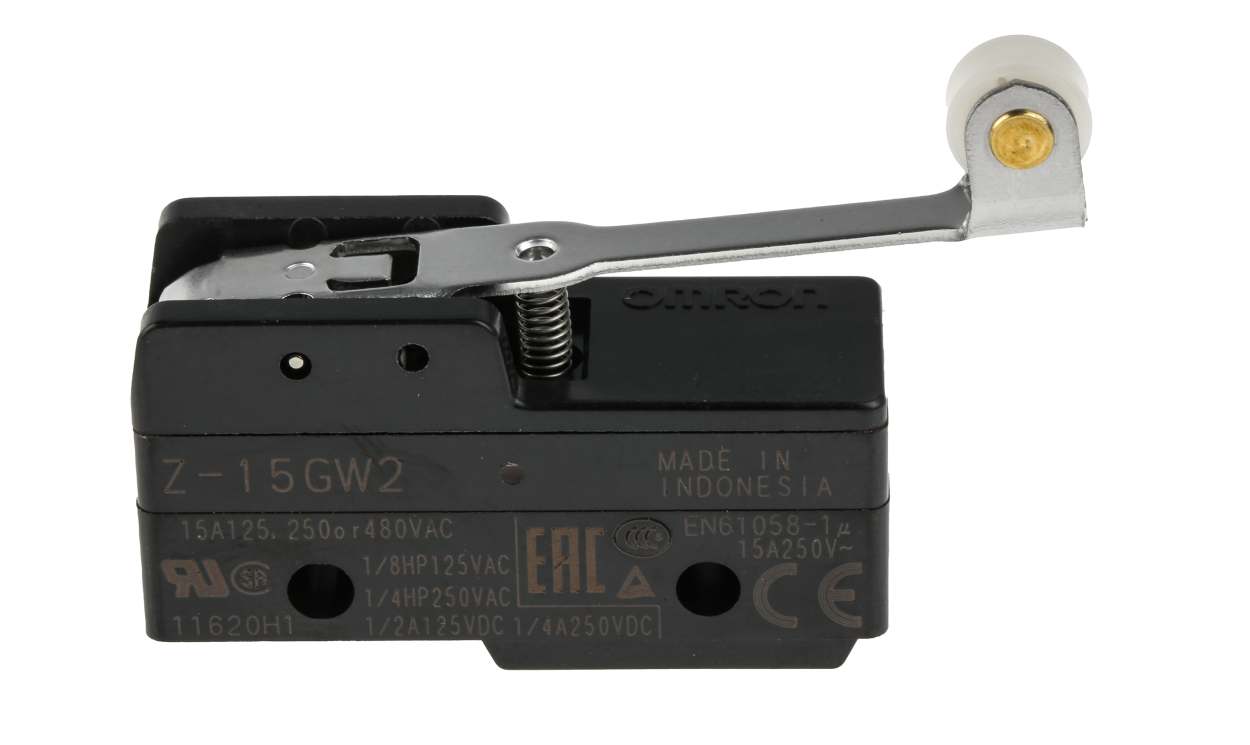

Name: Omron Z-15GW2, Z Series Roller Lever Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max
Brand: OMRON
SKU: Z-15GW2
Availability: OutOfStock

Part Number : Z-15GW2

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Limit Switch, IP00 IP Rating, 500V Maximum AC Voltage - Z-15GW2

This limit switch offers a high precision basic switch in a variety of styles, designed with a roller lever actuator to ensure efficient action. The use of solder connection and thermosetting resin housing materials enhances the durability and reliability of the switch. With an IP00 rating, this switch is suitable for a wide range of operating conditions, making it versatile and robust.

Features & Benefits

• Snap action roller lever switch for quick and reliable operation
• Solder connection ensures secure electrical connections
• Thermosetting resin housing for durability and protection
• IP00 rating for resistance to dust and debris
• High voltage capacity for versatile applications
• Roller lever design for smooth and precise actuation
• Long mechanical life for extended operational use
• Wide temperature range from -25°C to +80°C for adaptability
• SPDT pole and throw configuration for flexible switching options

Applications

• Suitable for industrial automation systems
• Ideal for use in electrical control panels
• Can be used for machinery and equipment in mechanical industries
• Great for applications requiring precise position sensing

Can it withstand high temperatures?

Yes, it has a maximum operating temperature of +80°C.

Will it work in dusty environments?

Yes, the switch is IP00 rated, providing protection against dust.

Is it suitable for high voltage applications?

Yes, this switch has a maximum AC voltage of 500 V and a maximum DC voltage of 250 V.

Brand	Omron
Actuator Type	Roller Lever
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP00
Maximum Current	15A
Housing Material	Thermosetting Resin
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Connection Type	Solder
Series	Z
Action Type	Snap Action
Length	49.2mm
Maximum Operating Temperature	+80°C
Width	39.4mm
Depth	17.45mm
Standards Met	CSA Certified
Minimum Operating Temperature	-25°C
Mechanical Life	20000000Operations
