Omron Z-15GW21-B, Lever Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max

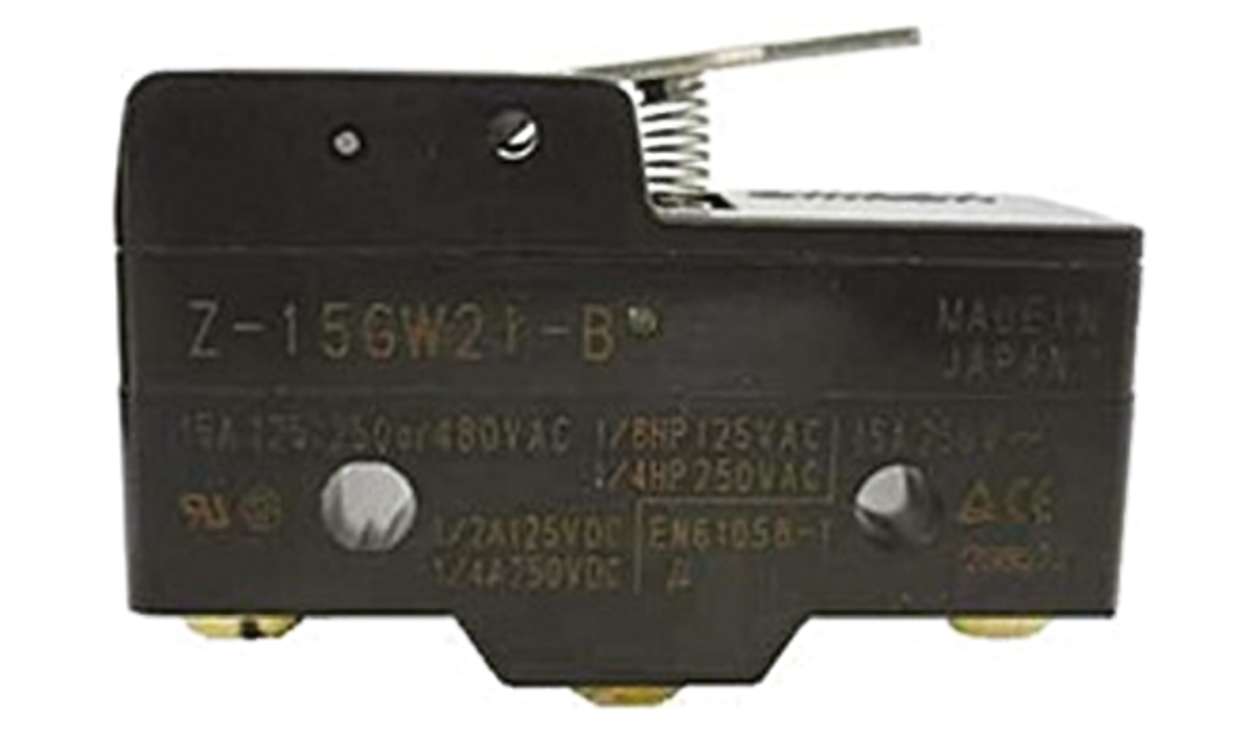

Name: Omron Z-15GW21-B, Lever Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max
Brand: OMRON
SKU: Z-15GW21-B
Availability: OutOfStock

Part Number : Z-15GW21-B

General purpose basic switch, short hinge lever, SPDT, 15 A

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Z15 Series – Basic Switch

The Z series of basic switches from Omron are in plastic housing however still provide the same electrical and mechanical switching capability and lifetime as standard limit switches. These basic switches are ideal for use in uncritical environments or when separately encased in subassemblies.

High precision basic switch in a wide range of variations
Large switching capacity of 15A with high repeat accuracy
Contact configuration: SPDT
Contact rating: 250Vac 15A, 14Vdc 15A
Contact Gap either 0.5mm (Standard) or 1.8mm (High Capacity)

Approvals

UL recognised, CSA

Brand	Omron
Actuator Type	Lever
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP00
Maximum Current	15A
Housing Material	Thermosetting Resin
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Connection Type	Screw
Action Type	Snap Action
Length	49.2mm
Depth	17.45mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
Width	29.4mm
Mechanical Life	20000000Operations

General purpose basic switch, short hinge lever, SPDT, 15 A
