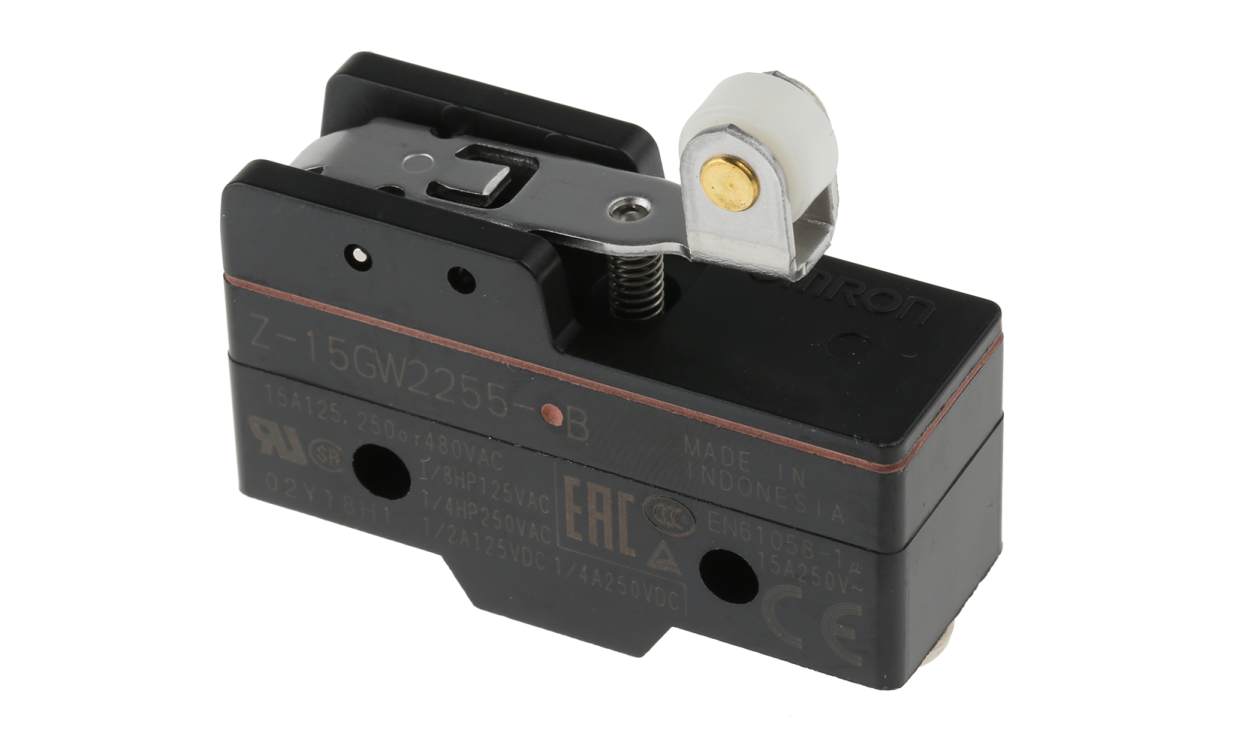

OMRON Z-15GW2255-B | Roller Lever Limit Switch | SPDT, 15 A, IP62
Specified with an IP62 rating, a 15 A maximum current and a 500 V AC maximum voltage, the OMRON Z-15GW2255-B is a roller lever limit switch. The Z-15GW2255-B switches through an SPDT (NO/NC) snap-action contact.
- Maximum voltage: 500 V AC / 250 V DC
- Housing material: thermosetting resin
- Connection: screw
- Dimensions: 49.2 x 39.4 x 17.45 mm (L x W x D)
- Operating temperature: -15 to +80 °C
- Mechanical life: 20,000,000 operations
- Detailed Description
- Specifications
- Downloads
Omron Limit Switch, Roller Lever Actuator, IP62 - Z-15GW2255-B
Features & Benefits
• SPDT configuration provides versatile connectivity options
• Maximum current rating of 15A supports heavy-duty applications
• IP62 rating protects against dust and moisture
• Operating temperature range of -15°C to +80°C accommodates various environments
• Mechanical life rated for 20 million operations ensures durability
Applications
• Commonly employed in conveyor systems for limit detection
• Ideal for control panels requiring dependable switching
What type of connection does it support for installation?
Is there a specific type of actuator that maximises its effectiveness?
| Brand | Omron |
| Actuator Type | Roller Lever |
| IP Rating | IP62 |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| Maximum Current | 15A |
| Maximum AC Voltage | 500V |
| Action Type | Snap Action |
| Housing Material | Thermosetting Resin |
| Length | 49.2 mm (1.94 in) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Width | 39.4 mm (1.55 in) |
| Depth | 17.45 mm (0.687 in) |
| Minimum Operating Temperature | -15 °C (5 °F) |
| Mechanical Life | 20000000Operations |
| Maximum DC Voltage | 250V |
| Connection Type | Screw |
| Standards Met | CCC, CE, CSA, UL |
