Palmer Wahl 18_12_Recorder | Aluminium Case Pressure Circular Chart Recorder | 8 or 12 in
Part Number : 18_12_Recorder

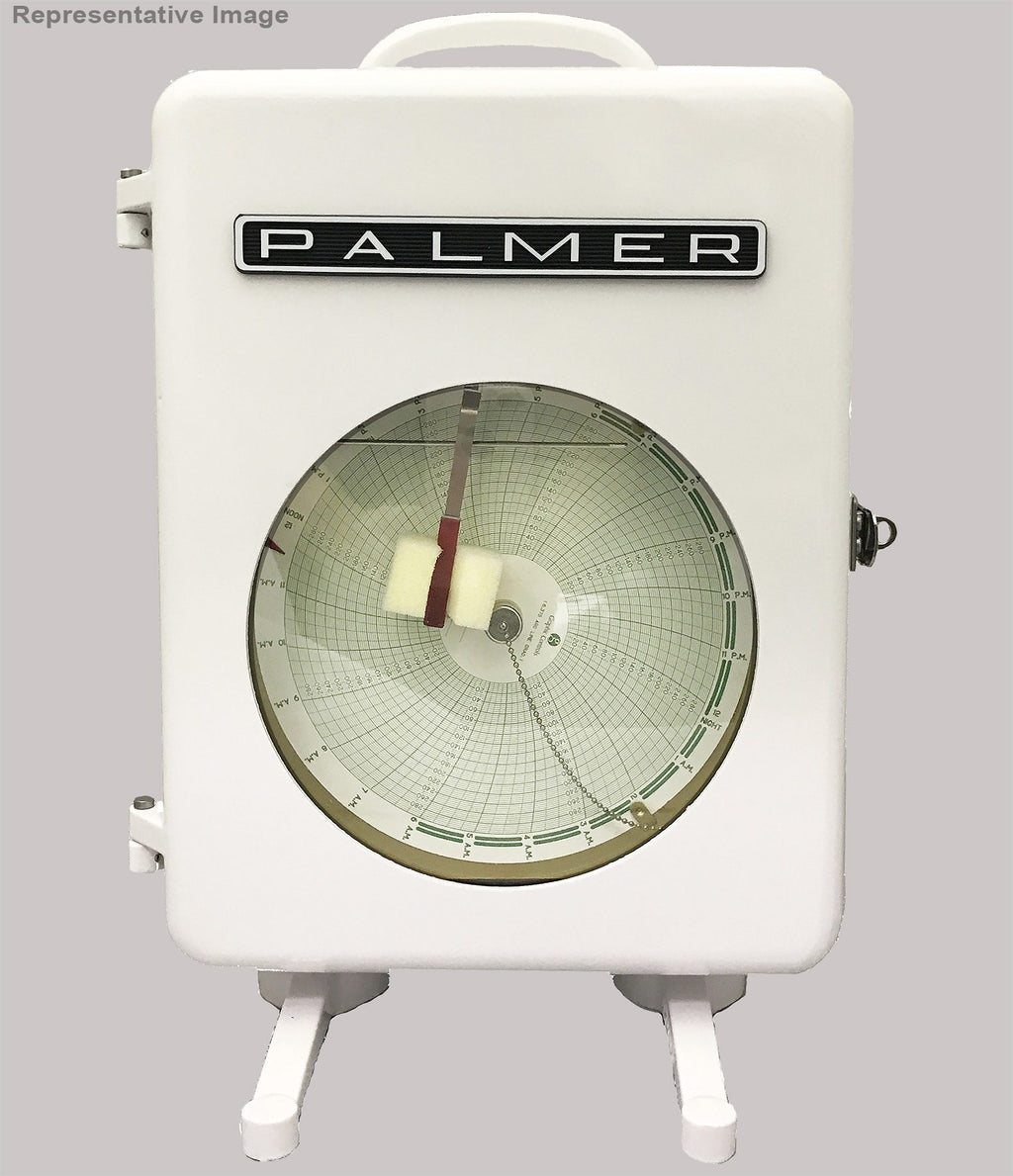

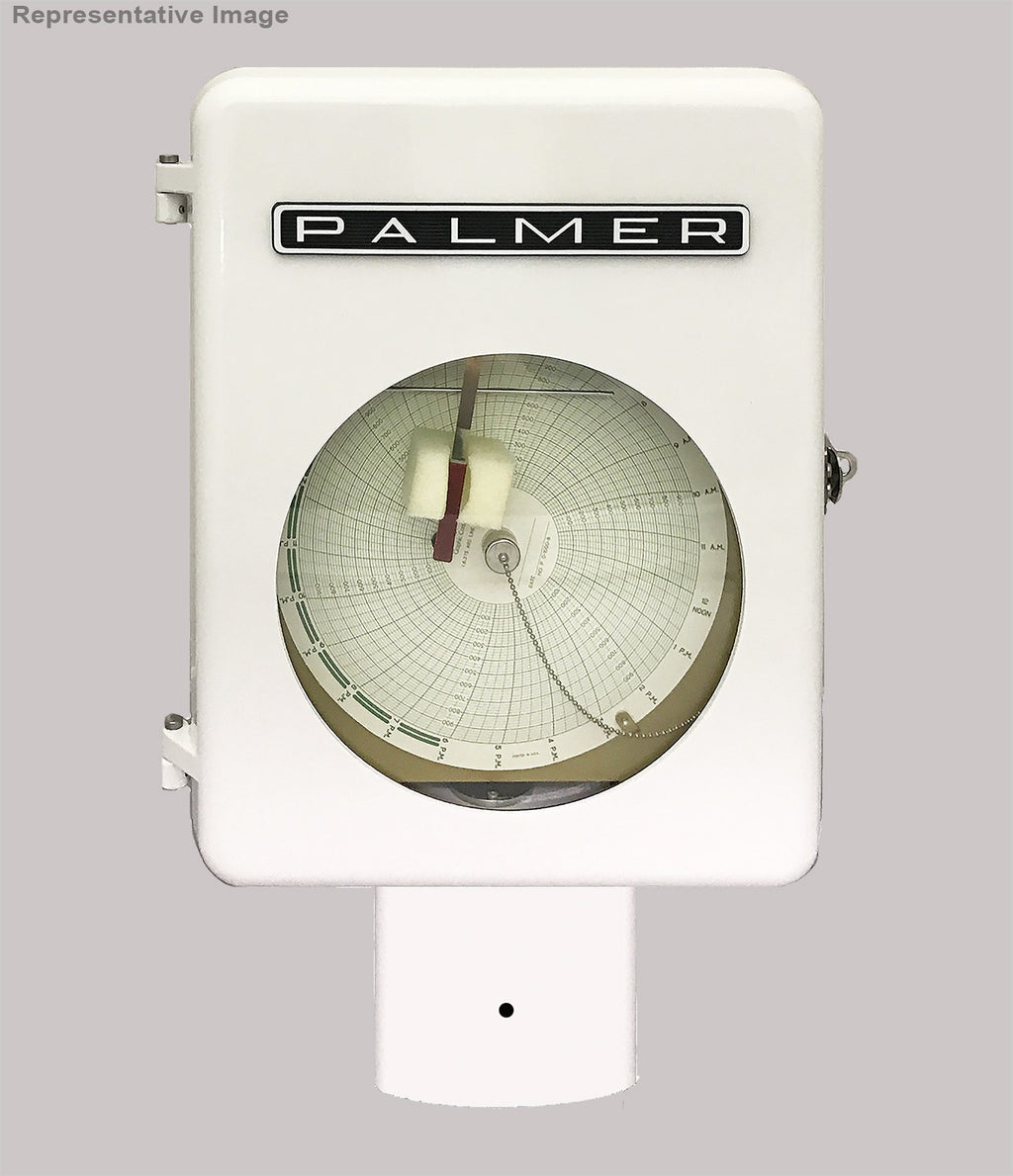

The Palmer Wahl 18_12_Recorder is a fully mechanical pressure circular chart recorder in a heavy, all-welded die-cast aluminium case, built for 8 in or 12 in charts. It carries one, two or three pens, each driven by a field-replaceable 316 stainless steel pressure element, and offers five case mounting styles. The weatherproof case has a lockable, weatherstripped door, screened vents and stainless internals to cope with outdoor vibration. Each unit is made to order in Asheville, North Carolina.
Key features
- Pressure ranges from 0-1 psi to 0-30,000 psi, plus inHg, inH2O, oz/in², kPa and bar scales
- Bellows to 30 psi, helical coil to 10,000 psi, Bourdon tube above 10,000 psi

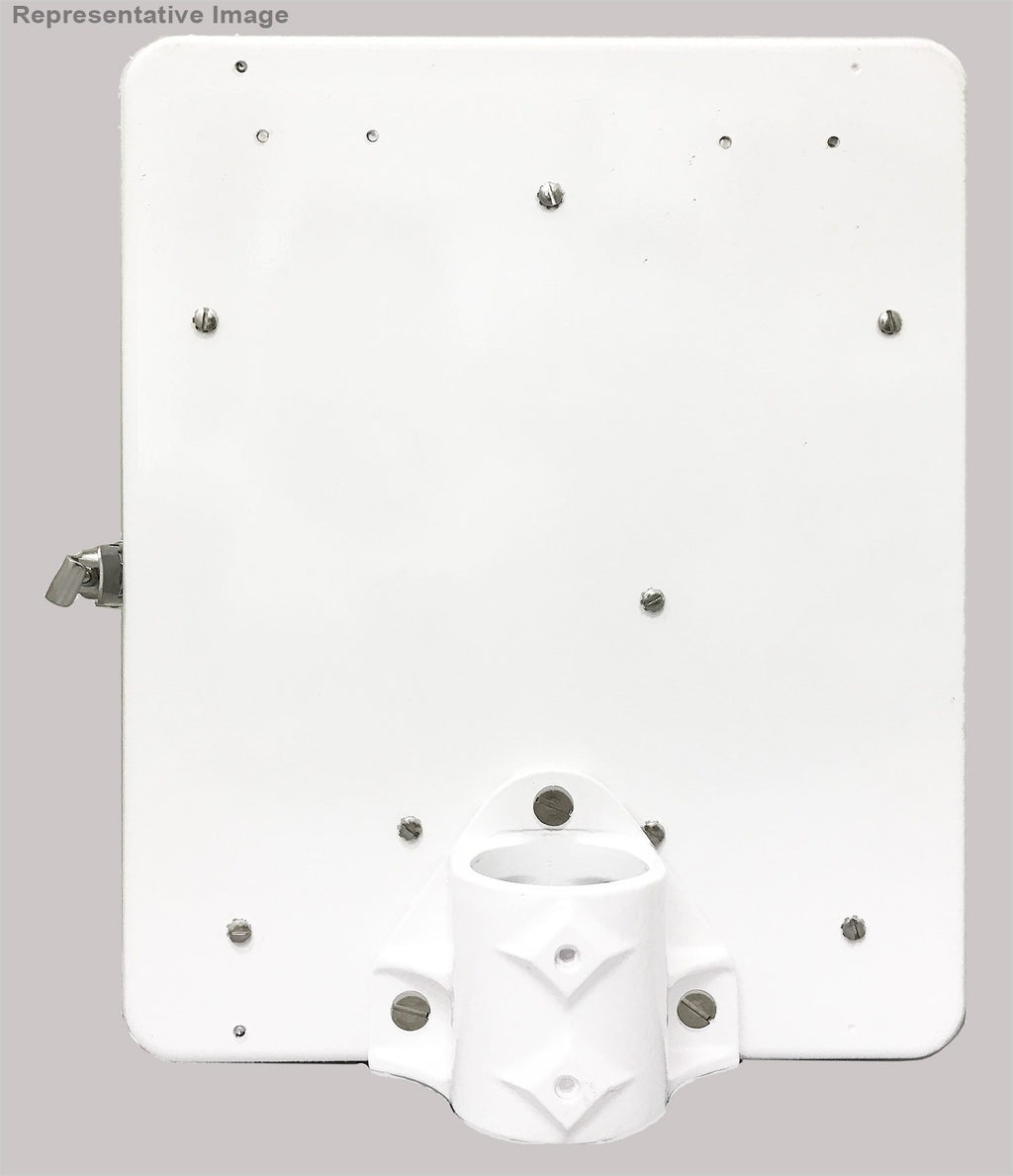

- Wall, flush (8 in only), pipestand, portable or pedestal mounting

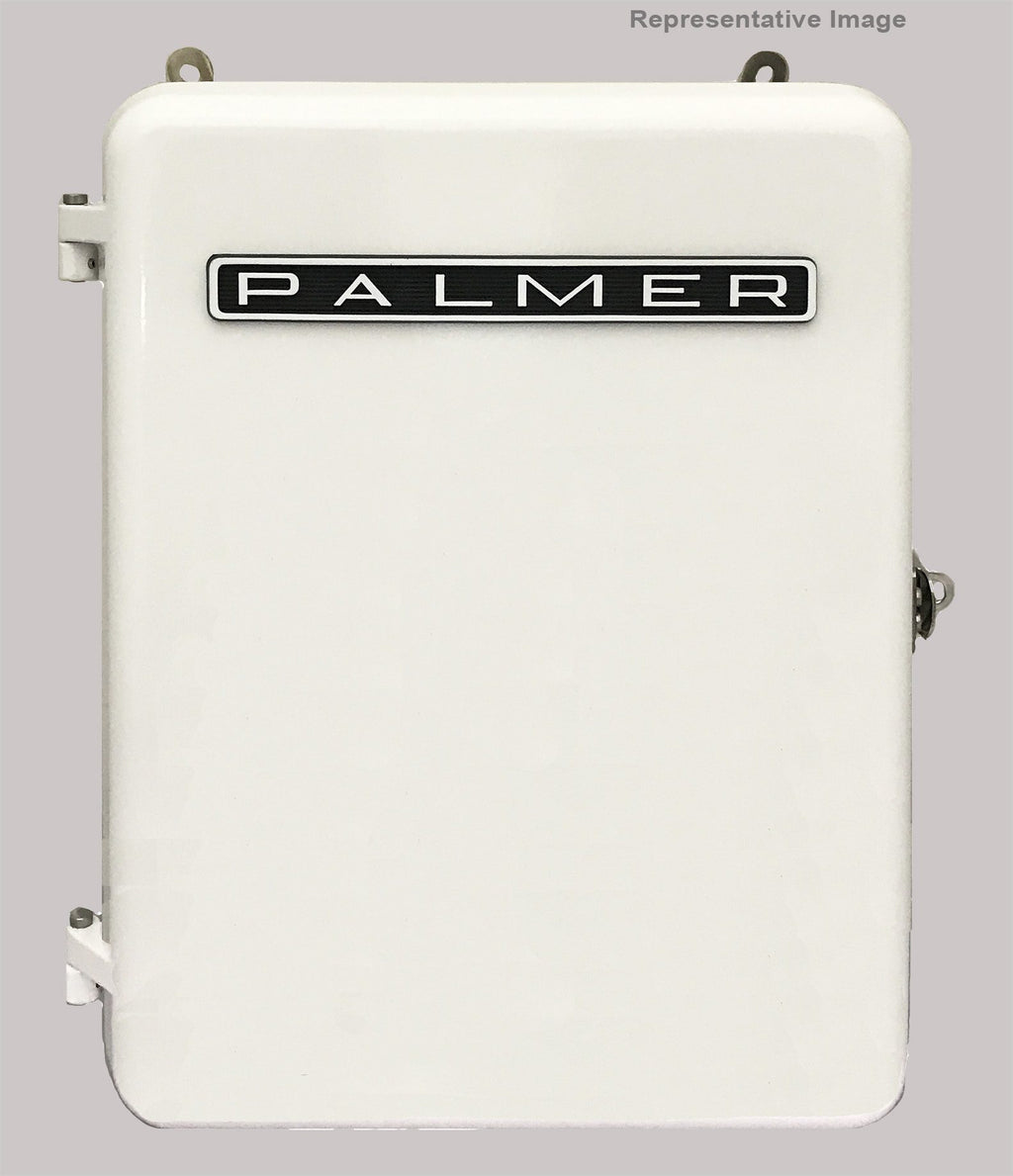

- Glass, plexiglass, safety glass or solid door
- PC-11 or PC-12 C-cell battery drives, 30 minutes to 32 days
Configured to order: ranges, chart speed and options are chosen from the order guide.
For pricing, please contact our experts.
