Palmer Wahl Needle_Valves | Gauge Needle Valves | 1/4 in NPT, up to 6,000 psi
Part Number : Needle_Valves

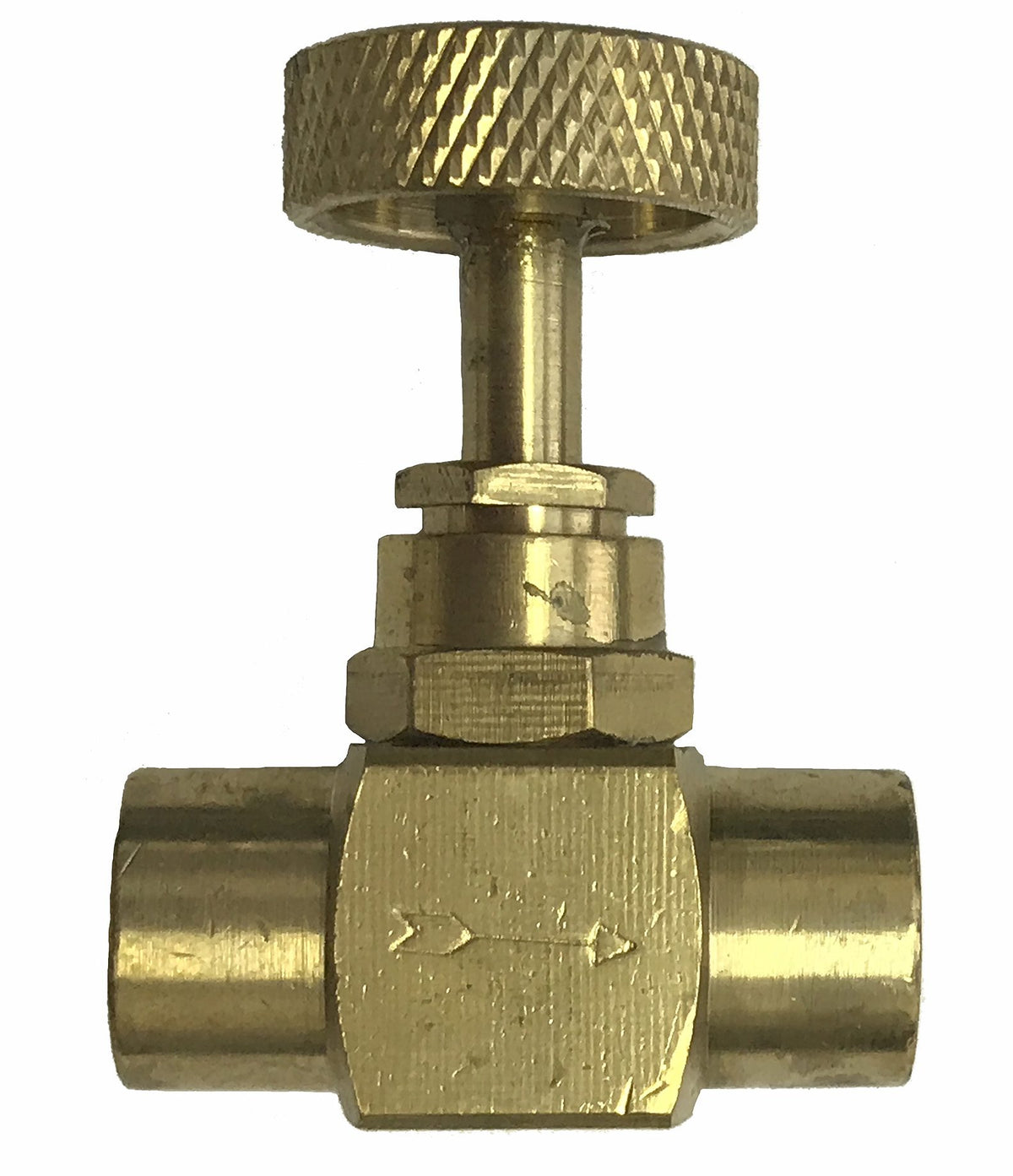

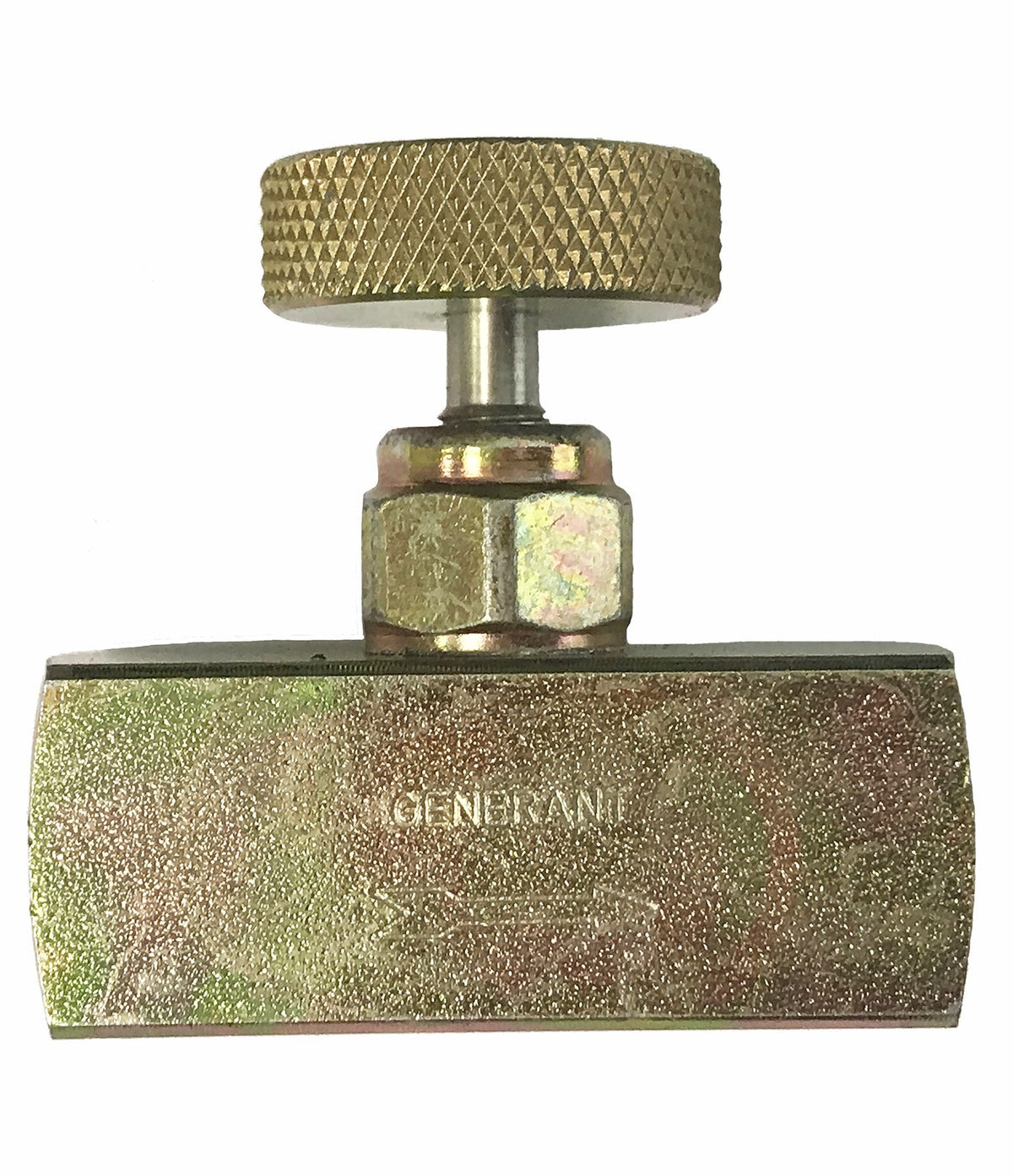

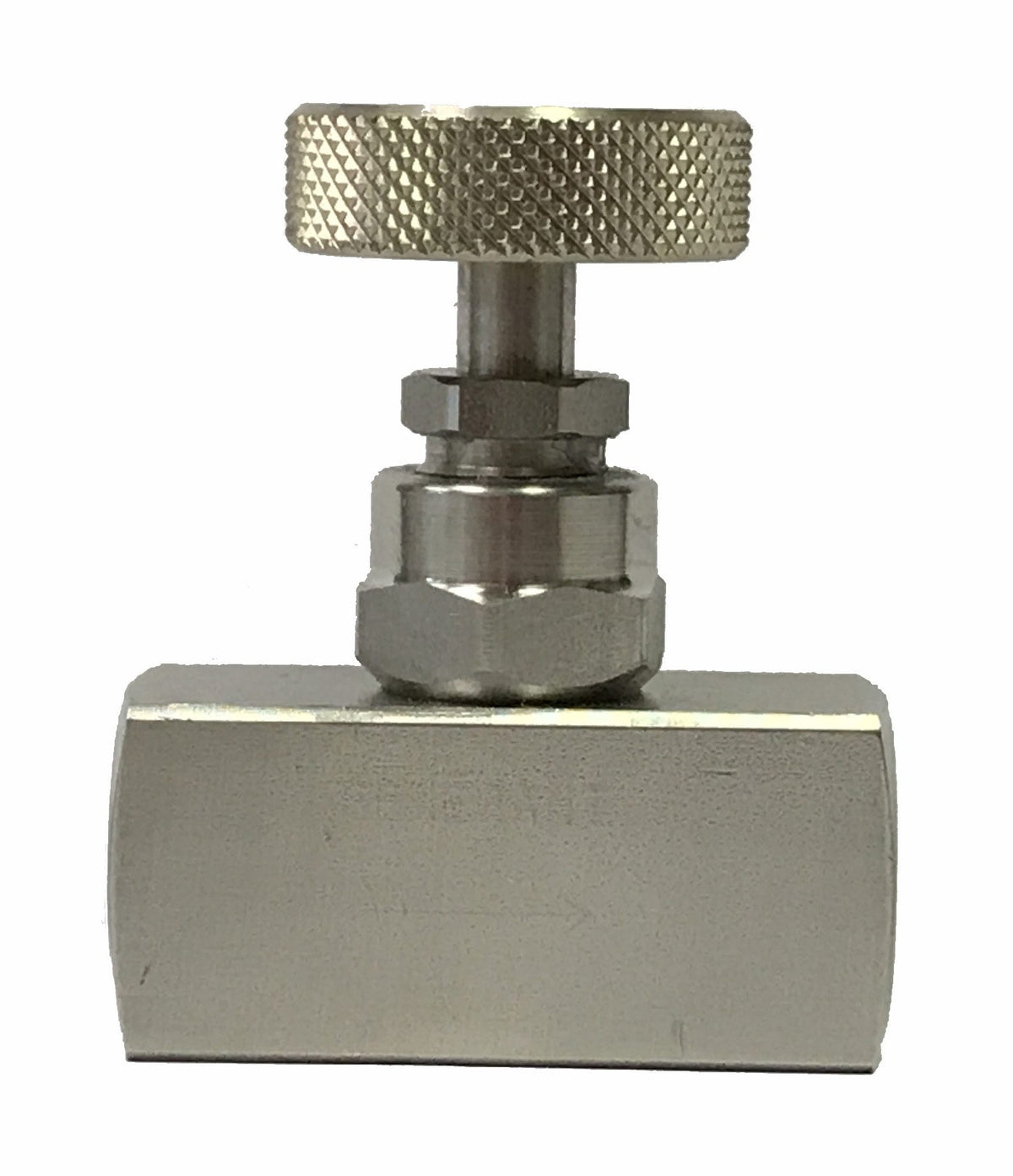

Palmer Wahl needle valves give precise regulation of flow, either shutting off a pressure gauge or holding a steady flow rate. Brass valves with a hard seat are rated to 3,000 psi at 100 °F, while carbon steel valves with a chromate finish and soft seat are rated to 6,000 psi at 200 °F. Both have female-female 1/4 in NPT connections and a screwed bonnet.
Key features
- Externally adjustable, wear-compensating virgin PTFE stem packing
- Screwed bonnet design
- Temperature rating -65 to 200 °F (-54 to 93 °C)
- Flow coefficient 0.40 Cv (globe/angle) or 0.90 Cv (block)
For pricing, please contact our experts.
