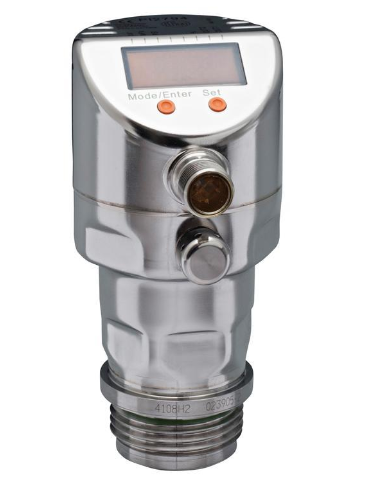

ifm PI2795 | Pressure Sensor | 20-32 DC V
The ifm PI2795 is a pressure sensor with output function normally open / closed; (configurable), electrical design PNP/NPN and operating voltage 20-32 DC V. ifm lists robust stainless steel housing for use in the food and beverage industry, hygienic, flush design and resistant to high-pressure cleaning with aggressive cleaning agents among its features.
- Ambient temperature: 25 °C to 80 °C
- Current consumption: 3.6-21
- Electrical design: PNP/NPN
- Operating voltage: 20-32 DC V
- Output function: normally open / closed; (configurable)
- Overload protection: yes
- Reverse polarity protection: yes
- Short-circuit protection: yes
- Specifications
- Features
- Downloads
| Ambient Temperature | -25 °C to 80 °C (-13 to 176 °F) |
| Current Consumption [mA] | 3.6-21 |
| Electrical Design | PNP/NPN |
| Operating Voltage [V] | 20-32 DC V |
| Output Function | normally open / closed; (configurable) |
| Overload Protection | yes |
| Reverse Polarity Protection | yes |
| Short-circuit Protection | yes |
| Switching Frequency DC [Hz] | 125 Hz |
| System | gold-plated contacts |
- Robust stainless steel housing for use in the food and beverage industry
- Hygienic, flush design
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High temperature resistance and high protection rating
- Programmable analog and switching output
