Ralston LC10-VH2M | Digital Pressure Gauge

Name: Ralston LC10-VH2M | Digital Pressure Gauge
Brand: Ralston
SKU: LC10-VH2M
Availability: OutOfStock

Part Number : LC10-VH2M

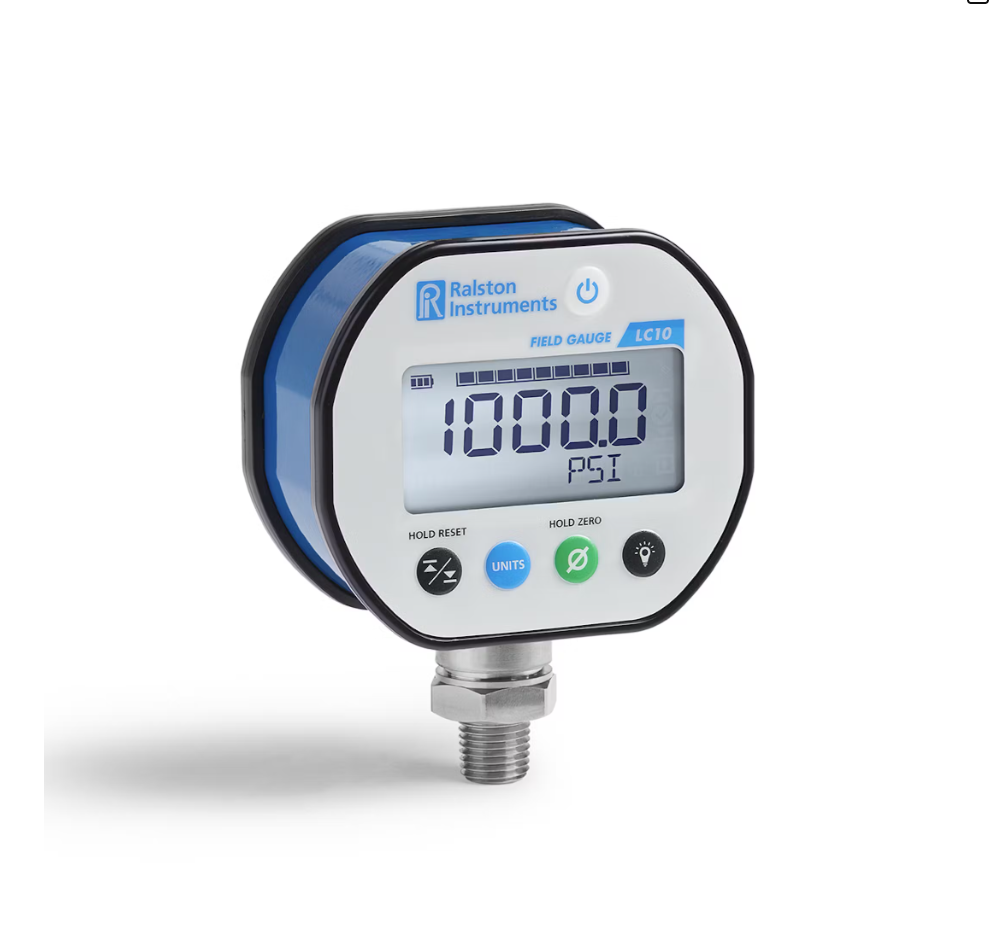

The Ralston LC10-VH2M is a digital pressure gauge with connection End 1 Connector 1/4" Male NPT (ASME B1.20.1), 2.4 in / 61 mm segmented LCD Display and battery life 1500 Hours.

Battery Life: 1500 Hours
Battery type: AA Alkaline (IEC-LR6)
Connection: End 1 Connector 1/4" Male NPT (ASME B1.20.1)
Display: 2.4 in / 61 mm segmented LCD Display
Height: 4.1 in / 11 cm
Length: 1.75 in / 45 mm
Material: ABS / Polycarbonate Blend, Powder Coated Aluminum
Maximum operating temperature: 122 °F / 50 °C

Availability: in stock

Free Kuwait shipping available

Specifications
Features
Downloads

Battery Life	1500 Hours
Battery type	AA Alkaline (IEC-LR6)
Connection	End 1 Connector 1/4" Male NPT (ASME B1.20.1)
Display	2.4 in / 61 mm segmented LCD Display
Height	4.1 in / 11 cm
Length	1.75 in / 45 mm
Material	ABS / Polycarbonate Blend, Powder Coated Aluminum
Maximum operating temperature	122 °F / 50 °C
Minimum Operating Temperature	-4 °F / -20 °C
Protection	IP67 (1 meter water submersion for 30 minutes)
Relative Humidity	0% to 90% (-10 to 35°C), 0% to 70% (35 to 50°C)
Sensor Type	High Precision MEMS
Technical Data	Sensor A Bottom Wrench Size 7/8 In / 23 mm Burst Pressure 200 PSI / 14 bar / 1.40 MPa Min Storage Temperature -40 °F / -40 °C Max Pressure 50 PSI / 3.5 bar / 350 kPa Measurement Type Gauge Pressure Max Storage Temperature 167 °F / 75 °C Max Operating Temperature 122 °F / 50 °C Sensor Type Pressure Sensor Process Connection 1/4" Male NPT Max Vacuum 30 InHg / 101.6 kPa Min Operating Temperature -4 °F / -20 °C
Weight	12.6 oz / 355 grams
Width	3.4 in / 87 mm

Included Items

USB-A to Micro USB-B cable, 2m long

D-000040
