Ralston LC20-GZ2H-00-B1 | Digital Pressure Gauge

Name: Ralston LC20-GZ2H-00-B1 | Digital Pressure Gauge
Brand: Ralston
SKU: LC20-GZ2H-00-B1
Availability: OutOfStock

Part Number : LC20-GZ2H-00-B1

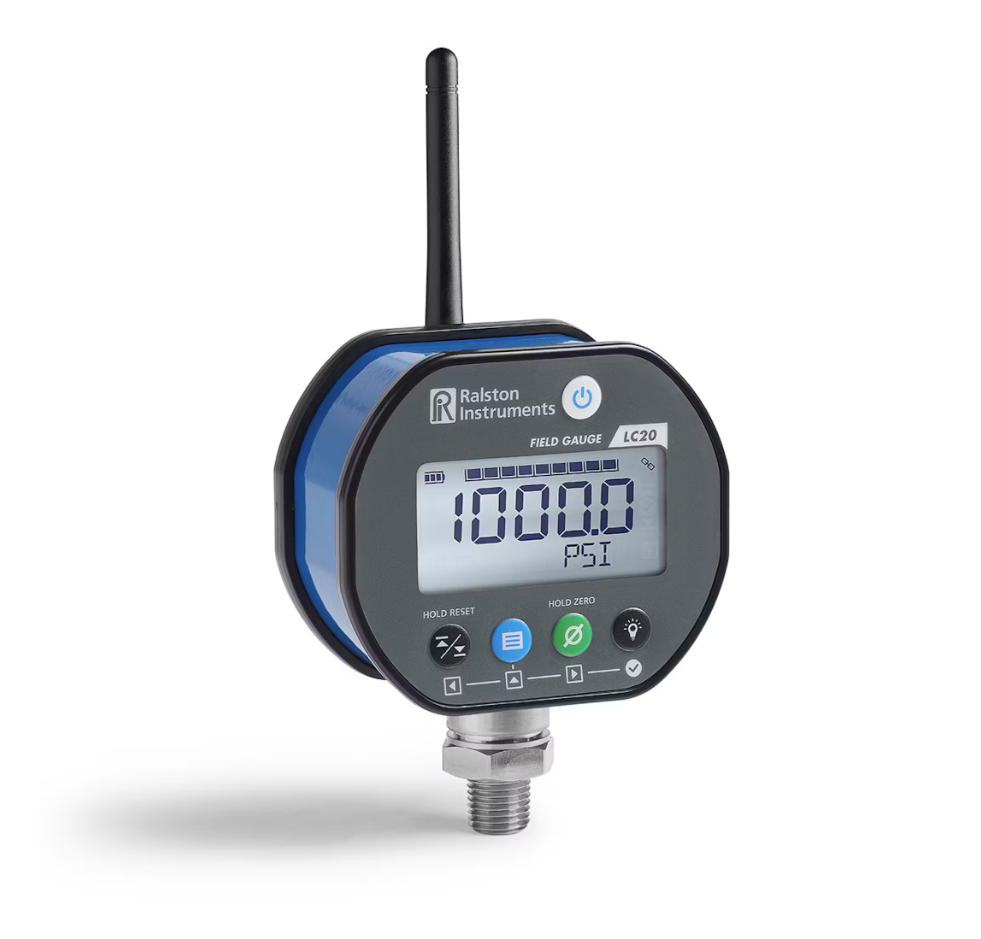

The Ralston LC20-GZ2H-00-B1 is a digital pressure gauge with Process Connection Location Bottom mount, 2.4 in / 61 mm segmented LCD Display and battery life 1000 Hours.

Battery Life: 1000 Hours
Battery type: AA Alkaline (IEC-LR6)
Connection: Process Connection Location Bottom mount
Display: 2.4 in / 61 mm segmented LCD Display
Height: 4.1 in / 11 cm
Length: 1.75 in / 45 mm
Material: ABS / Polycarbonate Blend, Powder Coated Aluminum
Maximum operating temperature: 122 °F / 50 °C

Availability: in stock

Free Kuwait shipping available

Specifications
Features
Downloads

Battery Life	1000 Hours
Battery type	AA Alkaline (IEC-LR6)
Connection	End 1 Connector 1/4" Male NPT (ASME B1.20.1) End 2 Connector 9/16-18 (1/4" HF4) Female High Pressure
Connection	Process Connection Location Bottom mount
Display	2.4 in / 61 mm segmented LCD Display
Height	4.1 in / 11 cm
Length	1.75 in / 45 mm
Material	ABS / Polycarbonate Blend, Powder Coated Aluminum
Maximum operating temperature	122 °F / 50 °C
Minimum Operating Temperature	-4 °F / -20 °C
Protection	IP67 (1 meter water submersion for 30 minutes)
Technical Data	Sensor A Bottom Max Storage Temperature 167 °F / 75 °C Min Storage Temperature -40 °F / -40 °C Burst Pressure 120000 PSI / 8275 bar / 830 MPa Max Operating Temperature 122 °F / 50 °C Min Operating Temperature -4 °F / -20 °C Wrench Size 7/8 In / 23 mm Measurement Type Gauge Pressure Max Pressure 30000 PSI / 2070 bar / 205 MPa Wetted Materials 17-4 Stainless Steel Materials Stainless Steel Sensor Type Pressure Sensor Process Connection 9/16-20 Female High Pressure (1/"4 HP) Max Vacuum 0 InHg / 0.0 kPa
Weight	12.6 oz / 355 grams
Width	3.4 in / 87 mm

Included Items

USB-A to Micro USB-B cable, 2m long

D-000040

Tilt Antenna for LC20 and LC30 devices with Bluetooth Radios

D-000041
