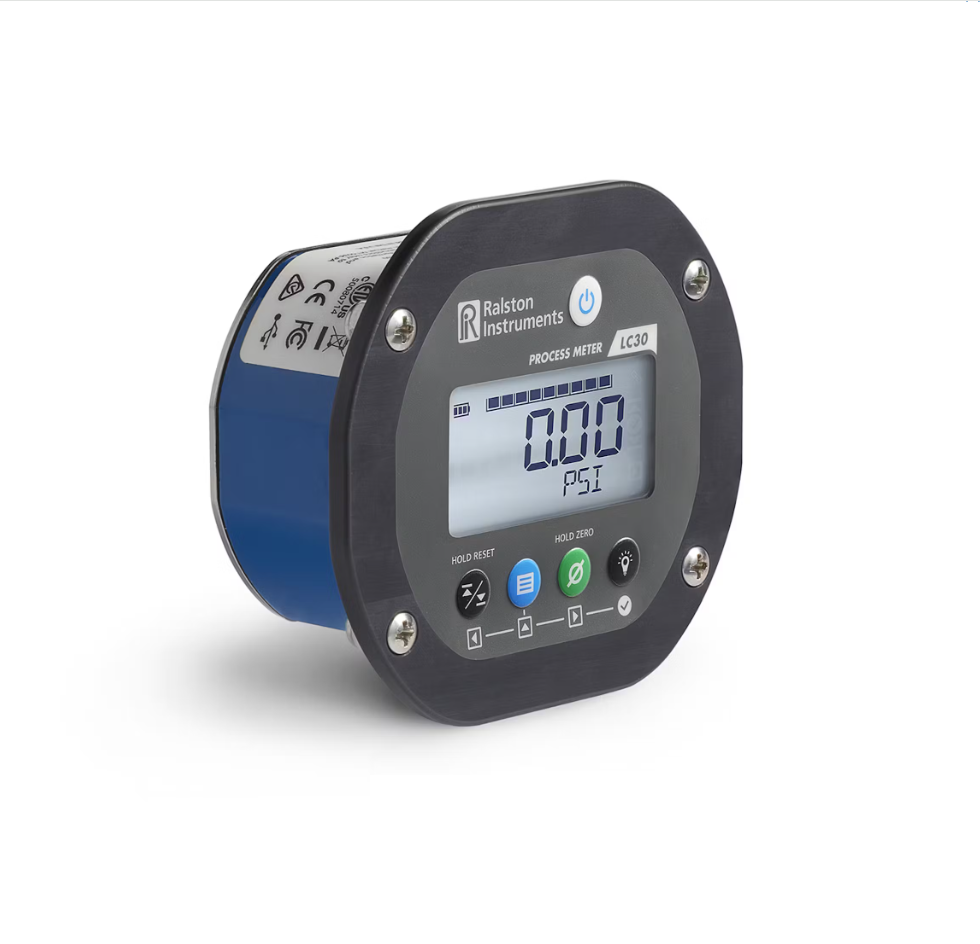

Ralston LC30-VN2M-00-00 | Digital Pressure Gauge

Name: Ralston LC30-VN2M-00-00 | Digital Pressure Gauge
Brand: Ralston
SKU: LC30-VN2M-00-00
Availability: OutOfStock

Part Number : LC30-VN2M-00-00

The Ralston LC30-VN2M-00-00 is a digital pressure gauge with connection End 1 Connector 1/4" Male NPT (ASME B1.20.1), 2.4 in / 61 mm segmented LCD Display and battery life 1000 Hours.

Battery Life: 1000 Hours
Battery type: AAA Alkaline (IEC-LR03)
Connection: End 1 Connector 1/4" Male NPT (ASME B1.20.1)
Connection: Process Connection Location Back mount
Display: 2.4 in / 61 mm segmented LCD Display
Height: 4.1 in / 11 cm
Length: 1.75 in / 45 mm
Maximum operating temperature: 122 °F / 50 °C

Availability: in stock

Free Kuwait shipping available

Specifications
Features
Downloads

Battery Life	1000 Hours
Battery type	AAA Alkaline (IEC-LR03)
Connection	End 1 Connector 1/4" Male NPT (ASME B1.20.1)
Connection	Process Connection Location Back mount
Display	2.4 in / 61 mm segmented LCD Display
Height	4.1 in / 11 cm
Length	1.75 in / 45 mm
Maximum operating temperature	122 °F / 50 °C
Minimum Operating Temperature	-4 °F / -20 °C
Power	90-264 VAC, 50-60 Hz
Protection	IP67 (1 meter water submersion for 30 minutes)
Relative Humidity	0% to 90% (-10 to 35°C), 0% to 70% (35 to 50°C)
Technical Data	Sensor A Back Sensor Type Pressure Sensor Max Vacuum 30 InHg / 101.6 kPa Max Operating Temperature 122 °F / 50 °C Wrench Size 23 mm / 7/8 in Burst Pressure 2000 PSI / 140 bar / 14 MPa Max Storage Temperature 167 °F / 75 °C Max Pressure 500 PSI / 35 bar / 3.50 MPa Min Storage Temperature -40 °F / -40 °C Process Connection 1/4" Male NPT Wrench Size 7/8 In / 23 mm Min Operating Temperature -4 °F / -20 °C Measurement Type Gauge Pressure Wetted Materials 316 Stainless Steel
Weight	12.6 oz / 355 grams
Width	3.4 in / 87 mm

Included Items

USB-A to Micro USB-B cable, 2m long

D-000040

AC-DC Adapter for LC Gauges, USB type A, 5 country plugs

D-000410
