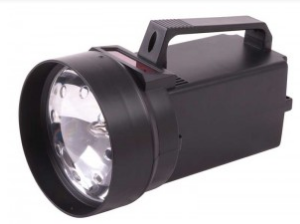

REED K4020-230V | Digital Stroboscope, 230V | 100-10,000 RPM
For 230VAC (50/60 Hz) supplies, the REED K4020-230V stroboscope gives non-contact speed measurement of rotating parts by visually freezing their motion. Flash rate is set between 100 and 10,000 RPM.
- Xenon bulb light source
- 4-digit LED readout
- Mounts on a tripod
- Samples once per second
- 201 x 120 x 120 mm
- Specifications
- Features
- Downloads
| Part Number | K4020-230V |
| Brand | REED |
| Operating Temperature | 32 to 122 °F (0 to 50 °C) |
| Storage Temperature | -4 to 140 °F (-20 to 60 °C) |
| Sampling Time | 1x/sec |
| Weight | 2.2lbs (1 kg) |
| Response Time | <1 sec |
| Power Supply | 230VAC, 50/60 Hz |
| Dimensions | 8.3 x 4.8 x 4.8" (201 x 120 x 120 mm) |
| Product Certifications | CE |
| Display Size/Type | 4 Digit LED Display |
| Flash Rate | 100 to 10,000 RPM |
| Light Source | Xenon bulb |
| Tripod Mount | Yes |
- Simply aim the instrument at the rotational object and synchronize the strobe's flash rate (FPM) with object speed (RPM)
- Basic accuracy of ±0.05%
- 4-digit LED display
- 5 to 30 minute duty cycle (RPM dependent)
- Tripod mount for stationary use
- 6 foot power cord
Other models in this series
Click a row to open that product.
Related Products
REED K4020 | Digital Stroboscope, 110V | 100-10,000 RPM
REED K4020 | Digital Stroboscope, 110V | 100-10,000 RPM

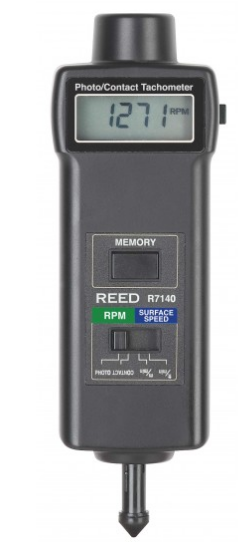

REED R7140 | Combination Contact / Photo Tachometer | 300 mm Photo, m/min and ft/min
REED R7140 | Combination Contact / Photo Tachometer | 300 mm Photo, m/min and ft/min

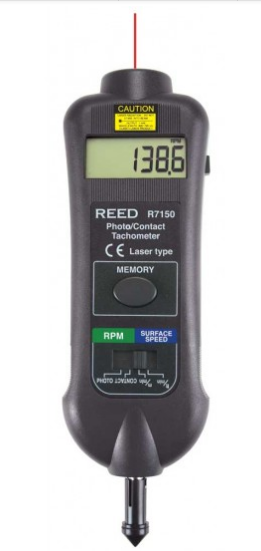

REED R7150 | Professional Contact / Laser Photo Tachometer | 2000 mm Laser Range
REED R7150 | Professional Contact / Laser Photo Tachometer | 2000 mm Laser Range
REED R7050 | Compact Photo Tachometer and Counter | Laser, 500 mm Target Distance
REED R7050 | Compact Photo Tachometer and Counter | Laser, 500 mm Target Distance
REED R7100 | Combination Contact / Laser Photo Tachometer | RPM and m/min, 500 mm
REED R7100 | Combination Contact / Laser Photo Tachometer | RPM and m/min, 500 mm
Dwyer NISTCAL-EL1 | Portable Digital Tachometer (NIST) | Laser and Contact, 2.5-99,999 RPM
Dwyer NISTCAL-EL1 | Portable Digital Tachometer (NIST) | Laser and Contact, 2.5-99,999 RPM

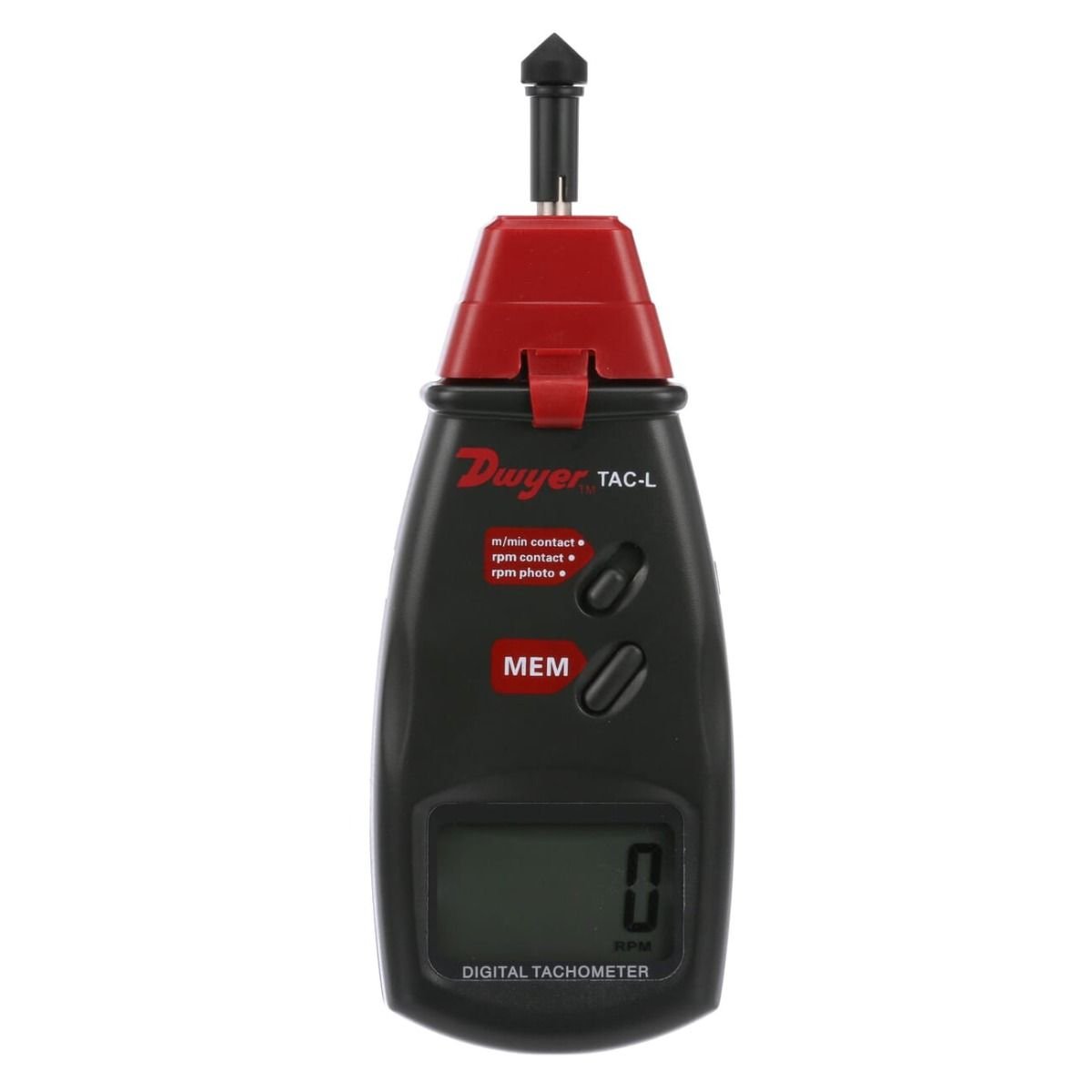

Dwyer TAC-L | Contact/Non-Contact Digital Tachometer | 2.5-99,999 RPM Laser, 0.5-19,999 RPM Contact
Dwyer TAC-L | Contact/Non-Contact Digital Tachometer | 2.5-99,999 RPM Laser, 0.5-19,999 RPM Contact

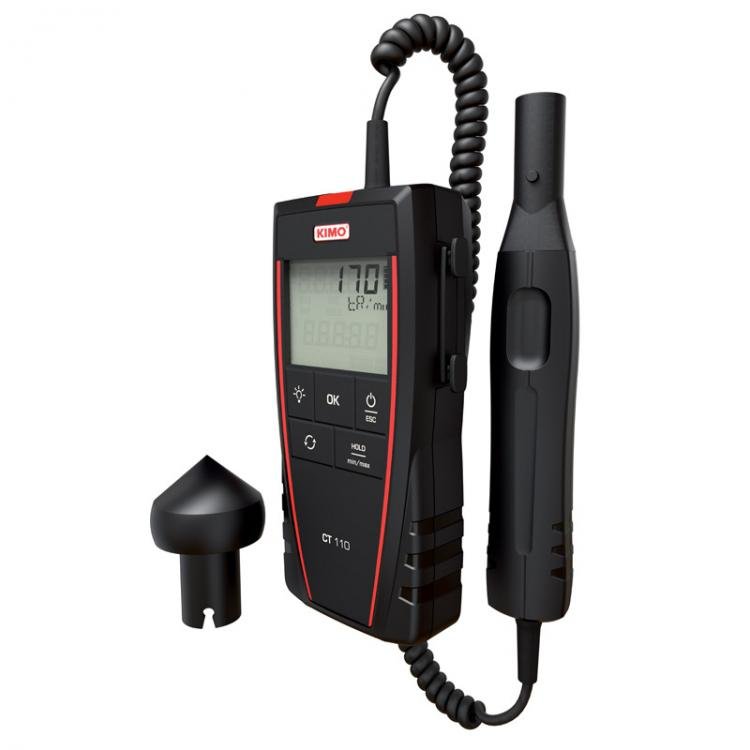

Sauermann CT 110 | Tachometers | 4-line display
