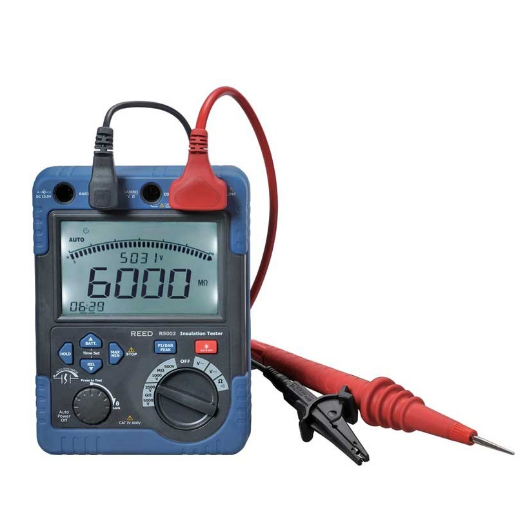

REED R5002 High Voltage Insulation Tester

Name: REED R5002 High Voltage Insulation Tester
Brand: REED Instruments
SKU: R5002
Availability: OutOfStock

Part Number : R5002

This high voltage insulation tester is capable or testing voltages up to 5000V and measures insulation resistance up to 60GΩ. The R5002 performs a spot insulation test by applying a regulated and stabilized voltage to measure the amount of flowing current and then calculates resistance in order to evaluate insulation integrity.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Auto shut-off	Yes (after 20 minutes)
Backlit Display	Yes
Dimensions	7.8 x 5.8 x 3.4
Display	6000 count LCD display with bargraph
Low Battery Indicator	Yes
Max/Min	Yes
Operating Temperature	32 to 104°F (0 to 40°C)
Power Supply	8 C Batteries or AC Adapter (included)
Product Certifications	CE
Sampling Rate	2.5 times/sec.
Storage Temperature	-4 to 140°F (-20 to 60°C)
Weight	3lbs (1.5kg)

Test Voltages of 500V, 1000V, 2500V, and 5000V
Measure Insulation Resistance to 60GΩ
Backlit LCD display with analog bargraph
Timer function for insulation resistance measurements (1 to 15min)
AC/DC Voltage from 0 to 600V with Max/Min, peak and relative functions
Polarization index measurement (PI)
Dielectric absorption ratio measurements (DAR)
Max/Min, Peak, Relative value and Data Hold functions
Cat. IV 600V safety rating
Low battery indicator and auto shut off
